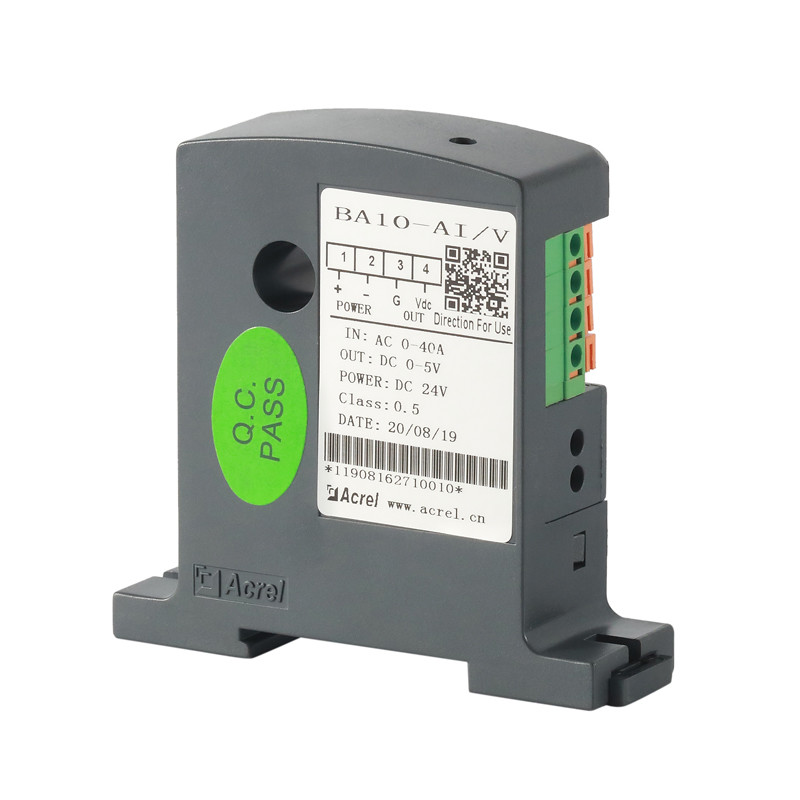

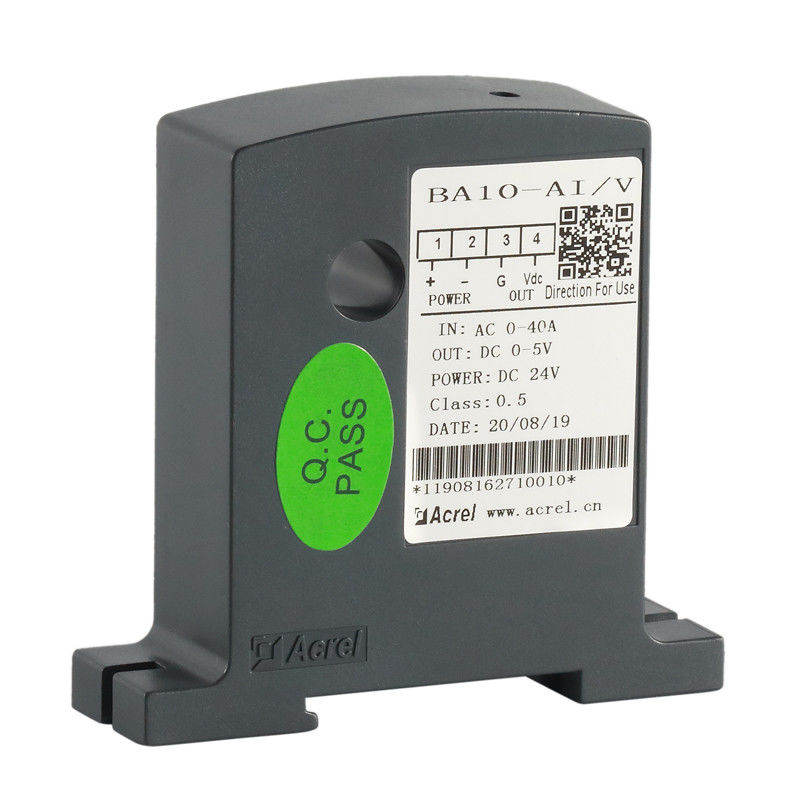

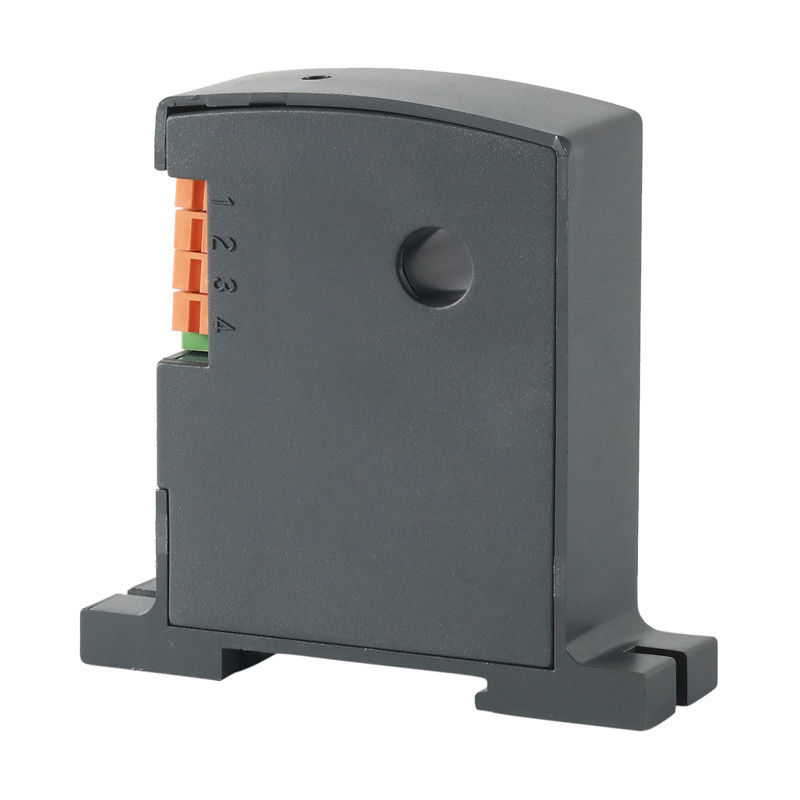

BA10-AI/V Current Transducer

Minimum Order Quantity :	1 pcs	Price :	USD 31-67/pcs
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	BA10-AI/V

Detail Information
Auxiliary Power:	DC 12V/DC 24V	Comsumption:	≤1W
Through Hole Size:	φ5mm-50mm	Output Current:	DC 4-20mA 0-20mA 0-5V 0-10Vetc
Accuracy Class:	0.5%	Ronsponse Time:	≤350ms
Temperature Coefficient:	≤200ppm/℃	Standards:	GB/T 13850

Product Description

BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.

Technical Features

Technical parameter		ADL100-EY
Voltage	Reference voltage	3*220/380V
	Reference frequency	50Hz
	Consumption	<4VA(Each phase)
Current	Input Current	1(6)A,10(80)A
	Starting Current	Connect directly: 0.004 Ib, connect via CT: 0.002In
	Consumption	<4VA
Measurement performance	Accuracy of measuring	0.5Class
Clock accuracy		Error ≤0.5s/d
Active pulse	Pulse width	80ms±20ms
Active pulse	Pulse constant	6400imp/kWh,400imp/kWh
Communication	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Quotation

BA10-AI/V Current Transducer 0
