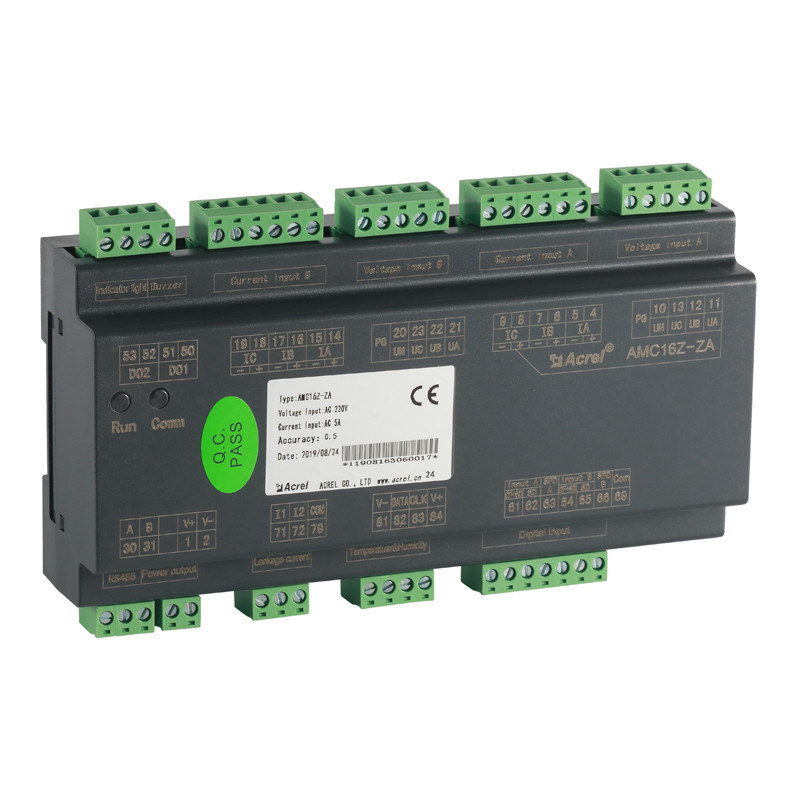

DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA
DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA
DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA
Contact Now

DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA

Minimum Order Quantity : 1 Price : USD 88-266 PCS
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 2000000 per year
Place of Origin: Jiangsu, China Brand Name: Acrel
Certification: ISO/CE Model Number: AMC16Z

Detail Information
High Light:

DC12V Multi Circuit Energy Meter

,

DIN35mm Multi Circuit Energy Meter

,

DIN35mm multi circuit power meter

Product Description

AMC16Z-ZA Data Center Monitor Device

● Designed specifically for the power supply management of server in the data center

● A+B independent 2 channels three-phase inlet

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-63rd Harmonic



Characteristic

DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA 0



Communication

RS485 (Modbus-RTU)

DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA 1



Multi-circuit

A+B independent 2 circuits

DC12V output

DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA 2



Rated U and I

AC 220/380V



FUNCTION
* A+B independent 2 circuits three-phase main line bus bar’s voltage, current, active power, reactive power, apparent power, power
factor, active power, reactive power, zero ground voltage, midline current, 2-63 harmonics of voltage and current
* 6 passive switching input
* 2 switching output
* 1 RS485 communication

Installation
DIN 35mm



Dimension(L*W*H)
180*94.3*45mm


Technical parameters

Voltage
Rated voltage
220V
Range
40~400V AC
Overload
2 times lasting 1 second(instantaneous)
Current
CT
XXA/5A
Range
0~120%
Overload
1.2 times(continuous),10 times lasting 1s(instantaneous)
Accuracy
Class 0.2(U/I)m Class 0.5(P/EP),Class 1(Q/EQ)
Frequency
45~65Hz
Auxiliary power supply
AC 85~265V/DC 100-350V
Insulation resistance
1000MΩ
Switch output
2 channels(3A 250VAC/3A 30VDC)
Switch input
6 channels
Communication
RS485(Modbus-RTU)
Installation
Din rail 35mm



Wiring



DC12V output DIN35mm Multi Circuit Energy Meter AMC16Z-ZA 3
