4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I

Minimum Order Quantity : 1 Piece Price : $30.80 / Piece
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: BA50-AI/I

Detail Information

Usage: Electricity Transmitter Theory: Current Sensor
Output: Digital Sensor, DC4-20mA Or DC0-20mA Power Supply: DC24V Or DC12V
Input Current: AC 0~(60-600)A Through Size: 50mm
Accuracy: 0.5 Selling Units: Single Item
Single Package Size : 17X15X13 Cm Single Gross Weight: 0.900 Kg
Package Type: Paper Carton
High Light:

50mm Electric Current Transducers

,

50mm AC current transducer

,

20mA Electric Current Transducers

Product Description

BA series AC current sensor

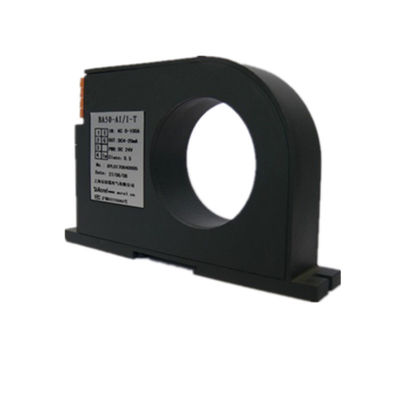

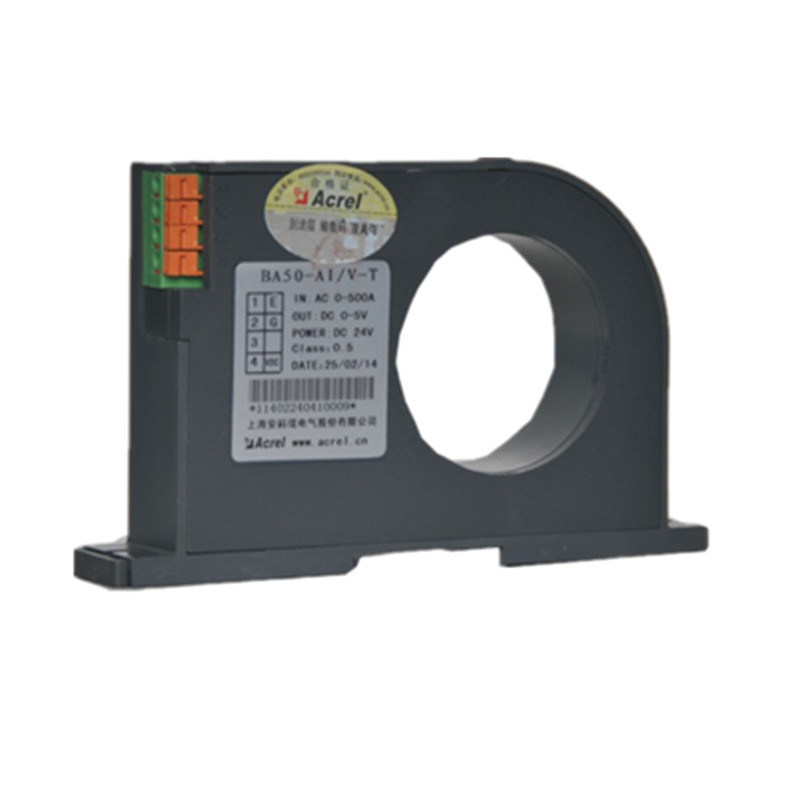

4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 0

General

BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal. They adopt the 24V or 12V power supply. They feature the large overload capacity,high accuracy,isolation and safety and low power consumption.Application cover the industrial automation sector.

BA series residual current sensors are designed to monitor the electric leakage and detect the insulation of electrical circuit or electrical equipment in order to avoid accidents arising from reduction of insulation performance of electrical circuit or electrical equipment.The product complies with GB/T13850-1998 and GB1208-2006.

Explanation for type

4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 1

Note: BA50L-AI/I(V): alternating residual current sensor

Technical data

Technical parameters Index
Input signal BA50-AI/I measuring range AC0~(60-600)A
Output Nominal value DC4-20mA or DC0-20mA
Overload protection Max.output≤135% of full scale
Load resistance when current output:(supply voltage-4/0.02)Ω
Ripple component AC component of the output signal≤1% of full scale
Power supply

DC24V allowed range 18~30V

DC12V allowed range 10~15V

Power consumption ≤1W
Dielectric strength Power frequency withstans voltage 2000VAC between input/output and power supply
  Pricision degree 0.5
Temperature drift coefficient ≤200ppm
Response time Average≤350mS
Installation method TS35mm guide installation,or screw in cabinet
Ambient conditions Temperature

Operating temperature:-25℃~+70℃

Storage temperature:-40℃~+85℃

Humidity ≤90%RH,no dew,no aggressive gas
Altitude  ≤2500m



Shape and hole size

The shape and hole size of BA50 current transformer.

4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 2

Type Outline size(mm)
W H φ M N L
BA50-AI/I 35 84 50 125 135 24



Example of Wiring

As shown in the figure,the input is lac.The output of current output sensor is the current source with common GND while the output of voltage output sensor is the voltage source with common GND.In this example,RL is the user load.If the output is current,the load is up to 400Ω(with 12V power supply) or 800Ω(with 24V power supply). If the output is voltage,the load is 1kΩ or above.

4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 3

    4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 44-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 5



4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 64-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 7

Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.

4-20mA Output 50mm Through AC Electric Current Transducers BA50-AI/I 8

Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
