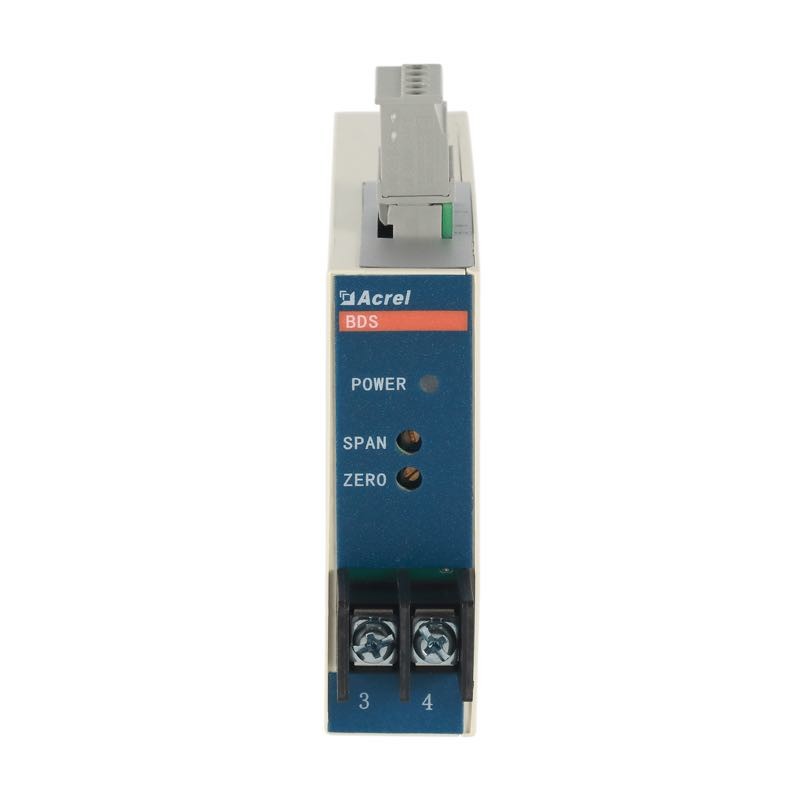

Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output
Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output
Contact Now

Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output

Minimum Order Quantity : 1 Piece Price : $37.10 / Piece
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: BD-AI

Detail Information
Usage: Current Phase: Single
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Current Input: AC0-5A Or 0-1A Output: 0-5V/0-10V/4-20mA/0-20mA
Frequency: 50HZ-60HZ Certificate: CE
Color: White Accuracy: 0.5
Auxiliary Power Supply: AC/DC85-270V, DC24V Selling Units: Single Item
Single Package Size : 17X15X13 Cm Single Gross Weight: 0.800 Kg
Package Type: Paper Carton
High Light:

Electric Current Transducers 4mA

,

AC 5a Electric Current Transducers

,

AC 1a Electric Current Transformer

Product Description

AC Current Transducer

Product Description



Characteristic


General
BD Series transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage
frequency,power,power factor or temperature,resistance and so on non-electrical parameters,into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
Standards
IEC/EN61869-1,IEC/EN61869-2

Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output 0

Model: BD-AI
Input: AC0-5A or 0-1A
Output: DC4-20mA,0-20mA,0-5V,0-10V
Accuracy: Class 0.5
Power supply: AC85-265V / DC24V
Frequency: 45-65Hz





Response time: <400ms
Insulation resistance: ≥100MΩ
Continuous overload: 120%In
Environment:
Operating temperature:-10℃ ~ +55℃
Storage temperature:-25℃ ~ +70℃
Humidity: ≤93%RH
Altitude: ≤2500m
Installation method: TS35mm rail or screw
Quotation
Type
Function

FOB Shanghai (USD)
BD-AI
AC current transducer
Input: AC0-1/5A   Output: 4-20mA or 0-5V

31.8
BD-AV
AC voltage transducer
Input: AC0-100/300/500V Output: 4-20mA or 0-5V

31.8
BD-DI
DC current transducer
Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V

57.4
BD-DI
DC current transducer
Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V

57.4
BD-DV
DC voltage transducer
Input DC0-10V,0-75mV;Output:4-20mA or 0-5V

57.4
BD-3I3
Three phase AC current transducer
Input: AC0-1/5A Output: 4-20mA or 0-5V

84
BD-3(4)V3
Three phase AC voltage transducer
Input: AC0-100/300/500V Output: 4-20mA or 0-5V

84
BD-3(4)P
Three phase AC power transducer
Input: AC0-1/5A, AC0-120/250/450V    Output: 4-20mA or 0-5V

95.2
BD-4E
Measuring I,U,P,Q,F,PF,kWh,Kvarh,etc.
Output: one 4-20mA or 0-5V channel analog output

150.5
Specification
Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output 1



Dimension
Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output 2
Wiring
Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output 3
Packing & Delivery
Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output 4
Company Profie

Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output 5
