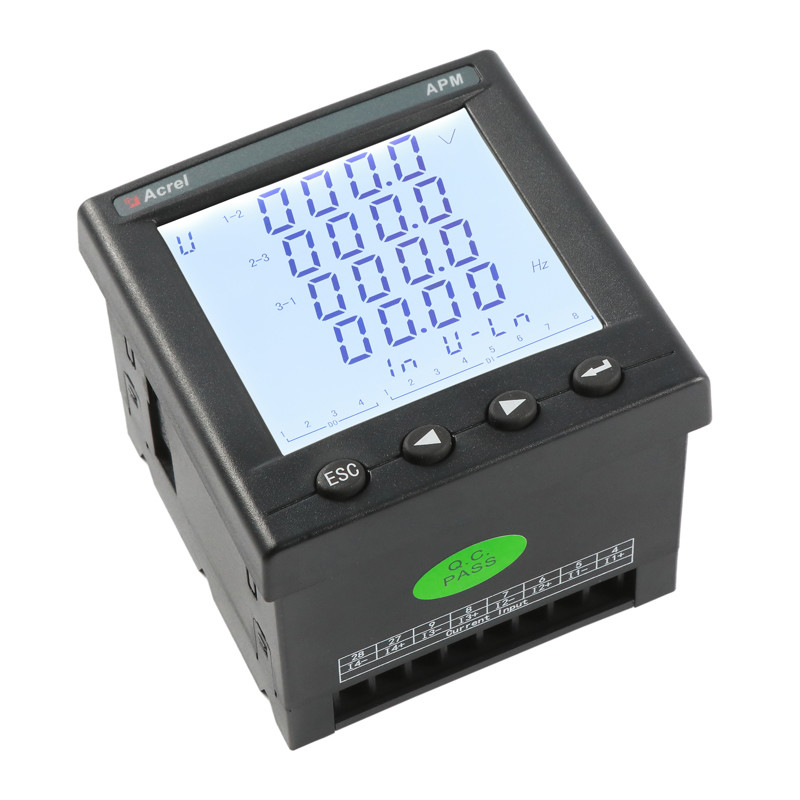

Class 2 RS485 100V 110V AC Energy Meter / Ac Digital Multifunction Meter APM810

Minimum Order Quantity :	1 pcs	Price :	USD 385/PCS
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	APM810

Detail Information
Standard:	RS485(Modbus-RTU)	Optional:	Profibus(Profibus-DP), Ethernet(Modbus-TCP,HTTP,DHCP)
Current:	AC 1A, 5A, Support 2 Mm2 Line Access	Reactive Power:	Class 2
Voltage:	AC 100V、110V、400V、690V	Output Mode:	Optocoupler Pulse With Open Collector
Installation:	Panel Mounted
Highlight:	RS485 AC Energy Meter , class 2 110V DC Energy Meter , RS485 Ac Digital Multifunction Meter

Product Description

APM810 Multifunction Meter:True RMS Measurements,Unbalance & Phase Angles,Demands and Multi-Tariff energy,Max/Min Log with Timestamp,Alarms and SOE Logs,External Option module.

Parameter		Accuracy	Resolution	Measuring Range
Statistical Data	Active Energy	Class 0.5	Chang With Ratio	Chang With Ratio
	Reactive Energy	Class 1.0	Chang With Ratio	Chang With Ratio
	Voltage	0.20%	Chang With Ratio	Direct Ph-N:up to 380V AC
	Current	0.20%	Chang With Ratio	0-5A
	Active Power	0.50%	Chang With Ratio	Chang With Ratio
	Reactive Power	1.00%	Chang With Ratio	Chang With Ratio
	Apparent Power	0.50%	Chang With Ratio	Chang With Ratio
	Power Factor	0.50%	0.001	-1000~+1000
	Frequency	0.05	0.01HZ	45-85HZ

Class 2 RS485 100V 110V AC Energy Meter / Ac Digital Multifunction Meter APM810 0

Class 2 RS485 100V 110V AC Energy Meter / Ac Digital Multifunction Meter APM810 1
