AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V

Contact Now

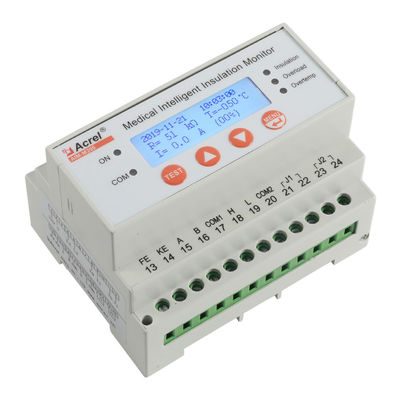

AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V

Name: AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V
Brand: Acrel
SKU: AIM-M200
Price: 2093 USD
Availability: InStock
Rating: 4.9 (110 reviews)

Minimum Order Quantity :	1	Price :	USD 2093 pcs
Packaging Details :	7.5X8.5X10.8 cm	Delivery Time :	5-8 work days
Payment Terms :	T/T, L/C	Supply Ability :	2000000 pcs per year

Place of Origin:	Jiangsu, China	Brand Name:	Acrel
Certification:	CE	Model Number:	AIM-M200

Detail Information
Voltage:	DC 24V	Accuracy Class:	5
Display Mode:	Value And Percentage
High Light:	AIM-M200 insulation monitoring device , Insulation Monitoring Device DC24V

Product Description

The AIM-M200 monitors the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M200 is designed to support insulation fault location

Main Characteristics

● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol

Technical Parameters

Input voltage	DC 18~36V
Power consumption	≤3VA
Resistance measuring range	10~999kΩ
Response value	50~999kΩ
Relative uncertainty	±10%
Response time	≤3s
Measuring voltage U	≤12V
Measuring current I	≤50uA
Load current monitoring Measuring Value	2.1~50A
Load current monitoring Alarm Value	5~50A
Load current monitoring Measuring accuracy	±5%

Dimension(mm)

AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V 0

Wiring

AIM-M200 Medical Intelligent Insulation Monitoring Device DC24V 1
