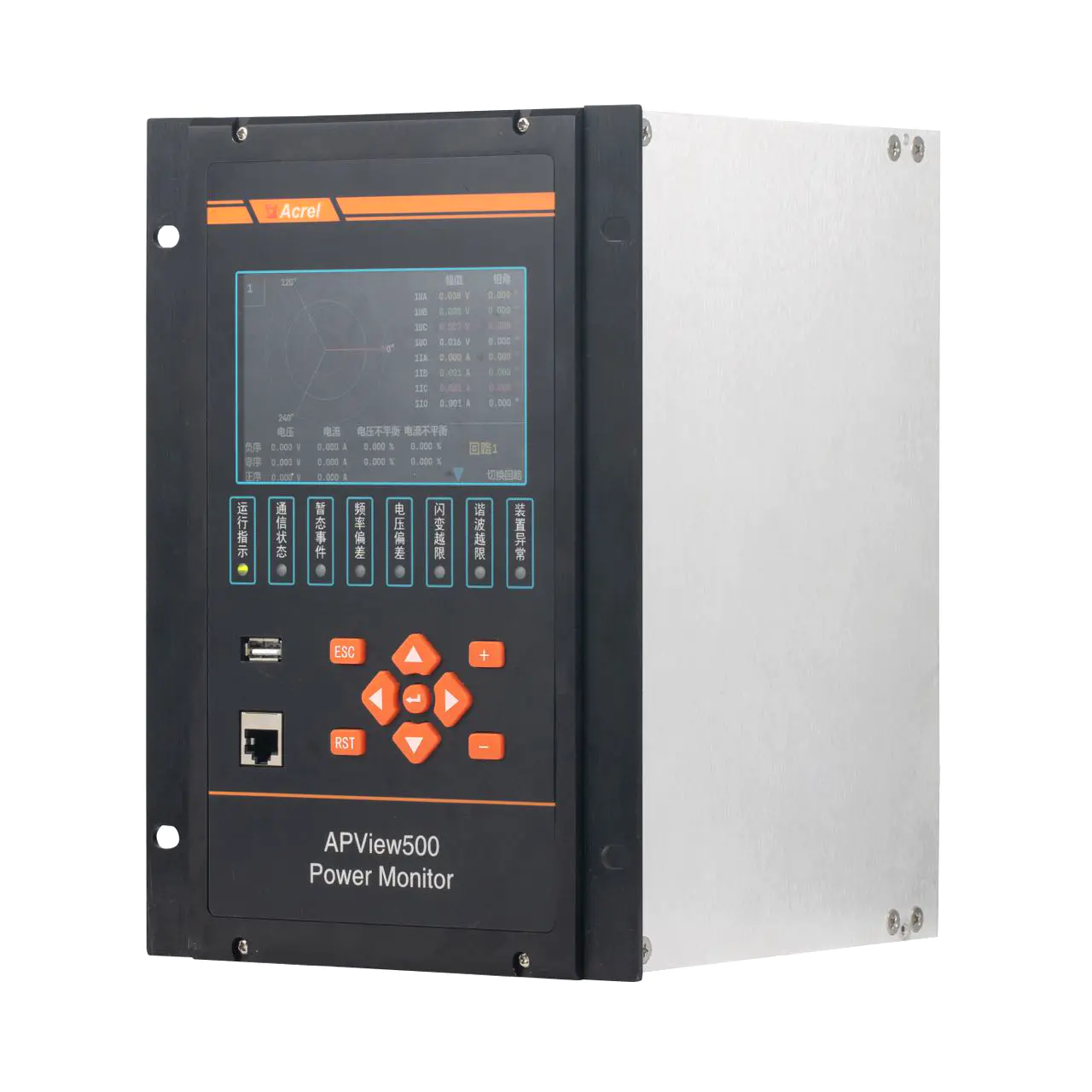

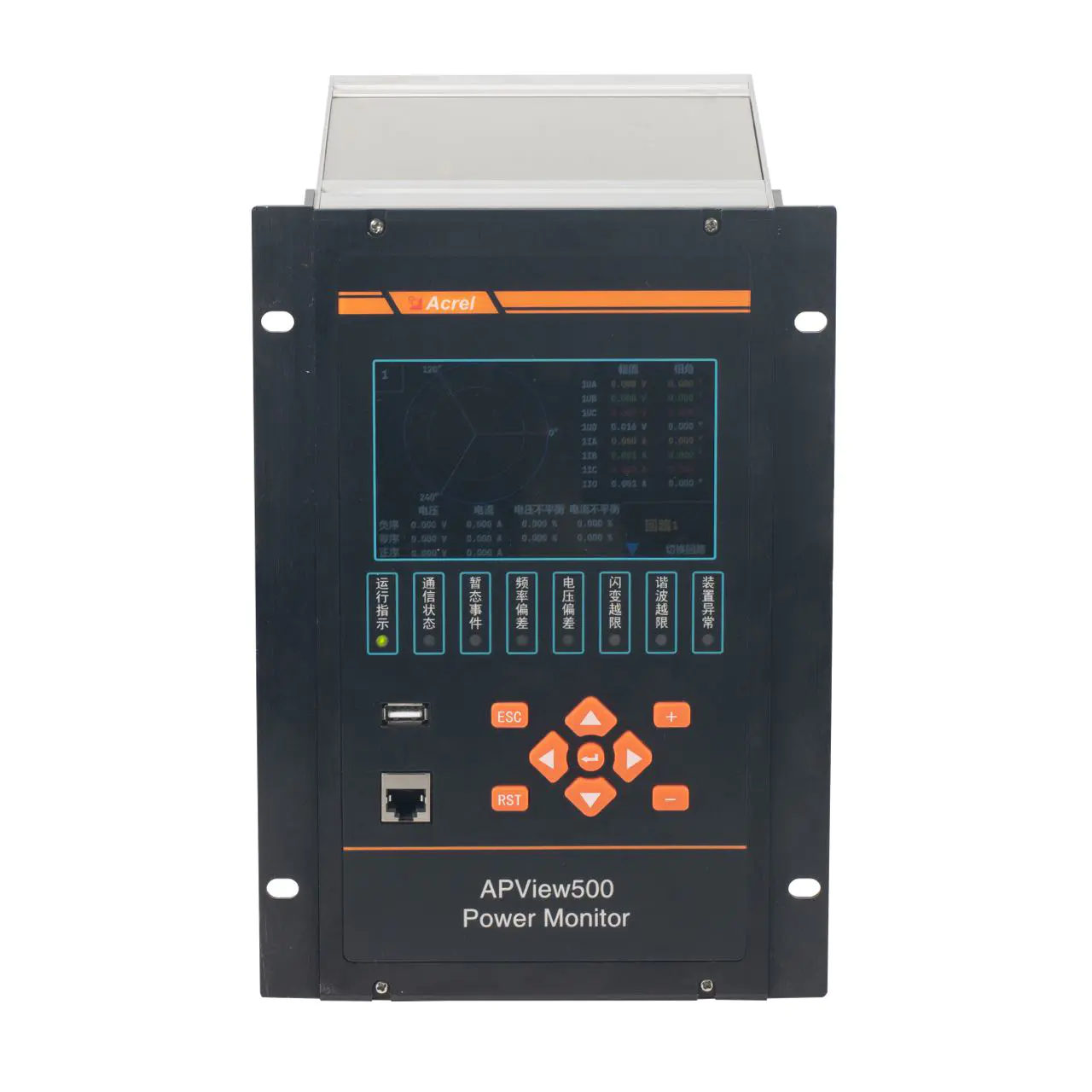

APView500 AC Three Phase CT access Panel Mounted RS485 Power Analyzer

Product Description

Describe

• The Acrel APView500 is a high-precision power quality monitoring device designed to meet the IEC61000-4-30 standard. It offers comprehensive monitoring capabilities, including 2nd~63rd harmonic measurement, waveform sampling, voltage unbalance monitoring, flicker monitoring, and measurement control. The device supports IEC61850 communication protocol, ensuring seamless integration into modern power systems. With its advanced features and high accuracy, the APView500 is ideal for industries such as chemical, steel, metallurgy, hospitals, data centers, transportation, and construction, providing reliable data for power quality analysis and improvement.

  Specifications

  ---

  Technical Parameter	Value
  Rated Value	AC voltage:AC/DC220V, AC/DC110V or DC48V
  	AC current:AC1A,5A;
  Overload capacity	1.2In, continuous working
  	20 times for 1 second
  power supply	Rated: AC/DC220, AC/DC110V or DC48V
  	Permissible deviation: -20%-+20%
  	Power consumption:≤15W
  Power Consumption	≤0.5VA (single phase)
  Measuring rage	0-1.2In
  Digital output	Mechanical service life: ≥10000
  	Output mode: Passive contacts
  	Switching capacity: ≤4000W or ≤384VA
  	On-state current: ≥16A(AC250V/DC24V) in the continuous mode;
  	≥30A for a short term (200ms)
  Accuracy	Class 0.5
  	RMS Voltage:±0.1%
  	RMS Current:±0.1%
  	P,Q,S:±0.2%
  	Power factor:Class 0.5
  	Voltage deviation:0.1%
  	Frequency deviation:±0.001Hz
  Communication	RS485,Modbus-RTU protocol;Ethernet.
  Three-phase unbalance	Voltage unbalance:±0.15%
  	Current unbalance:±1%
  Power frequency withstand voltage	Between power supply set of terminals and signal input, output set of terminals 2kV/1min (RMS)
  	Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV
  Temperature	Operation: -10℃～+55℃Storage: -30℃-+80℃
  Humidity	≤95%RH, no condensation ,without corrosive gas
  Altitude	≤ 2500m

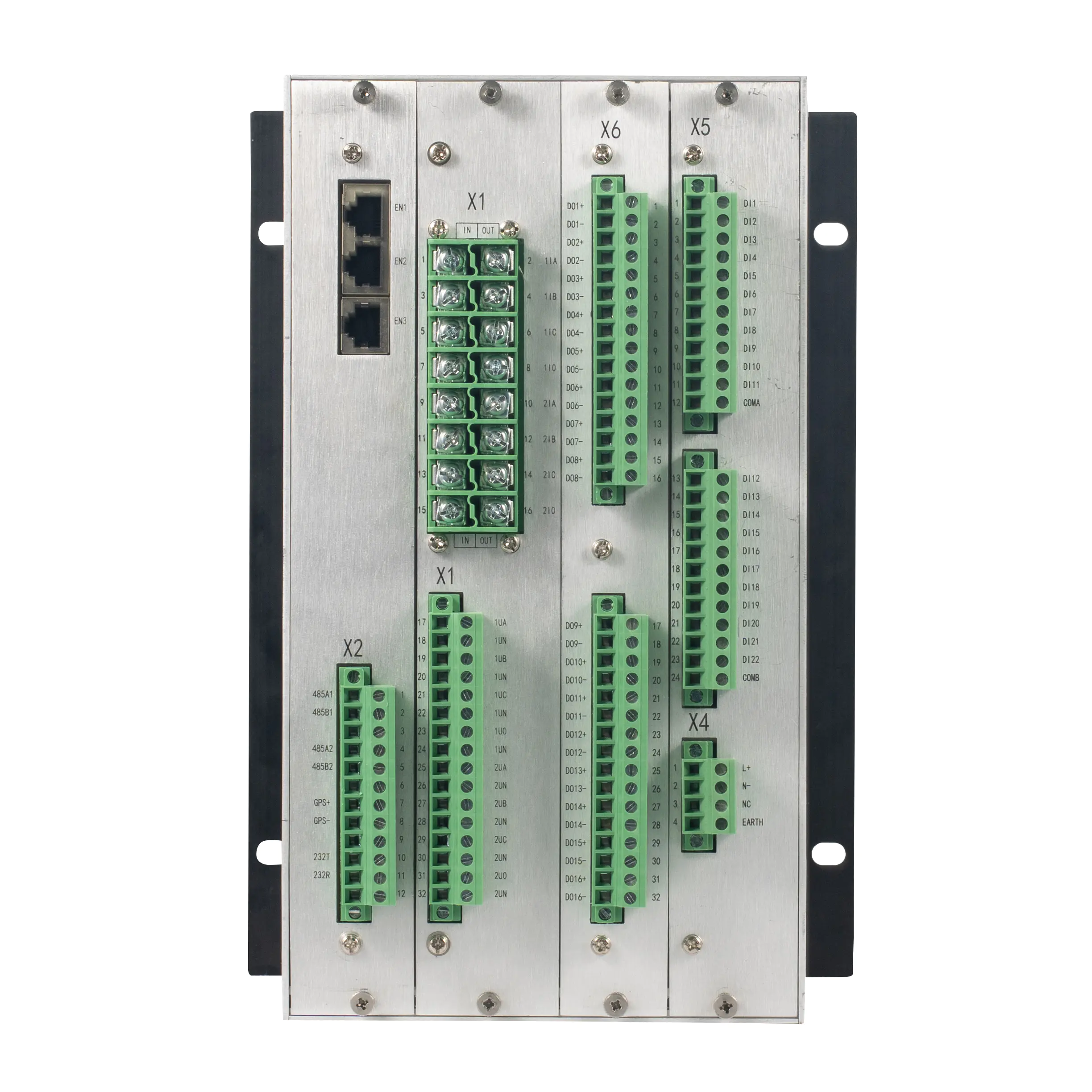

  Dimension & Wiring Diagram

  ---
