APView400 Class A Certificated Power Quality Analyzer

Product Description

Describe

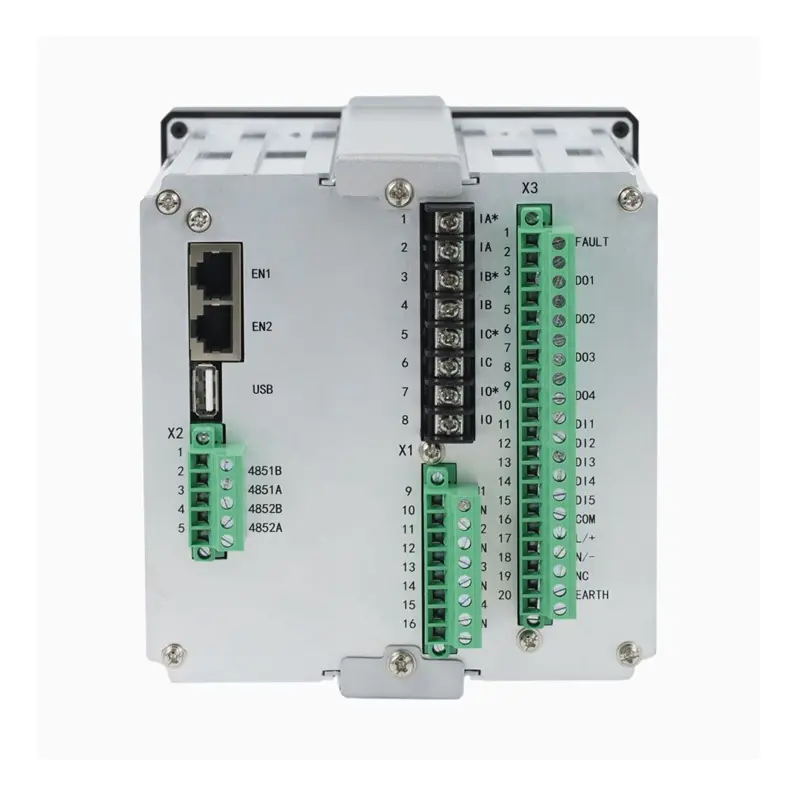

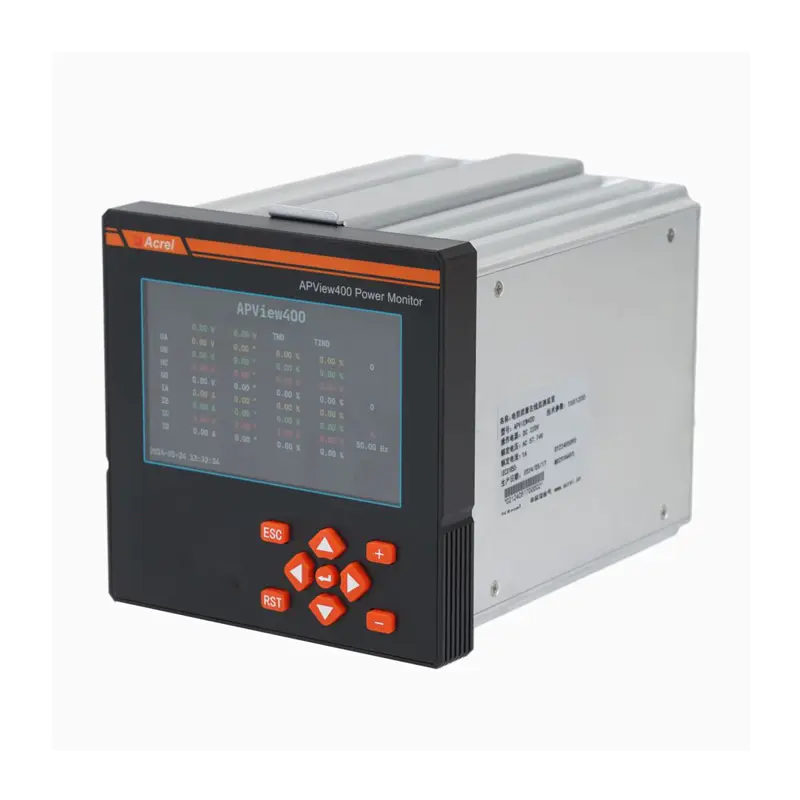

• Acrel APView400 Power Quality Analyzer is a professional power - quality monitoring device for PQM System. It complies with IEC61000 - 4 - 30 Ed3 Class A and IEC60253 - 22 Class 0.2S standards. With advanced functions like Disturbance Waveform Recording and Disturbance Direction Detection, it can record over 2000 waveforms and 5000 Sequence of Events (SOE). It also features high - precision measurement, a high - performance multi - core platform, and an embedded operating system. The device is suitable for power - supply systems up to 35kV and is widely used in industries like semiconductors, petrochemicals, steel, hospitals, data centers, and transportation. It also supports various communication protocols such as Modbus - RTU, Modbus - TCP, and IEC61850 MMS, making it a comprehensive solution for power - quality monitoring.

  Specifications

  ---

  Technical Parameter	Value
  Rated Value	AC voltage:AC/DC220V, AC/DC110V or DC48V
  	AC current:AC1A,5A;
  Overload capacity	1.2In, continuous working
  	20 times for 1 second
  power supply	Rated: AC/DC220, AC/DC110V or DC48V
  	Permissible deviation: -20%-+20%
  	Power consumption:≤15W
  Power Consumption	≤0.5VA (single phase)
  Measuring rage	0-1.2In
  Digital output	Mechanical service life: ≥10000
  	Output mode: Passive contacts
  	Switching capacity: ≤4000W or ≤384VA
  	On-state current: ≥16A(AC250V/DC24V) in the continuous mode;
  	≥30A for a short term (200ms)
  Accuracy	Class 0.5
  	RMS Voltage:±0.1%
  	RMS Current:±0.1%
  	P,Q,S:±0.2%
  	Power factor:Class 0.5
  	Voltage deviation:0.1%
  	Frequency deviation:±0.001Hz
  Communication	RS485,Modbus-RTU protocol;Ethernet.
  Three-phase unbalance	Voltage unbalance:±0.15%
  	Current unbalance:±1%
  Power frequency withstand voltage	Between power supply set of terminals and signal input, output set of terminals 2kV/1min (RMS)
  	Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV
  Temperature	Operation: -10℃～+55℃Storage: -30℃-+80℃
  Humidity	≤95%RH, no condensation ,without corrosive gas
  Altitude	≤ 2500m
