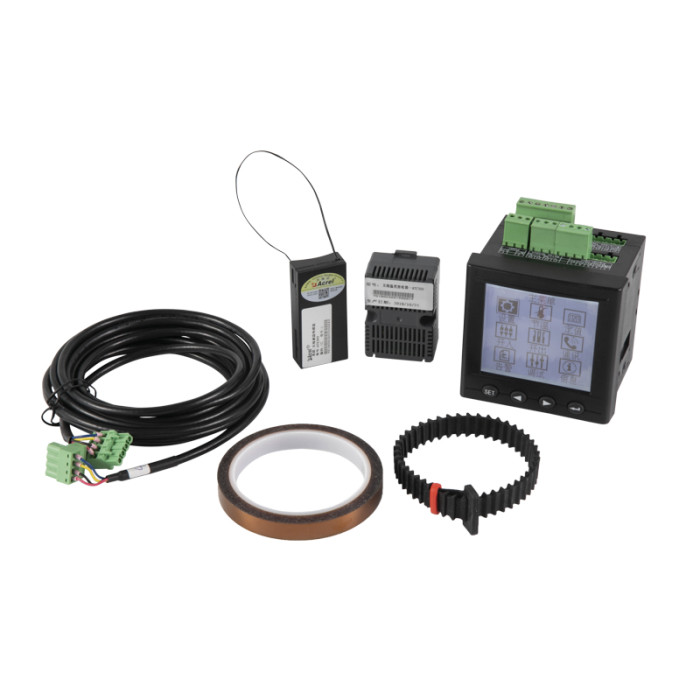

Acrel ARTM-Pn Wireless Temperature Measuring Device For 3-35kV Indoor Switchgears Local Display Device

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ARTM-Pn

Detail Information

Rated Voltage: 100V/400V Rated Current: 5A
Frequency: 50Hz
High Light:

3-35kV Temperature Measuring Device

,

Wireless Temperature Measuring Device

,

Indoor Switchgears Temperature Measuring Device

Product Description

ARTM-Pn Wireless Temperature Measuring Equipment for 3-35KV Switchgears



Product Introduction


    ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data and displays such data on ARTM-Pn locally. In addition, it can be networked via the RS485 port for remote intelligent monitoring.



    Techinical parameters


Items

Features

Rated input

Wiring mode

3P3L or3P4L

Voltage

100V/400V

Current

5A

frequency

50Hz

Accuracy rating

Current,Voltage

0.5 class

Active power

0.5 class

Reactive power

0.5 class

Energy

0.5 class

Power Source

AC85~265V, DC100~300V

Power Consumption

8W

Communication

Protocol

Modbus-RTU

Baud rate (bps)

2400, 4800, 9600, 19200

Environment

Temperature

-20℃~55℃

Humidity

≤95%

Atmospheric pressure

86kPa~106kPa



MTBF



≥50000h



ATE100M/200 Active wireless temperature sensor

Wireless frequency

470MHz

Communication distance

150m in open area

Sampling frequency

25s

Transmitting frequency

25s~5min

Power source

Battery

Installation

Magnetic / Belt

Range of temperature

-50℃~+125℃

Precision

±1℃

Application

Joints in high or low voltage switchgears

Battery life

≥5 years(25℃)

ATE400 Passive wireless temperature sensor

Wireless frequency

470MHz

Communication distance

150m in open area

Sampling frequency

15s

Transmission frequency

15s

Power source

CT-powered, starting current ≥5A

Installation

Alloy chip fixing

Sensor probe

Alloy bottom

Range of temperature

-50℃~125℃

Precision

±1℃

Application

Joints in high or low voltage switchgears

ATE100P/200P Outdoor wireless temperature sensor

Wireless frequency

470MHz

Communication distance

150m in open area

Sampling frequency

25s

Transmitting frequency

25s~5min

Power source

Battery

Installation

Belt

Range of temperature

-50℃~+150℃

Precision

±0.5℃

Application

Outdoor voltage switchgears

Battery life

≥5 years(25℃)

Protection level

IP68
