433MHz 150m Wireless Temperature Monitor Outdoor Switchgear Temperature Sensor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
|Minimum Order Quantity :||1 piece||Price :||$42.00 / Piece|
|Packaging Details :||carton box||Delivery Time :||5-7 days|
|Supply Ability :||6000 pieces/day|
|Place of Origin:||China||Brand Name:||Acrel|
|Wireless Transmit:||470MHz,433MHz||Transmission Distance:||150 Meter|
|Battery -powered:||5 Years||Temperature:||-50℃~+125℃|
|Application:||Busbar Cable||Sampling Cycle:||25S|
470MHz Wireless Temperature Sensor,
470MHz Online Temperature Monitor,
Wireless Temperature Sensor ATE Series

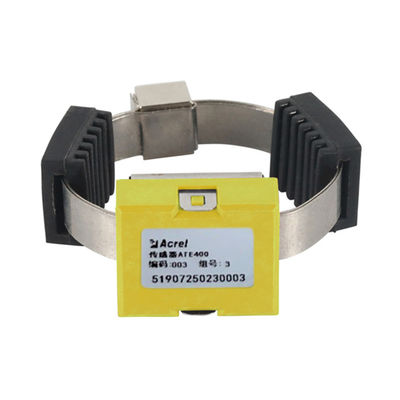

ATE400 wireless temperature sensor
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcartswitchgears, fixed switchgears and loop-net switchgears.
ATE400 wireless temperature sensor on medium voltage busbar breaker cable
● Wireless transmit,470MHz,433MHz;
● Wireless transmission distance, 150 meters in open area;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -50℃~+125℃.
|Power supply||Powered by battery||Powered by CT|
|Transmission frequency||470MHZ and 433MHZ|
|Transmission cycle||5 min||15s|
|Operation life||5 year(battery life)||10 year|
|Installation||Screw bolted||Magnetic||Belted||fixed by compound metal|
wireless temperature sensor Model
Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy chips and fix the metal hasp in the middle of alloy chips.
Secondly, take the folded alloy chips through one silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp.
Finally, subtract the excess alloy chips.
ADW300 3P4W ADW300 3P3W
Typical connection-wireless temperature sensor
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
