Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet

Minimum Order Quantity : 1 piece Price : $42.00 / Piece
Packaging Details : carton box Delivery Time : 5-7 days
Supply Ability : 6000 pieces/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ATE200

Detail Information

Wireless Transmit: 470MHz,433MHz Transmission Distance: 150 Meter
Battery -powered: 5 Years Temperature: -50℃~+125℃
Installation: Belt Certification: CE
Application: Busbar Cable Sampling Cycle: 25S
Accuracy: 1℃
High Light:

Acrel Wireless Temperature Monitor

,

470 Mhz Wireless Temperature Monitor

,

Acrel cabinet temperature sensor

Product Description

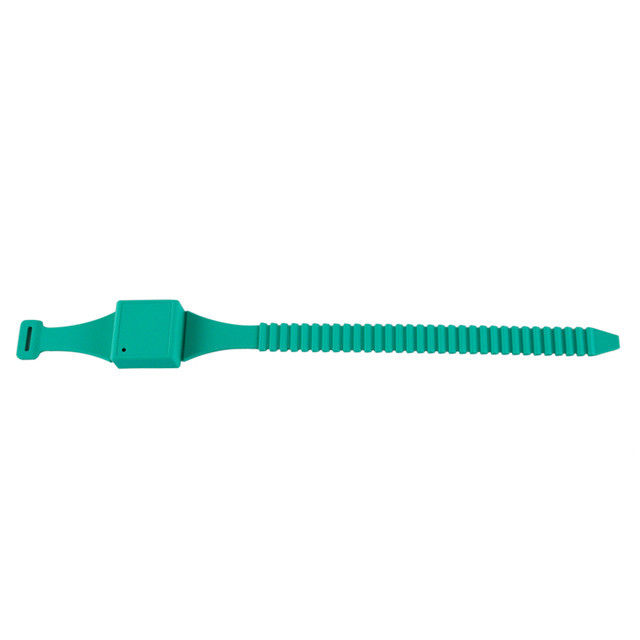

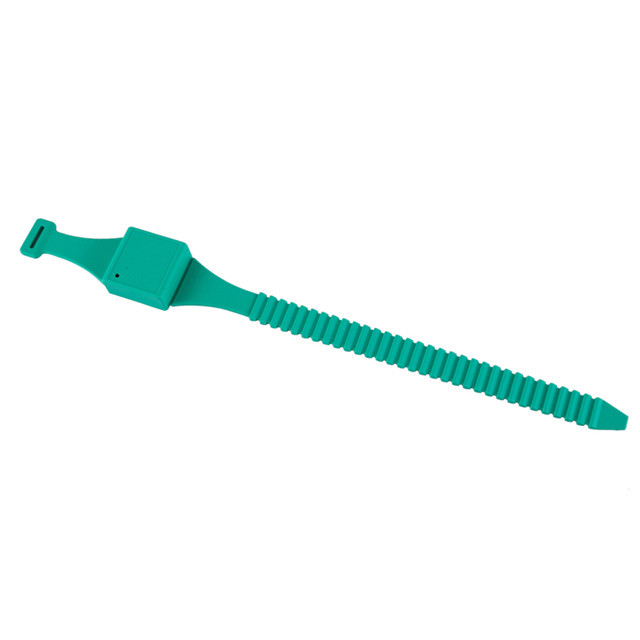

ATE200 wireless temperature sensor
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcartswitchgears, fixed switchgears and loop-net switchgears.

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 0



ATE200 wireless temperature sensor on medium voltage busbar breaker cable

● Wireless transmit,470MHz,433MHz;

● Wireless transmission distance, 150 meters in open area;

● Battery -powered, more than 5 years;

● Widely temperature measuring range, -50℃~+125℃.



Technology parameter

Acrel model ATE100 ATE100M ATE200 ATE400
Power supply Powered by battery Powered by CT
Transmission frequency 470MHZ and 433MHZ
Sampling cycle 25S 15S
Transmission cycle 5 min 15s
Measuring -50℃~+125℃
Accuracy 1℃
Communication distance 150m
Operation life 5 year(battery life) 10 year
Installation  Screw bolted Magnetic Belted fixed by compound metal
Application  circuit breaker,contact,busbar,cable





wireless temperature sensor Model

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 1



Wiring

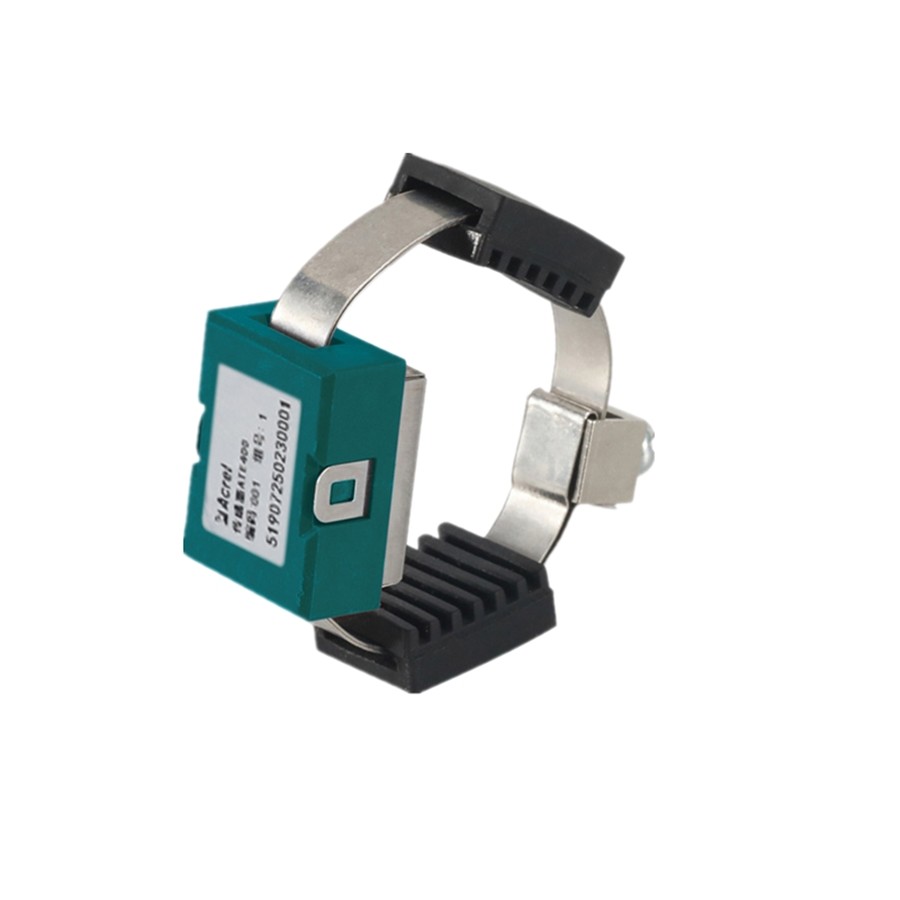

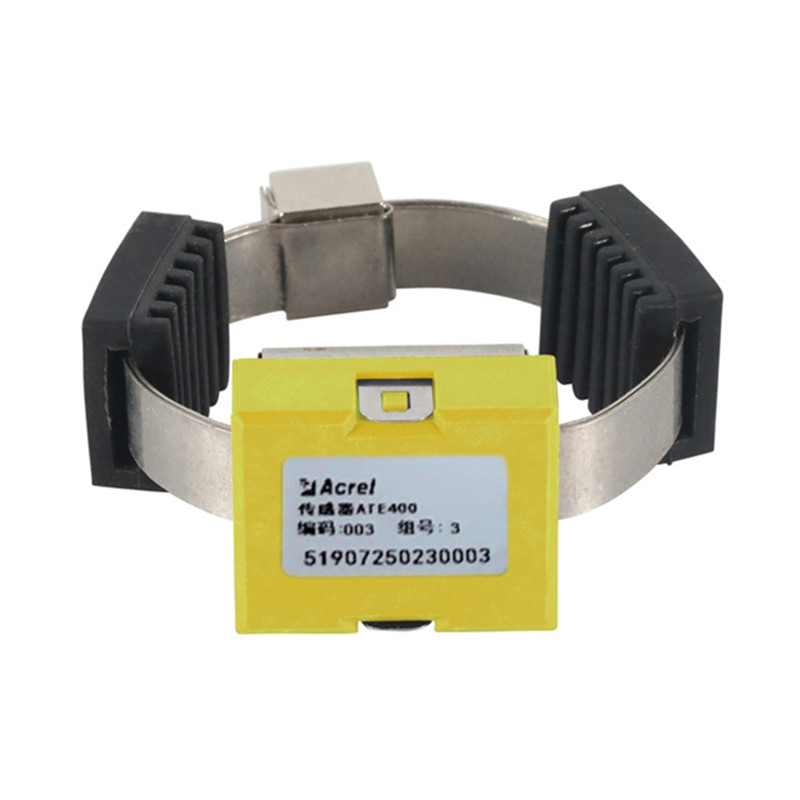

Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy chips and fix the metal hasp in the middle of alloy chips.

Secondly, take the folded alloy chips through one silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp.

Finally, subtract the excess alloy chips.

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 2

                  ADW300 3P4W                                                             ADW300 3P3W

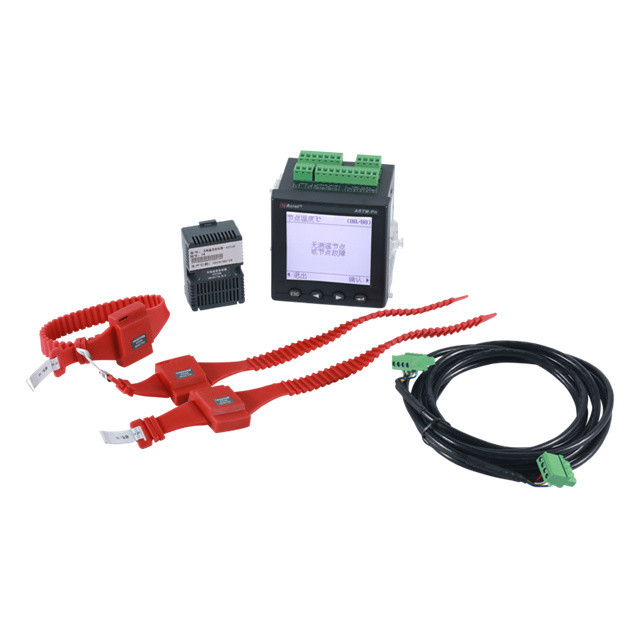

Typical connection-wireless temperature sensor

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 3



Certification

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 4



Company profile

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 5

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 6

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.



Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 7Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 8



At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

Acrel battery Powered 470 mhz Wireless Temperature Monitor For Cabinet 9

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
