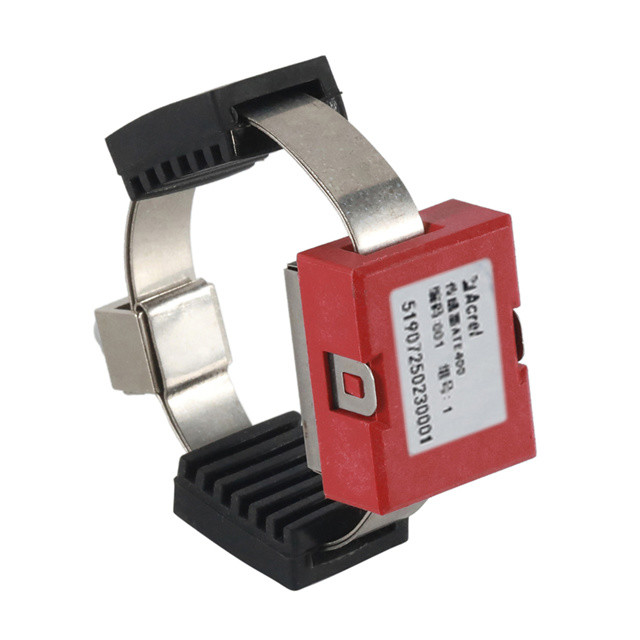

Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ATE400

Detail Information

Wireless Frequency: 470MHz、433Mhz Communication Distance: 150m (470Mhz) 、50m(433Mhz)in Open Area
Transmission Frequency: 15s Installation: Alloy Chip Fixing
Product Name: Switchgear Temperature Sensor
High Light:

3-35kv busbar temperature measuring sensor

,

3-35kv wireless busbar temperature measuring sensor

,

Acrel wireless busbar temperature measuring sensor

Product Description

ATE Series Wireless Temperature Sensor



ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.





Technical Features



Items Features
Environment Temperature -40℃~85℃
Humidity ≤95%

Atmospheric pressure

86kPa~106kPa

ATE100M/100/200 Active wireless temperature sensor



Wireless frequency 470MHz,433Mhz
Communication distance 150m(470Mhz), 50m(433Mhz)in open area
Sampling frequency 25s
Transmitting frequency 25s-5min adaptive
Power source Battery
Installation Magnetic / bolted /Belt
Range of temperature -50℃~+125℃
Precision ±1℃
Application Joints in high or low voltage switchgears
Battery life ≥5 years(25℃)
ATE400 Passive wireless temperature sensor Wireless frequency 470MHz, 433Mhz
Communication distance 150m(470Mhz), 50m(433Mhz)in open area
Sampling frequency 15s
Transmission frequency 15s
Power source

CT-powered, starting current≥5A;

Max current≤5000A;

Installation alloy chip fixing
Sensor probe alloy bottom
Range of temperature -50℃~125℃
Precision ±1℃
Application Joints in high or low voltage switchgears

ATE100P/200P Wireless temperature sensor



Wireless frequency 470MHz, 433Mhz
Communication distance 150m(470Mhz), 50m(433Mhz)in open area
Sampling frequency 25s
Transmitting frequency 25s-5min adaptive
Power source Battery
Installation bolted /Belt
Range of temperature -50℃~+150℃
Precision ±0.5℃
Application Voltage switchgears
Battery life ≥5 years(25℃)
Protection level IP68









ATE300M multi

Loop temperature sensor





Wireless frequency 433-510MHz
Communication distance 1000m in open area
Sampling frequency 1-240s
Power source AC/DC 85~265V
Installation Rail type/Tie type
Range of temperature -40℃~+140℃
Precision ±1℃
Application Joints in low voltage switchgears









ATE300P

Probe lead out

temperature sensor





Wireless frequency 433/470MHz
Communication distance 500m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min adaptive
Power source Battery
Installation Rail type/Tie type
Range of temperature -50℃~+300℃
Precision ±1℃
Battery life ≥5 years(25℃)
Protection level IP65



Switchgear temperature sensors


Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 0Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 1





Dimensions of different wireless temperature sensors


Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 2





Installation in cabinets 35kv and below


Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 3

Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 4





Network of remote control of distribution systems




Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 5



Company profiles




Acrel ATE400 Wireless Busbar Temperature Measuring Sensor Equipped In 3-35kv Switchgears 6



    Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
