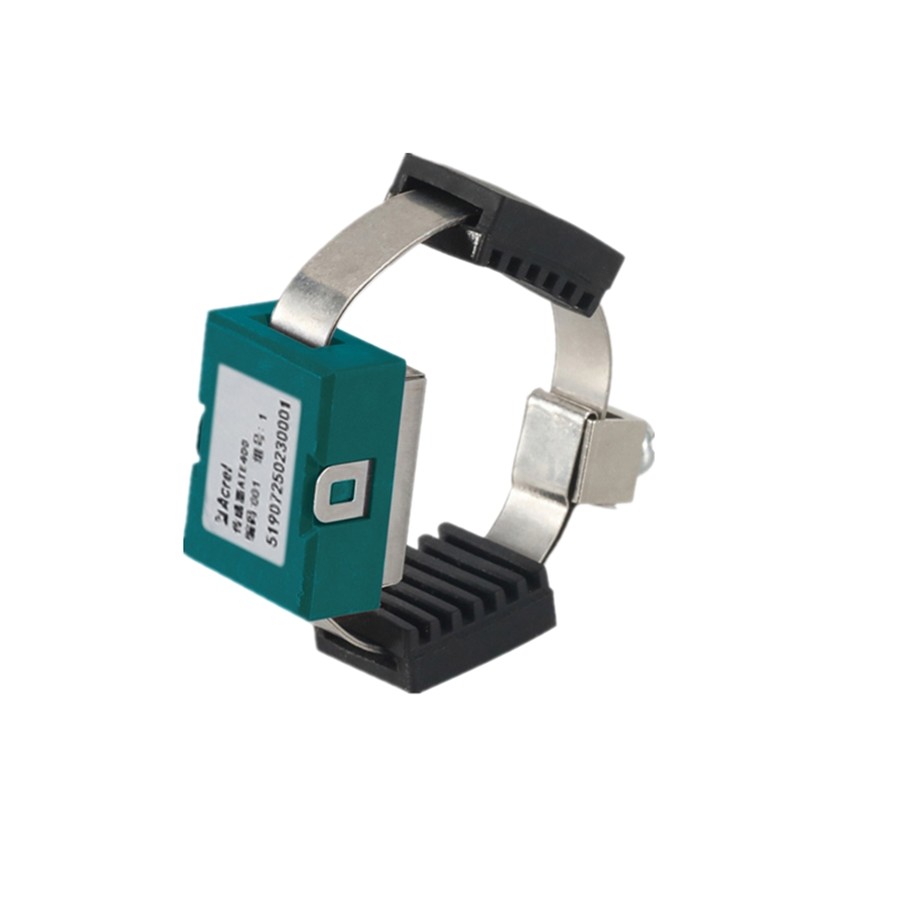

ATE Series Temperature Sensor Battery Powered

Minimum Order Quantity : 1 piece Packaging Details : carton box
Delivery Time : 5-7 days Supply Ability : 6000 pieces/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ATE

Detail Information

Battery -powered: More Than 5 Years Temperature: -50℃~+125℃
Certification: CE Sampling Cycle: 25S
Accuracy Class: ±1℃
High Light:

ATE Series Temperature Sensor

,

Battery Powered Temperature Sensor

Product Description

General


ATE series temperature measuring sensor has been developed in compliance with Specification for Temperature Measuring equipment, It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcartswitchgears, fixed switchgears and loop-net switchgears.

Technical parameter


temperature measurement Item Value
product temperature measurement
Communication distance 150m in open area
Sampling frequency

ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s

ATE400:15s

Transmission frequency

ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min

ATE400:15s

Power source CT-powered, starting current>5A
Installation Alloy chip fixing
Range of temperature -50AC~125°C
Precision

ATE100, ATE100M, ATE200, ATE400: 士 TC

ATE100P,ATE200P: 土0.5°C

Service life ^5 years
Environmental requirement Operating temperature -50"C~125"C
Relative humidity W95%
Atmospheric pressure 86kPa~106kPa

Features





Various Installation Methods

● Bolted Installation

● Belt Installation

● Magnetic

● Fixed by alloy chips

ATE Series Temperature Sensor Battery Powered 0



Battery or CT Sensing Power Supply

● Lifespan: ≥5 years (battery); ≥10 years (CT sensing)

● Battery Model: ATE100(P),ATE100M,ATE200(P),

● CT Sensing Model: ATE400

ATE Series Temperature Sensor Battery Powered 1



Application


ATE Series Temperature Sensor Battery Powered 2

ATE Series Temperature Sensor Battery Powered 3

ATE Series Temperature Sensor Battery Powered 4
