Passive 470MHz Wireless Temperature Sensor Online Temperature Monitor ATE Series
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 piece | Packaging Details : | carton box |
|---|---|---|---|
| Delivery Time : | 5-7 days | Supply Ability : | 6000 pieces/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Model Number: | ATC600 |
|
Detail Information |
|||
| Power: | AC/DC100~265V ≤6VA ≤8VA | Power Consumption: | ≤2W |
|---|---|---|---|
| Points: | ≤240 Points | Range Of Temperature: | -50℃~+125℃ |
| Accuracy: | ±1℃ | ||
| Highlight: | ATC600 Temperature Sensor Data Receiver,Temperature Sensor Data Receiver |
||
Product Description
ATC600 energy meter can be used in 3~35kV indoor switch cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other switch cabinets, and can also be used in 0.4kV low-voltage cabinets, including fixed cabinets, drawers cabinet, etc.
Technical parameter
| Items | Features | |
|

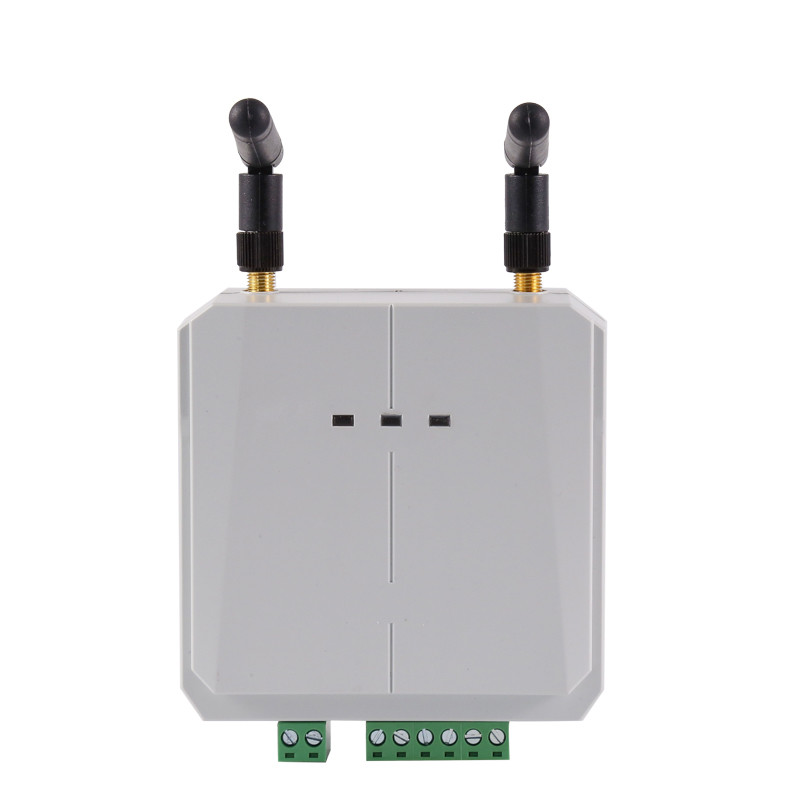

Transceiver ATC600 |
Power |
AC/DC100~265V ≤6VA ≤8VA |
| Power consumption | ≤2W | |
| Points | ≤240 points | |
| Resolution | 0.1℃ | |
| Range of temperature | -50℃~+125℃ | |
| Accuracy | ±1℃ | |
| Wireless frequency | 470M | |
| Distance | Transceiver sensor 150 m( open), repeaters distance 1 km( open) | |
| Communication port | RS485 | |
| Protocol | MODBUS-RTU | |
| Baud(bps) | 2400,4800,9600,19200 | |
| Relay output | 2 passive exits ,5 A/AC250V,5A/DC30V capacity | |
| Working environment | Temperature:-20 ℃～+55 ℃；Humidity≤95% | |
|
DO Function ● 2 Passive Relay Output ● Capacity: 5A/AC 250V, 5A/DC 30V
|
|
|
Extra RS485 Communication ● Can be connected with ATP Temp. Display Device ● Protocol: MODBUS-RTU ● Communication Distance: 400m (in practical) |
|
