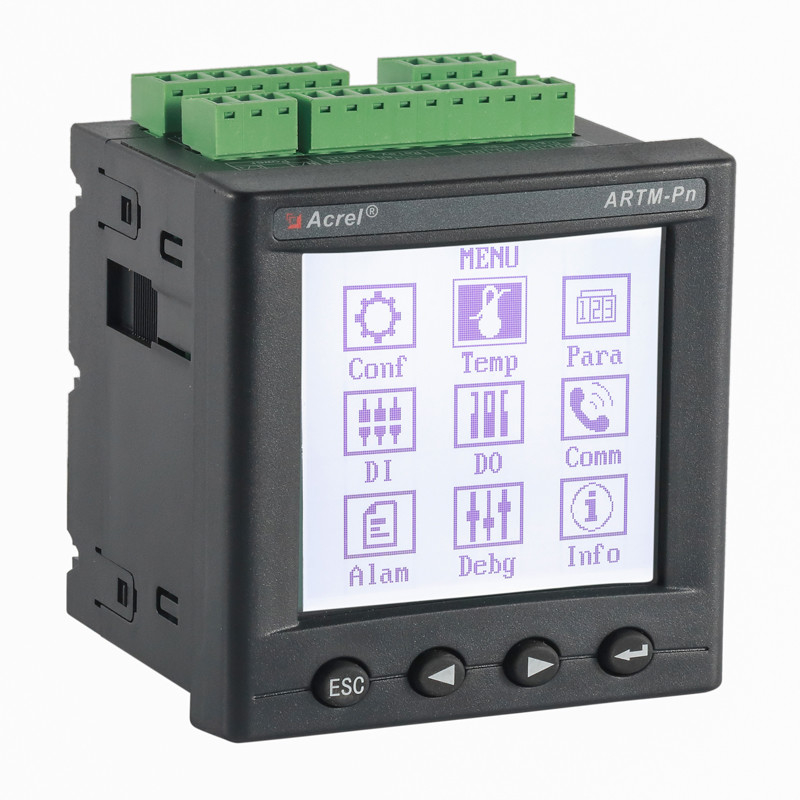

Acrel ARTM-Pn Wireless Temperature Measuring Device For 3-35kV Indoor Switchgears

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ARTM-Pn

Detail Information

Rated Voltage: 100V/400V Rated Current: 5A
Frequency: 50Hz
High Light:

Wireless Temperature Measuring Device 3-35kV

,

Wireless Temperature Measuring Device

,

3-35kV Wireless Temperature Measuring Device

Product Description

Product Introduction



    ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data and displays such data on ARTM-Pn locally. In addition, it can be networked via the RS485 port for remote intelligent monitoring.



Items

Features

Rated input

Wiring mode

3P3L or3P4L



Voltage

100V/400V


Current

5A


frequency

50Hz

Accuracy rating

Current,Voltage

0.5 class



Active power

0.5 class



Reactive power

0.5 class



Energy

0.5 class

Power Source

AC85~265V,DC100~300V

Power Consumption

8W

Communication

Protocol

Modbus-RTU


Baud rate (bps)

2400,4800,9600,19200

Environment

Temperature

-20℃~55℃


Humidity

≤95%


Atmospheric pressure

86kPa~106kPa



MTBF



≥50000 h



ATE100M/200 Active wireless temperature sensor





Wireless frequency

470MHz


Communication distance

150m in open area



Sampling frequency

25s


Transmitting frequency

25s~5min


Power source

Battery



Installation

Magnetic /Belt



Range of temperature

-50℃~+125℃


Precision

±1℃


Application

Joints in high or low voltage switchgears



Battery life

≥5 years(25℃)

ATE400 Passive wireless temperature sensor

Wireless frequency

470MHz


Communication distance

150m in open area



Sampling frequency

15s


Transmission frequency

15s


Power source

CT-powered, starting current≥5A



Installation

Alloy chip fixing



Sensor probe

Alloy bottom



Range of temperature

-50℃~125℃


Precision

±1℃


Application

Joints in high or low voltage switchgears

ATE100P/200P Outdoor wireless temperature sensor



Wireless frequency

470MHz


Communication distance

150m in open area



Sampling frequency

25s


Transmitting frequency

25s~5min


Power source

Battery



Installation

Belt



Range of temperature

-50℃~+150℃


Precision

±0.5℃


Application

Outdoor voltage switchgears



Battery life

≥5 years(25℃)



Protection level

IP68
