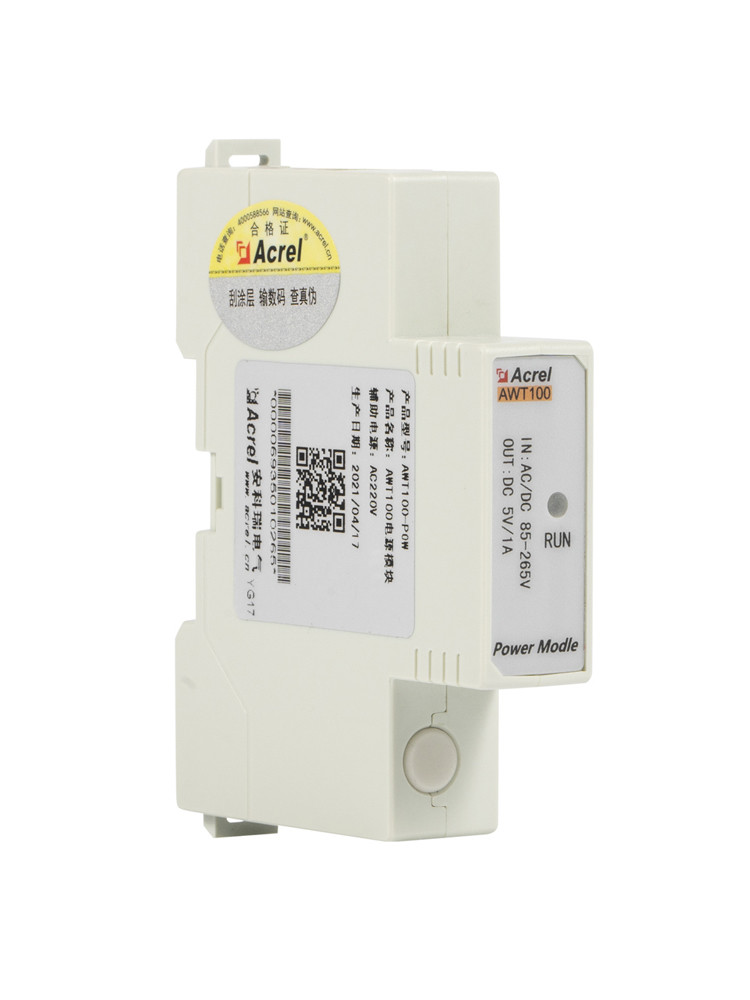

Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AWT100-4G

Detail Information

Product Name: Smart Gateway Certificate: CE FCC
Working Voltage: DC 12~24V
High Light:

WiFi IOT gateway data conversion module

,

2G/4G/NB IOT gateway data conversion module

Product Description

AWT100 Smart Gateway

Features:
■Using single-mode guide rail shape, small size, flexible and convenient installation;
■A variety of mainstream wireless modules, suitable for various on-site environments;
■Multiple hardware interface modes, easy to use with other products;
■Rich communication interface protocols can meet the different needs of customers.


The applicable industries are as follows:
■Wireless meter reading;
■Building automation and security;
■Robot control;
■Power distribution network monitoring, power load monitoring;
■ Intelligent lighting control;
■Automatic data collection;
■Industrial remote control and telemetry;
■Highway and railway data transmission;
■Other power and industrial control industries



Multiple communication methods


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 0



Functions


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 1

Dimensions


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 2





Parameters


Module Name AWT100-4G AWT100-NB AWT100-2G

AWT100-LoRa

AWT100-LW

Working frequency

LTE-FDD B1 B3 B5 B8

LTE-TDD B34 B38 B39 B40 B41

CDMA B1 B5 B8

GSM 900/1800M

H-FDD B1 B3 B8 B5 B20

GSM 850

EGSM 900

DCS 1800

PCS 1900

LoRa 460-510MHz



Transmission rate

LTE-FDD

Maximum downlink rate 150Mbps

Maximum uplink rate 50Mbps

LTE-TDD

Maximum downlink rate130Mbps

Maximum uplink rate 35Mbps

CDMA

Maximum downlink rate 3.1Mbps

Maximum uplink rate 1.8Mbps

GSM

Maximum downlink rate 107Kbps

Maximum uplink rate 85.6Kbps

Maximum downlink rate 25.2Kbps

Maximum uplink rate 15.62Kbps

GPRS

Maximum downlink rate 85.6kbps

Maximum uplink rate 85.6kbps

LoRa 62.5kbps
Downlink RS485 Communication
Uplink 4G Communication NB-IoT Communication 2G Communication LoRa Communication
SIM card voltage 3V, 1.8V /
Working current Static power: ≤1W, Transient power consumption: ≤3W

Static power: ≤0.5W,

Transient power consumption: ≤1W

Antenna interface 50Ω/SMA(Faucet)
Serial port type RS485
Baud rate 4800bps, 9600bps, 19200bps, 38400bps(default 9600bps)
Operating Voltage DC24V or AC/DC220V
Operating temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity range 0~95% Non-condensing



Dimensions


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 3



Certificate


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 4

Network


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 5Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 6

IoT Platform


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 7



Company


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 8



Contact us


Acrel AWT100 Smart IOT Gateway Data Conversion Module 2G/4G/NB/LoRa/LoRaWAN/GPS/WiFi/CE/DP Din Rail Installation 9
