ANet-1E2S1-4G DC/AC 85V~265V Smart IoT Gateway Support 2G/3G/4G

Product Description

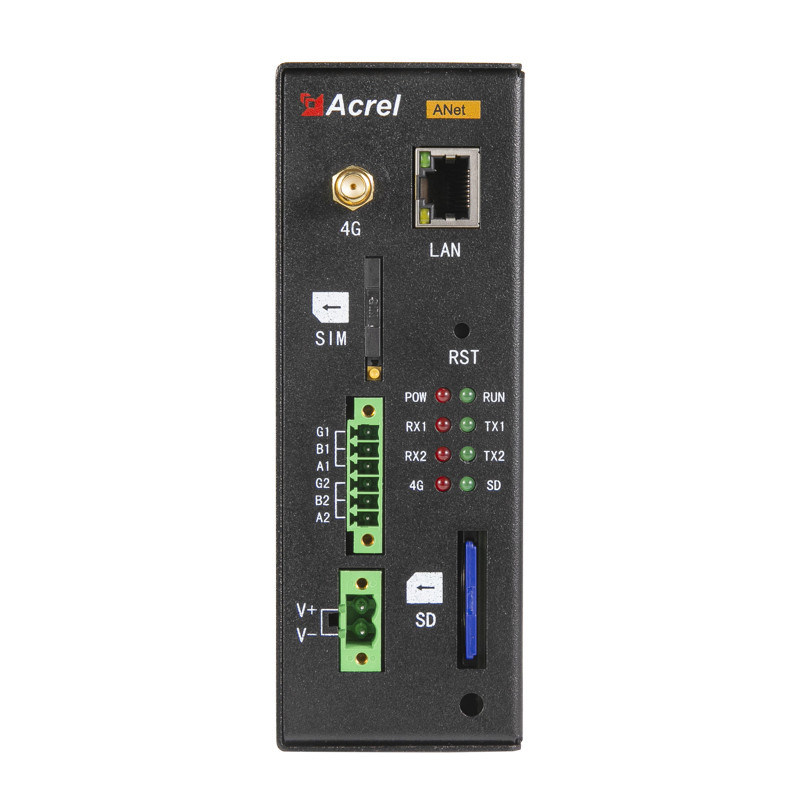

ANet-1E2S1-4G Smart IoT Gateway

● Double wide voltage (DC/AC 85V ~ 265V) reverse connection protection
● Support 2G/3G/4G
● Support local and remote configuration maintenance and real-time data monitoring
● Max.64 device data collection, support MODBUS-RTU or MODBUS-TCP device
● Support breakpoint continuation, Xml, Json for data transmit
● Support standard 8GB SD card (Max. 32GB)
● Multiple alarm setting for each device

Characteristic
Communication Downlink: 2* RS485 Uplink: 4G	Protocol ModbusRtu, ModbusTCP, OPC UA, SNMP, MQTT	Auxiliary power supply AC/DC 220V (85-265V)

Function

Working frequency band

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8

SIM card voltage

3V, 1.8V

Consumption

≤10W

Dimension(L*W*H)
140mm×50mm×90mm

Installation
DIN 35mm

Wiring

Typical connection
