ISO9001 Three Phase DC12V Smart Gateway / 4g Iot Gateway AF-GSM400-4GY

Minimum Order Quantity : 1 Piece Price : $200.00 / Piece
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: AF-GSM400-4GY

Detail Information

Display Type: Analog Only Phase: Three Phase
Measuring Energy Range: DC12V Accuracy Class: 0.5
Output Voltage: DC12V Operating Temperature: -40℃~90℃
Dimensions: 9.6cm*6.7cm*2.4cm Product Name: AF-GSM300-4G Smart Gateway
Communication: Modbus RTU Certificate: CE ISO9001
Temperature: -40℃~90℃ Installation: 35mm Din Rail
Dimension: 9.6cm*6.7cm*2.4cm Operating Voltage: DC12V
Antenna Interface: 50Ω Baud Rate: 115200bps
Upstream: 4G Selling Units: Single Item
Single Package Size : 9.6X6.4X2.7 Cm Single Gross Weight: 0.400 Kg
Package Type: It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.If Packaging Has Special Requirements, Can Communicate With Customer Service Personnel, Customized
High Light:

DC12V Smart Gateway

,

DC12V 4g iot gateway

,

ISO9001 Smart Gateway

Product Description

General
AF-GSM is a new 4G remote wireless data acquisition device launched by Acrel Electric. By adopting embedded design, it is embedded TCP/IP protocol stack, as well as powerful microprocessor chip and built-in watchdog, therefore, it has reliable and stable performance.

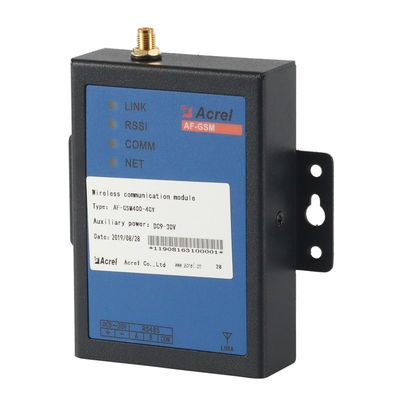

ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 0
AF-GSM400-4GY Smart Gateway
● It supports data acquisition of the serial port MODBUS RTU protocol and communicates with the Acrel server through the Acrel
platform protocol.
● It supports for data acquisition of up to 30 MODBUS RTU devices.
● It supports the acquisition of 5 register address fields for each MODBUS device, with each register address range not exceeding
64.
● It supports triggering alarms by presetting alarm addresses and alarm values for each MODBUS address range. There are currently
up to 14 alarm addresses for each address field.
● It supports server MODBUS or LORA unvarnished transmission communication.
● It supports to connect the data center by fixed IP and dynamic domain name resolution.
Technical parameter
Parameter name
AF-GSM300-4G
AF-GSM400-4GY
Working frequency band
LTE-FDD B1 B3 B5 B8
LTE-FDD B1 B3 B5 B8

LTE-TDD B34 B38 B39 B40 B41
LTE-TDD B34 B38 B39 B40 B41

CDMA B1 B5 B8
CDMA B1 B5 B8

GSM 900/1800M
GSM 900/1800M

LORA 137~1020MHz

Transmission rate
LTE-FDD maximum download rate is 150Mbps, maximum upload rate is 50Mbps


LTE-TDD maximum download rate is 130Mbps, maximum upload rate is 35Mbps


CDMA maximum download rate is 3.1Mbps, maximum upload rate is 1.8Mbps


GSM maximum download rate is 107Kbps, maximum upload rate is 85.6Kbps

Downstream
LORA
RS485
Upstream
4G
4G
SIM card voltage
3V, 1.8V

Antenna interface
50Ω/SMA

Serial port type
RS-485

Baud rate
115200bps

Operating voltage
DC12V

Operating current
350 ~ 400mA @ 12V (400mA when dialing)

Operating temperature
-40℃~85℃

Storage temperature
-40℃~90℃

Temperature range
0 ~95% non-condensing

Installation method
Base plate installation,35mm standard rail mounting (please specify when installing the guide rail)

Dimension
9.6cm×6.7cm×2.4cm

Function
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 1
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 2
Appearance
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 3
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 4
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 5
Wiring
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 6
Typical connection
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 7
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 8
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 9
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 10
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 11
ISO9001 Three Phase DC12V Smart Gateway /  4g Iot Gateway  AF-GSM400-4GY 12
