Passive 470MHz Wireless Temperature Sensor Online Temperature Monitor ATE Series
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 piece | Packaging Details : | carton box |
|---|---|---|---|
| Delivery Time : | 5-7 days | Supply Ability : | 6000 pieces/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | RED | Model Number: | ATE |
|
Detail Information |
|||
| Power: | AC/DC100~265V ≤6VA ≤8VA | Power Consumption: | ≤2W |
|---|---|---|---|
| Points: | ≤240 Points | Range Of Temperature: | -50℃~+125℃ |
| Accuracy: | ±1℃ | Distance: | Transceiver Sensor 150 M( Open), Repeaters Distance 1 Km( Open) |
| High Light: | Wireless Temperature Data Transceiver,ATC600 Wireless Temperature Monitor,150M Wireless Temperature Transceiver Monitor |
||
Product Description
ATE series wireless temperature sensors can be used in 3~35kV indoor switch cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other switch cabinets, and can also be used in 0.4kV low-voltage cabinets, including fixed cabinets, drawers cabinet, etc. The wireless temperature sensor can be installed on any hot spot in the cabinet. Using wireless data transmission technology, the monitoring data can be sent out in real time, and the temperature data can be transmitted to the display device or remote monitoring system through the receiving device.
Technical parameter
| Items | Features | |
|

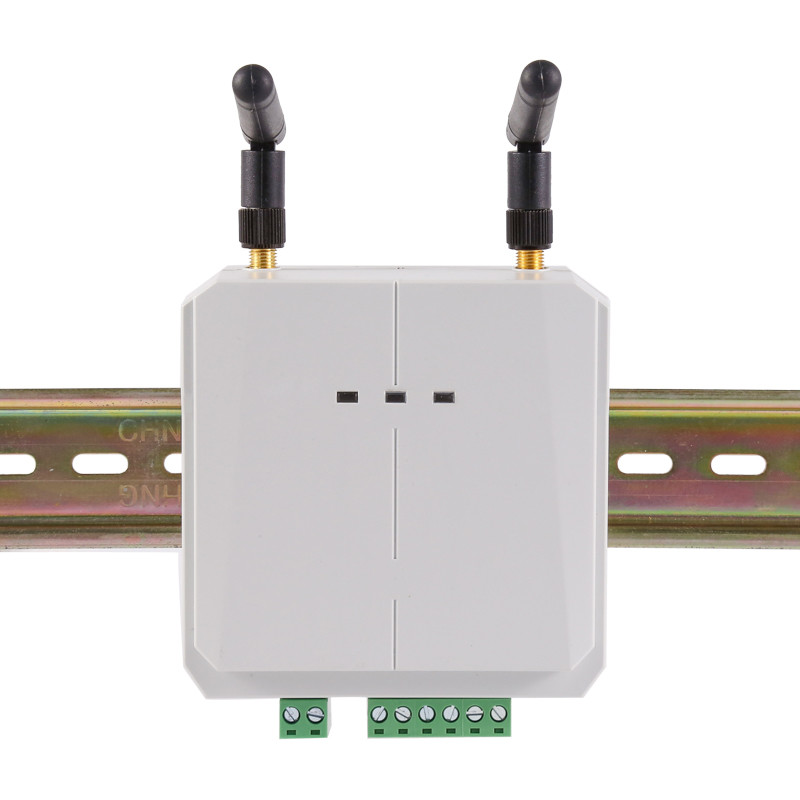

Transceiver ATC600 |
Power |
AC/DC100~265V ≤6VA ≤8VA |
| Power consumption | ≤2W | |
| Points | ≤240 points | |
| Resolution | 0.1℃ | |
| Range of temperature | -50℃~+125℃ | |
| Accuracy | ±1℃ | |
| Wireless frequency | 470M | |
| Distance | Transceiver sensor 150 m( open), repeaters distance 1 km( open) | |
| Communication port | RS485 | |
| Protocol | MODBUS-RTU | |
| Baud(bps) | 2400,4800,9600,19200 | |
| Relay output | 2 passive exits ,5 A/AC250V,5A/DC30V capacity | |
| Working environment | Temperature:-20 ℃～+55 ℃；Humidity≤95% | |
|
DO Function ● 2 Passive Relay Output ● Capacity: 5A/AC 250V, 5A/DC 30V
|
|
|
Extra RS485 Communication ● Can be connected with ATP Temp. Display Device ● Protocol: MODBUS-RTU ● Communication Distance: 400m (in practical) |
|
|
Optional Antenna Shape ● Chuck Antenna ● Baton Antenna |
|
