ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar

Minimum Order Quantity : 1 piece Price : $42.00 / Piece
Packaging Details : carton box Delivery Time : 5-7 days
Supply Ability : 6000 pieces/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ATE100

Detail Information

Wireless Transmit: 470MHz,433MHz Transmission Distance: 150 Meter
Battery -powered: 5 Years Temperature: -50℃~+125℃
Installation: Screw Bolted Certification: CE
Application: Busbar Cable Sampling Cycle: 25S
Accuracy: 1℃
Highlight:

ATE100 Wireless Temperature Monitor

,

35kV switchgear temperature sensor

,

35kV switchgear Wireless Temperature Monitor

Product Description

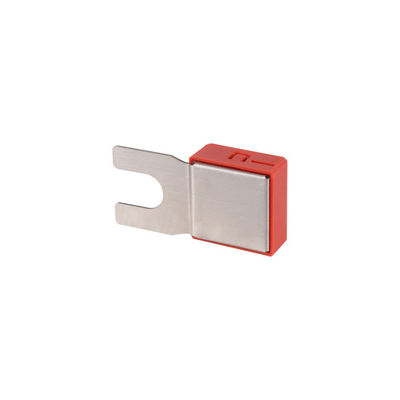

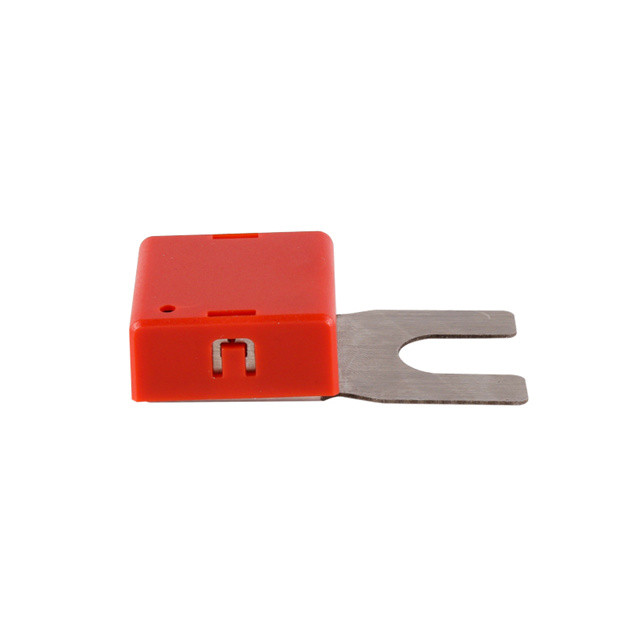

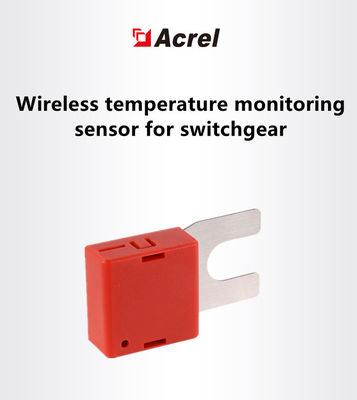

ATE100 wireless temperature sensor
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcartswitchgears, fixed switchgears and loop-net switchgears.

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 0



ATE100 wireless temperature sensor on medium voltage busbar breaker cable

● Wireless transmit,470MHz,433MHz;

● Wireless transmission distance, 150 meters in open area;

● Battery -powered, more than 5 years;

● Widely temperature measuring range, -50℃~+125℃.



Technology parameter

Acrel model ATE100 ATE100M ATE200 ATE400
Power supply Powered by battery Powered by CT
Transmission frequency 470MHZ and 433MHZ
Sampling cycle 25S 15S
Transmission cycle 5 min 15s
Measuring -50℃~+125℃
Accuracy 1℃
Communication distance 150m
Operation life 5 year(battery life) 10 year
Installation  Screw bolted Magnetic Belted fixed by compound metal
Application  circuit breaker,contact,busbar,cable





wireless temperature sensor Model

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 1



Wiring

Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy chips and fix the metal hasp in the middle of alloy chips.

Secondly, take the folded alloy chips through one silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp.

Finally, subtract the excess alloy chips.

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 2

                  ADW300 3P4W                                                             ADW300 3P3W



Typical connection-wireless temperature sensor

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 3



Certification

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 4



Company profile

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 5

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 6

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.



ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 7ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 8



At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 9

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please

contact us.

Q: What is your terms of payment ?

A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.

ATE100 Wireless Temperature Monitoring device to 11KV and 33KV Busbar 10
