Passive 470MHz Wireless Temperature Sensor Online Temperature Monitor ATE Series
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | USD 60 PCS |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T |
| Supply Ability : | 2000000 per year |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | ATC600 |
Product Description

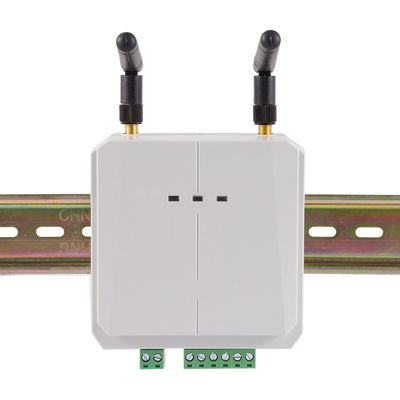

ATC600 Wireless Temperature Measurement Transceiver
● Wireless transmit,470MHz;
● Wireless distance, Receiver sensor 150m (in open area),Relay distance 1Km (in open area);
● 240 points;
● Power supply, AC/DC100~256V;
● Relay output, 2 passive output,capacity 5A/AC250V,5A/DC30V;
● RS485(MODBUS-RTU)
Parameters
| Item | Value | |
| Device Working power | AC/DC100~265V; <6VA | |
| Power Consumption | <2W | |
| Sensor | ATE100.ATE100M, ATE2OO, ATE400, ATE1OOR ATE2OOP | |
| ATC600 Transceiver | Wireless frequency | 470MHz |
| Communication distance | Receiver sensor 150m (in open area). Relay distance 1Km(in open area) | |
| Communication | RS485 MODBUS-RTU | |
| Baud rate (bps) | 2400, 4800, 9600, 19200 | |
| Relay output points | 2 passive output, capacity 5A/AC250V, 5A/DC30V | |
| Resolution Range of temperature | 240 points | |
| Precision | 0.1°C | |
| Operating temperature | Temperature:-50 °C〜+125 °C | |
| Environmental requirement | Relative humidity | <95% |
Wiring
Typical connection
