Home ProductsWireless Temperature MonitorDigital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8

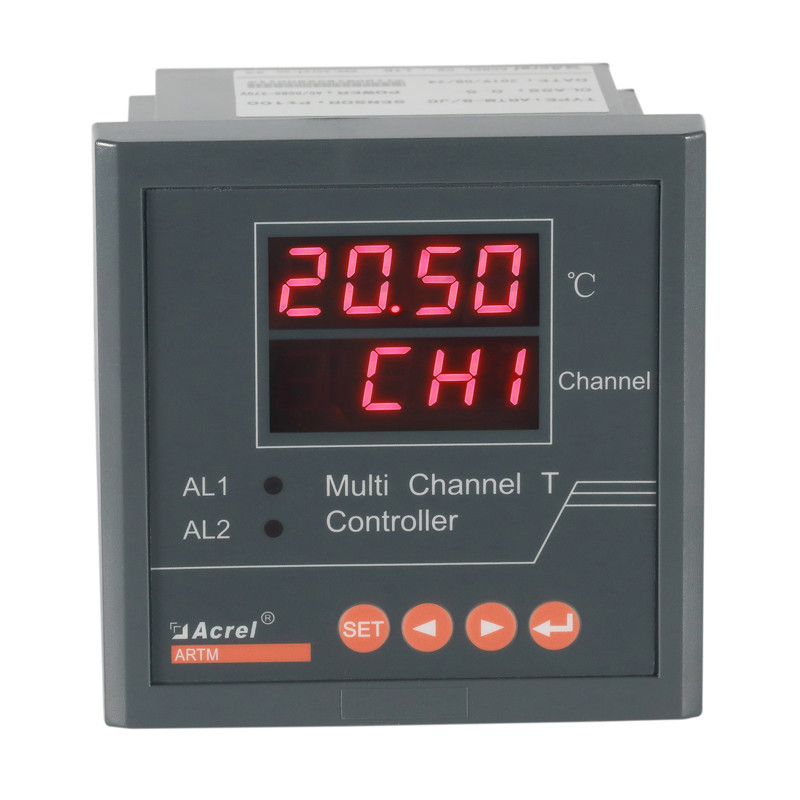

Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8
Contact Now

Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8

Minimum Order Quantity : >=1 Pieces Price : $100.00
Packaging Details : It is packed in a crash bag and then put into a cardboard box. Supply Ability : 8000 Piece/Pieces per Day
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: ARTM-8

Detail Information
Display Type: Digital Only Phase: Three Phase
Measuring Energy Range: AC85-265V/DC100-300V Accuracy Class: 0.5S
Output Voltage: AC85-265V/DC100-300V Operating Temperature: -10~55℃
Dimensions: 96*96*12.5mm Communication: RS485 Port MODBUS-RTU Protocol
Display: LED Display Channels: 8
Certificate: CE ISO9001 Function: Accuracy 0.5s
Installation: Panel Mounted Name: Multi Channel Temperature Controller
Auxiliary Power Supply: AC85-265V/DC100-300V Poewe Consumption: ≤2W
Temperature: Operating: -10~+55℃, Storage: -25~+70℃ Port: SHANGHAI
Highlight:

265V 8 Channel Temperature Controller

,

AC85v 8 Channel Temperature Controller

,

265V Multi Channel Temperature Controller

Product Description

Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 0
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 2


ARTM-8 Multi Channel Temperature Controller

● 8 PT100 measurement;

● 2 Alarm relays；

● LED display;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V;

● 1 RS485 serial communication, Modbus-RTU;
ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.
Characteristic
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 3
RS485
Modbus-RTU
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 4
LCD display
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 5
Easy wiring
Technical parameters
Item

Value
Channels

8
Inputs

Thermal resistance:Pt100
Accuracy

0.5s
Auxiliary Power supply
Voltage
AC85~265V,DC100~350V

Consumption
≤2W
Alarm
Channels
2 groups normally open

Capacity
AC250V/5A,DC30V/5A
Communication
Protocol
MODBUS-RTU

Interface
RS485

Baud rate(bps)
Can choose 1200,2400,4800,9600,19200,1200
Isolation

2kV/1min AC effective value
Environment
Temperature
Working -10~55℃,Storage:-25~70℃

Humidity
≤95%,No dew,no corrosive gas place

Altitude
≤2000m
LED Display
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 6
Function
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 7
Accuracy
0.5s

Channels
8 PT100 measurement

Inputs
Thermal resistance: Pt100

Output
2 Alarm relays

Output of relay
Set the alarm direction and alarm value
Appearance
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 8
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 9
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 10
Wiring
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 11
Typical connection
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 12
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 13
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 14
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 15
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 16

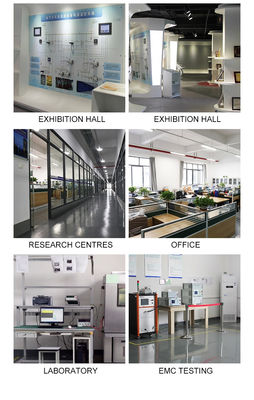

Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd.
baojingjun@email.acrel.cn
Address:No.5,Dongmeng Road,Nanzha Town,Jiangyin City,Jiangsu Province.
Digital Display AC85-265V Multi 8 Channel Temperature Controller ARTM-8 17
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
