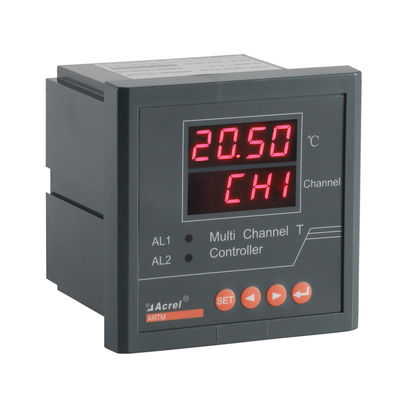

Accuracy 0.5s 8 PT100 Measurement Multispan Temperature Controller ARTM-8

Contact Now

Accuracy 0.5s 8 PT100 Measurement Multispan Temperature Controller ARTM-8

Minimum Order Quantity :	1 pcs	Price :	USD 100/PCS
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	ARTM-8

Detail Information
Channels:	8 PT100 Measurement	Accuracy:	0.5s
Inputs:	Thermal Resistance: Pt100	Output:	2 Alarm Relays
Output Of Relay:	Set The Alarm Direction And Alarm Value	Temperature:	-40℃~125℃
Humidity:	≤95%
Highlight:	0.5s Multispan Temperature Controller , 8 PT100 Multispan Temperature Controller , 0.5s multi channel temperature controller

Product Description

ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.

Technical Features

Items		Features
Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	atmospheric pressure	86kPa~106kPa
ATE100M/100/200 Active wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	Magnetic / bolted /Belt
	Range of temperature	-50℃~+125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
	Battery life	≥5 years
400 Passive wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	15s
	Transmission frequency	15s
	Power source	CT-powered, starting current≥5A

	Installation	alloy chip fixing
	Sensor probe	alloy bottom
	Range of temperature	-50℃~125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
ATE100P/200P Outdoor wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	bolted /Belt
	Range of temperature	-50℃~+150℃
	Precision	±0.5℃
	Application	Voltage switchgears
	Battery life	≥5 years
	Protection level	IP68

Writing

Accuracy 0.5s 8 PT100 Measurement Multispan Temperature Controller ARTM-8 0

Typical Connection

Accuracy 0.5s 8 PT100 Measurement Multispan Temperature Controller ARTM-8 1
