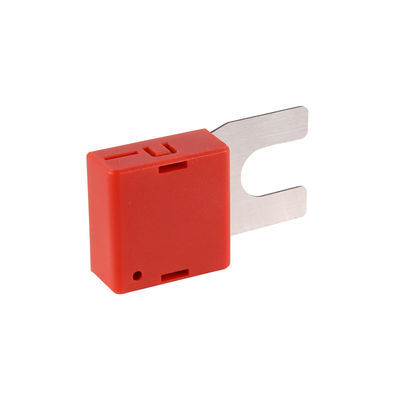

CT Powered 2.4GHz Remote Temperature Monitoring Device for switchgears

Minimum Order Quantity :	1 pcs	Price :	USD 60/PCS
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	ATE-100

Detail Information
Wireless Transmit:	2.4GHz	Wireless Transmission Distance:	10 Meters
Fast Sampling Frequency:	25s	Battery -powered:	More Than 5 Years
Power Source:	CT-powered, Starting Current≥5A	Temperature:	-40℃~125℃
Humidity:	≤95%
Highlight:	CT Powered Remote Temperature Monitoring Device , 2.4GHz Remote Temperature Monitoring Device , CT Powered switchgear temperature sensor

Product Description

ATE100 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

Technical Features

Items		Features
Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	atmospheric pressure	86kPa~106kPa
ATE100M/100/200 Active wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	Magnetic / bolted /Belt
	Range of temperature	-50℃~+125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
	Battery life	≥5 years
400 Passive wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	15s
	Transmission frequency	15s
	Power source	CT-powered, starting current≥5A

	Installation	alloy chip fixing
	Sensor probe	alloy bottom
	Range of temperature	-50℃~125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
ATE100P/200P Outdoor wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	bolted /Belt
	Range of temperature	-50℃~+150℃
	Precision	±0.5℃
	Application	Voltage switchgears
	Battery life	≥5 years
	Protection level	IP68

Installation

CT Powered 2.4GHz Remote Temperature Monitoring Device for switchgears 0

Typical Connection

CT Powered 2.4GHz Remote Temperature Monitoring Device for switchgears 1
