ABS BR Series Rogowski Coil Current Transformer CT

Contact Now

ABS BR Series Rogowski Coil Current Transformer CT

Minimum Order Quantity :	1	Delivery Time :	5-8 work days
Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	Acrel
Certification:	CE	Model Number:	BR Series Rogowski Coil Current Transformer

Detail Information
Measurement Range:	0-10000A	Environment:	Outdoors Or Indoors
Standards:	IEC/EN61869-1, IEC/EN61869-2	Secondary Current:	200mV
Dcr:	355 Ω	Single Gross Weight:	0.400 Kg
Coil Structure:	Toroidal	Material:	ABS
Case:	Plastic	Load Capacity:	≤5VA (secondary 5A); ≤1VA (secondary 1A)
Protection Level:	IP30	Hole Size:	20
Input:	0-10000A	Core:	Permalloy
Operating Temperature:	-20°C To 60°C
Highlight:	ABS Rogowski Coil Current Transformer , BR Series Rogowski Coil Current Transformer , Rogowski Coil Current Transformer CT

Product Description

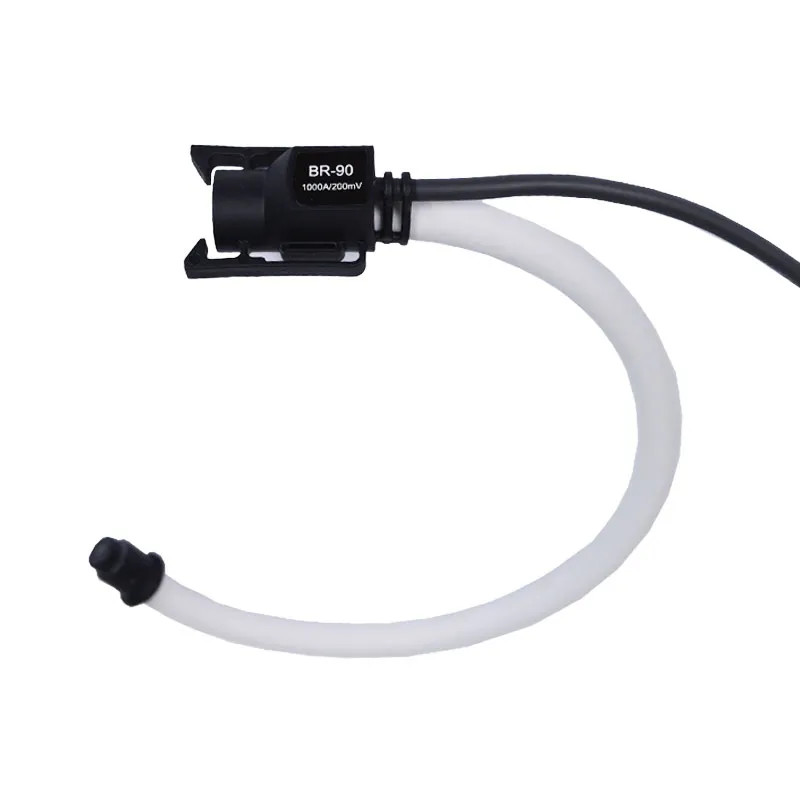

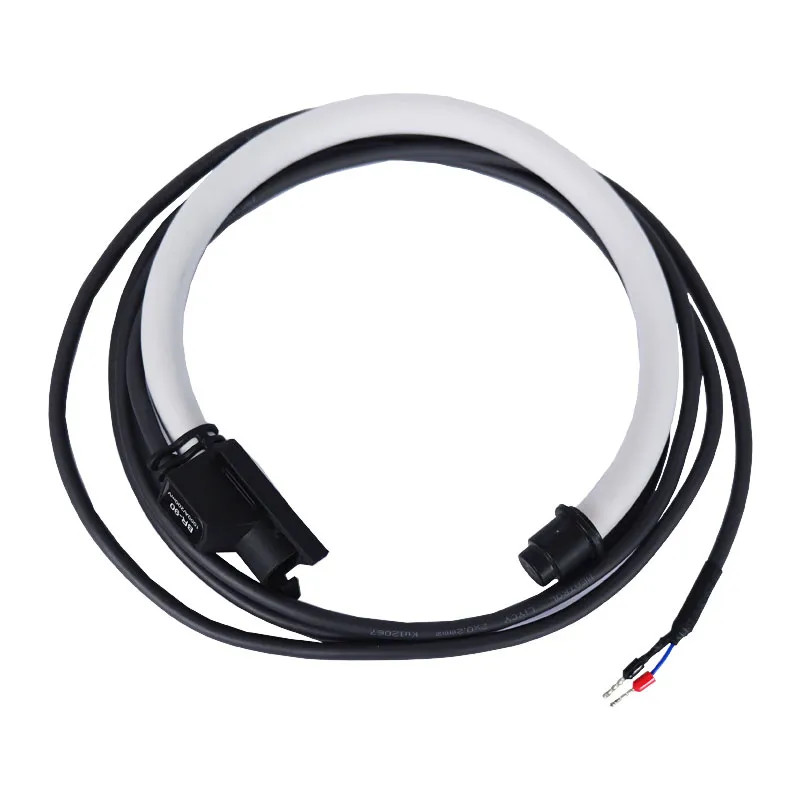

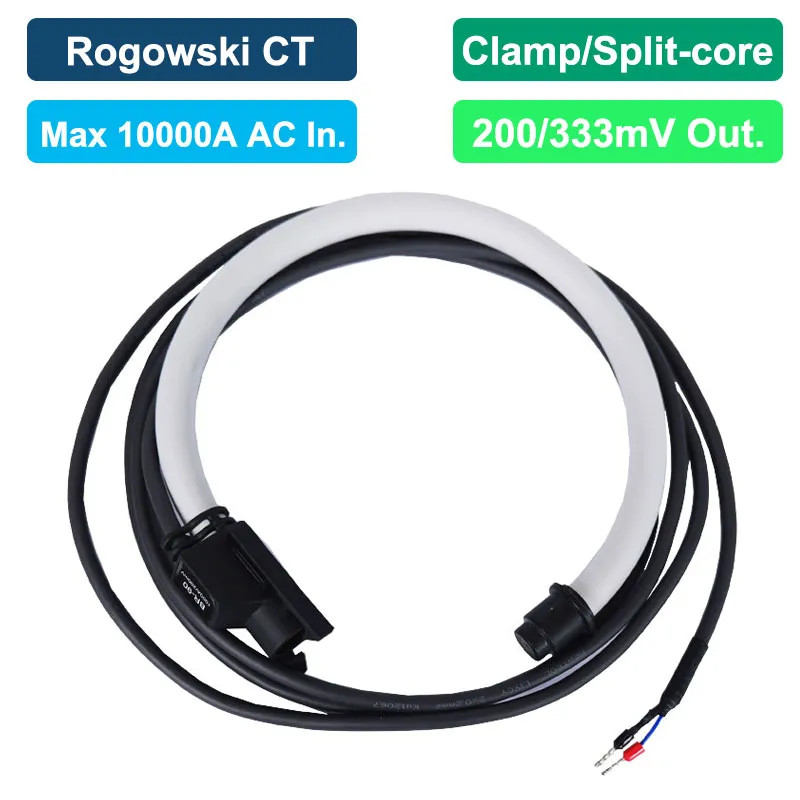

BR Series Rogowski Coil Current Transformer

● Measurement: Alternating Current (AC)

● Installtion: Clamp-on easy installation

● Primary Current Input: Max 10000A AC
● Secondary Current Output: 200mV/333mV

● Perforation Size: 90/150/200/300 mm

Series Overview

Dimension

Noted: The secondary signal output line is 2x0.2mm² cable with length of 2m ± 10cm.

Installation Instruction

Noted: The clamping up installation direction of CT must be according to the actual forward current direction. [Normally consider the direction from source to loads as forward current direction]
