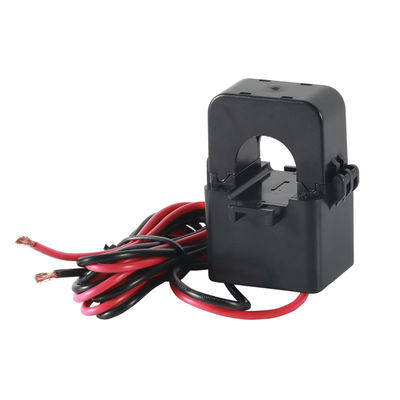

IP30 dia 24mm Split Core Current Transformer / Electric Current Sensor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
Detail Information |
|||
Certification: | CE | Current Ratio: | 150/5 |
---|---|---|---|
Accuracy: | 0.5 | Burden: | 1 |
Diameter: | Φ24mm | Rated Secondary Current: | 5A/1A |
Rated Frequency: | 50/60Hz | Protection Level: | IP30 |
Highlight: | 660V Sct Current Transformers,660V split type ct |
Product Description
AKH-0.66/K-Φseries open type current transformer
This current transformer is beautiful in appearance, easy to install and connect.It is mainly used in power operation and maintenance and power transformation projects. It usually outputs small current signals such as 0-100mA. It has the advantages of small size, high accuracy, strong carrying capacity and convenient installation. It can be used in conjunction with AMC16 multi-loop monitoring instrument.
AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids. Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc. They save the manpower, material resources and financial resources and improve the efficiency of users.
* Aperture: 24mm
* Rated secondary current: 5A/1A
* Rated primary current: 100A-300A
* Maximum system voltage: 720V AC
* Rated frequency: 50/60Hz
* Protection level: IP30
Split core current transformer model
Type | Ratio | Class & Burden(VA) | Diameter | |
class 0.5 | class 1 | |||
AKH-0.66/K-Φ24 | 150-200A/5A(1A) | 1 | Φ24mm | |
250-300A/5A(1A) | 1.5 | Φ24mm | ||
AKH-0.66/K-Φ36 | 300-400A/5(1)A | 1.5 | Φ36mm | |
500-600A/5(1)A | 1.5 | Φ36mm | ||
AKH-0.66/K-Φ50 | 600-700A/5(1)A | 2.5 | Φ50mm | |
800-900A/5(1)A | 5 | Φ50mm | ||
1000A-1200A/5(1)A | 10 | Φ50mm |
Wiring
AKH-0.66/K-Φ series split current transformer application.Split current transformer has the advantages of small size, high accuracy, strong load capacity, easy installation, etc.
Certification
Company profile
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please
contact us.
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.
