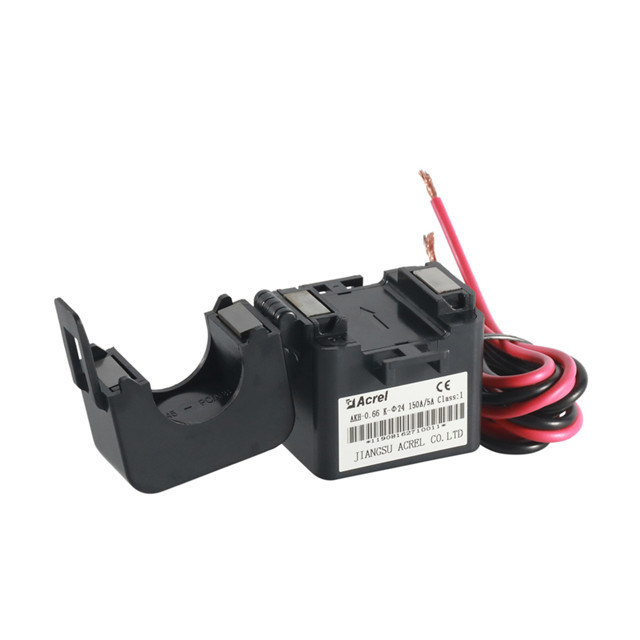

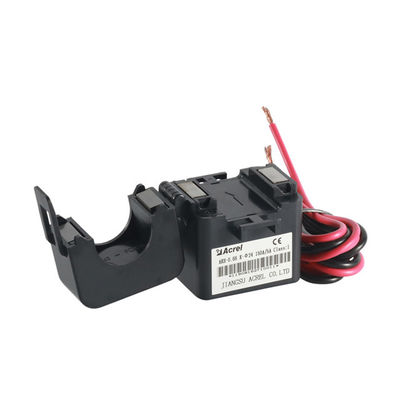

Silicon Steel Split Core Current Transformer OEM 5A

Contact Now

Silicon Steel Split Core Current Transformer OEM 5A

Minimum Order Quantity :	1	Delivery Time :	5-8 work days
Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	Acrel
Certification:	ul	Model Number:	AKH-0.66/K-φ24

Detail Information
Standard Input Current:	7-150A	Model No:	YB23
Current Ratio:	150/5	Core:	Silicon Steel
Clamp Open Diameter:	24mm	Color:	Orange Or Black
Oem:	Yes	Output:	5A
Winding Form:	Single Layer & Tightly Wound Type	Perating Frequency:	50-60Hz
Core Material:	Silicon Steel	Input:	7-150A
Coil Section:	24mm	Secondary Winding:	Copper
Internal Structure:	Epoxy
Highlight:	5A Split Core Current Transformer , Silicon Steel Split Core Current Transformer , OEM Split Core Current Transformer

Product Description

Split Core Current Transformer AKH-0.66/K-φ24

● Measurement: Alternating Current (AC)

● Accuracy: Class 0.5

● Primary Current Input: 60~400A AC

● Rated Voltage: 660V AC

● Rated Frequency: 50~60Hz

● Installtion: Clamp-on (installed on Cable)

● Loop Count: 1 Loop

● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
