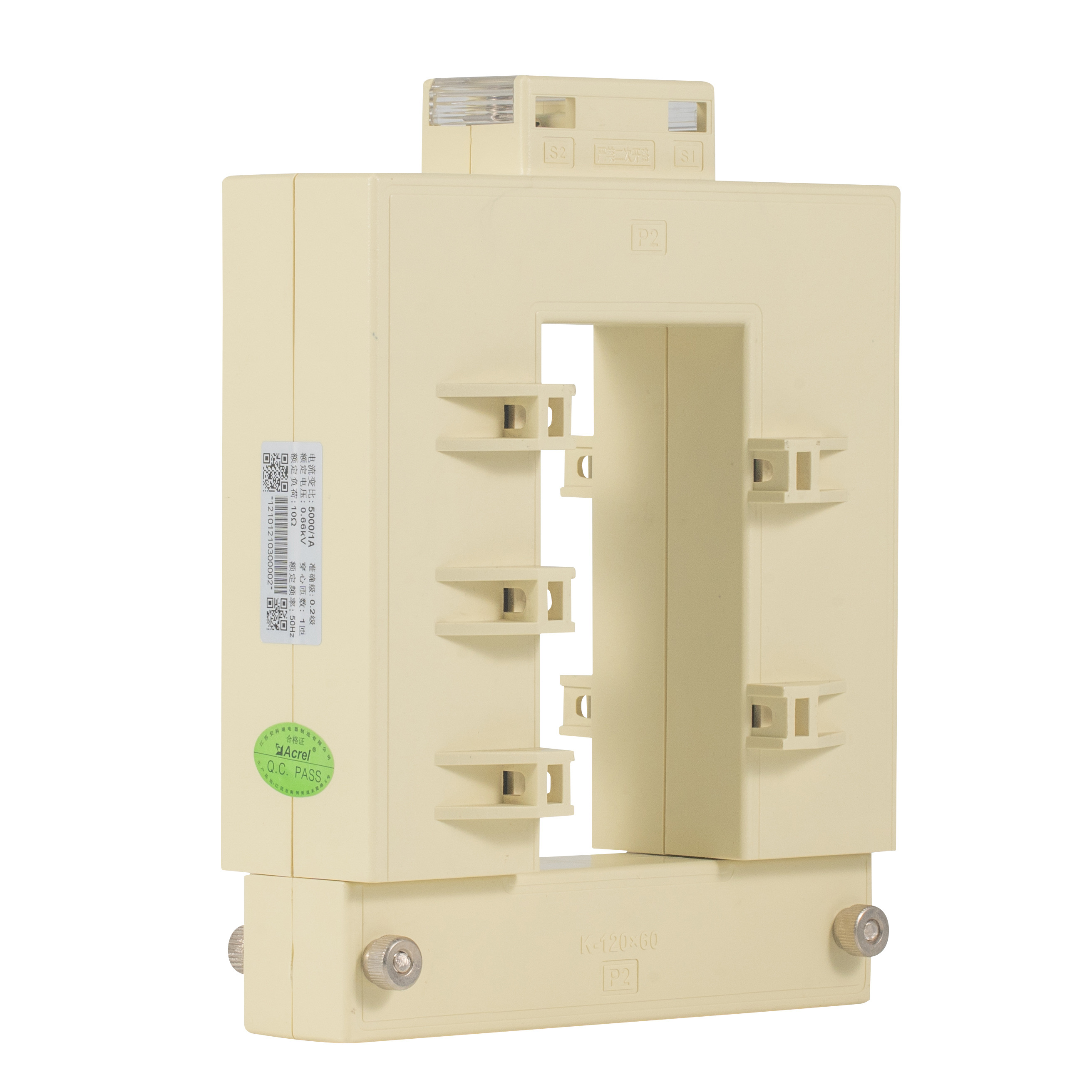

Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: UL/CE Model Number: AKH-0.66/K K-120*60 2000

Detail Information

Input Current: 2000A Output Current: 1/5A
Type: Split Core Current Transformer
High Light:

Cable Split Core Current Transformer

,

2000A Split Core Current Transformer

,

Busbar Split Core Current Transformer

Product Description

AKH-0.66/K Series Split Core Current Transformer



AKH -0.66K series open-type current transformers are mainly used in industrial urban and rural power grid reconstruction projects.
They are easy to install and do not need to disassemble the primary busbar. They can also be used for live measurement and metering devices. operation, without affecting the normal electricity consumption of customers, saving manpower, material and financial resources for user transformation projects, and improving efficiency. This series of current transformers can be used in conjunction with relay protection measurement and metering devices.



Size and dimensions


Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 0



Size(mm)

Specification
Outline size Through size Mountng size Tolerance
W H D a e P Q
K-30×20 90 114 40 22 32 50 32 ±1
K-60×40 114 140 36 42 62 45 33
K-80×40 122 162 40 42 82 45 33
K-80×50 114 159 36 52 82 45 32
K-80×80 144 159 36 82 82 45 33
K-120×80 144 194 52 42 102 56 36
K-120×60 164 214 52 62 122 56 36
K-100×40 144 199 36 82 122 45 32
K-130×40 144 224 52 42 132 56 36
K-130×50 145 222 50.5 54 130 56 36
K-130×60 170 222 70 60 130 56 36
K-140×60 164 234 52 62 142 56 36
K-160×80 184 254 52 82 162 56 36
K-200×80 184 294 52 82 202 56 36



4.Cross-reference tables of spec.-parameter

Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 1 Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 2 Type Rated current ratio(A) Precision degrec Rated load,VA
K-30×20 20-75/1A   0.2
100-150/5(1)A   1
200/5(1)A 1 1.5
250-300/5(1)A 0.5 1.5
350-400/5(1)A 0.5 2.5
K-60×40 250-300/5(1)A 1 1.5
350-450/5(1)A 0.5 1.5
500-800/5(1)A 0.5 2.5
1000-1250/5(1)A 0.5 5
1500-2000/5(1)A 0.5 10
K-80×40 350-450/5(1)A 0.5 2.5





Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 3Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 4



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 5



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 6



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 7



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 8

Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 9



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 10



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 11



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 12



  500-800/5(1)A 0.5 5.0
1000-2000/5(1)A 0.5 10
2500/5(1)A 0.2 10



K-80×50
250-300/5(1)A 1 1.5
400-450/5(1)A 0.5 1.5
500-800/5(1)A 0.5 2.5
1000/5(1)A 0.5 5
K-80×80 250-300/5(1)A   1.5
400-450/5(1)A 0.5 1.5
500-800/5(1)A 0.5 2.5
1000/5(1)A 0.5 5
K-100×40 1000-2000/5(1)A 0.5 10
2500-3000/5(1)A 0.2 10
4000A/5(1)A 0.2 15
K-120×60 400-450/5(1)A 0.5 2.5
500-800/5(1)A 0.5 5.0
1000-2000/5(1)A 0.5 10
2500-4000/5(1)A 0.2 10
K-120×80 500-800/5(1)A 0.5 2.5
1000-1200/5(1)A 0.5 5
1250-1500/5(1)A 0.5 7.5
K-130×40 1000-2000/5(1)A 0.5 10
2500-4000/5(1)A 0.2 10
K-130×50 1000-2000/5(1)A 0.5 10
2500-3000/5(1)A 0.2 10
4000-5000/5(1)A 0.2 15
K-130×60 1000-2000/5(1)A 0.5 10
2500-5000/5(1)A 0.2 15
K-140×60 1000-2000/5(1)A 0.5 10
2500-3000/5(1)A 0.2 10
4000-5000/5(1)A 0.2 15
K-160×80 1000-2000/5(1)A 0.5 10
2500-3000/5(1)A 0.2 10
4000-5000/5(1)A 0.2 15
K-200×80 1000-2000/5(1)A 0.5 10
2500-3000/5(1)A 0.2 10
4000-5000/5(1)A 0.2 15



Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 13Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 14

Acrel AKH-0.66/K K-120*60 Square Type Split Core Current Transformer 2000A Used For Busbar/cable 15
