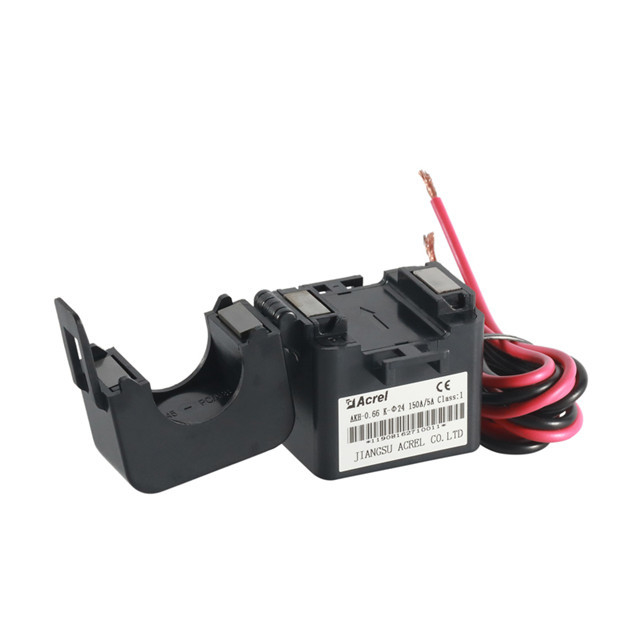

Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AKH-0.66/K-Φ

Detail Information

Product Name: Split Core Current Transformer Rated Primary Current: Ranging Up To 1000A
Certificate: CE ROHS UL Rated Secoundary Current: 1/5A
Accuracy: 0.5
Highlight:

5/1a Split Core Current Transformer

,

AKH-0.66/K Split Core Current Transformer

,

Open Loop Split Core Current Transformer

Product Description

AKH-0.66/K ct split core current transformer



Product feature

    The product has beautiful appearance, convenient installation and wiring, and is mainly used for power operation and maintenance and electricity transformation projects. The general output is AC 5A standard signal, which has the advantages of small size, high precision, strong load capacity and convenient installation. Save manpower, material and financial resources and improve efficiency for user transformation projects.



Parameters

Type Ratio(A)
Precision degree

and corresponding

rated load (VA)
Circle Hole Size(mm) Voltage
K-Φ24 (150-200)/5


1 1 Φ24 3kV
(250-300)/5   1.5
K-Φ36 (300-400)/5   1.5 Φ36
(500-600)/5 1.5
K-Φ50 500A/5(1)A 1.5   1 Φ50
(600-700)A/5(1)A 2.5   1
(800-900)A/5(1)A 5   1
1000A/5(1)A 10   1



Details




Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 0

Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 1Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 2Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 3Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 4Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 5Acrel AKH-0.66/K Ct Split Core Current Transformer Open Loop Current Sensor 5/1a Output 6
