IP30 dia 24mm Split Core Current Transformer / Electric Current Sensor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1pc | Packaging Details : | carton |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | T/T |
| Supply Ability : | 5000pc/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AKH-0.66-Z-3×Φ20 100/5 |
|
Detail Information |
|||
| Hole Size: | 20 | Rated Current Ratio: | 100/5 |
|---|---|---|---|
| Highlight: | Air Compressor Current Transformer,Three Phase Connect Current Transformer |
||
Product Description

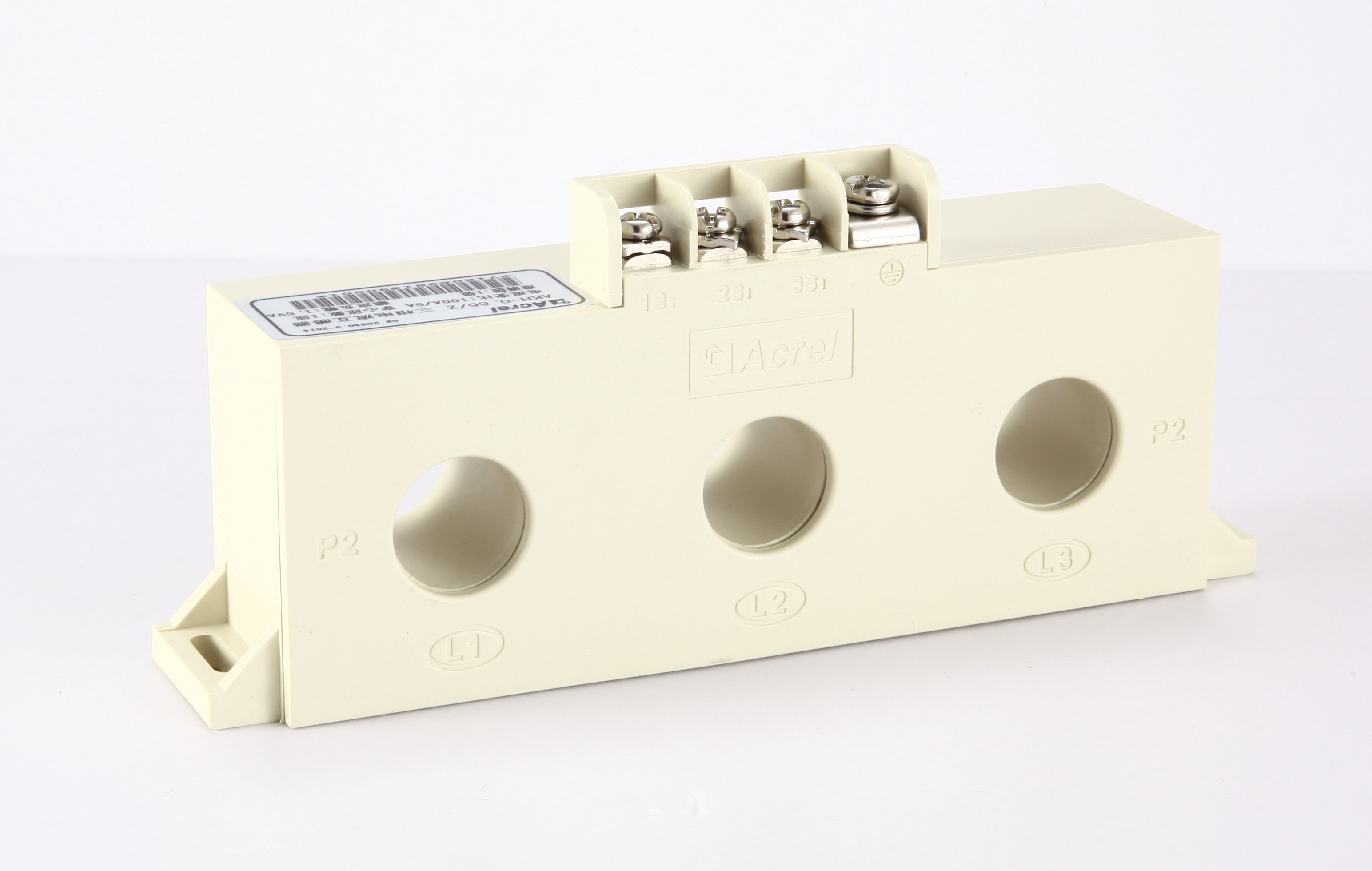

AKH-0.66/Z integrated current transforemer
Product feature
Combined current transformer is also called the three-phase current transformer. As current signal acquisition device, it is generally matched with multi-loop current monitoring device (AMC16), PZ300, moulded case circuit breaker and other products. It can save installation space, reduce the cumbersome wiring, be convenient to use and effectively reduce the cost.
| ||||||||||||||||
| Specification | ratio(A) | Precision degree and corresponding rated load (Ω) | Straight-through tums | Max. cable outer diameter (mm) | ||||||||||||
| 0.2 | 0.5 | 1.0 | ||||||||||||||
| Z-2×Φ10 | 50A/25mA | 10 | 1 | Φ10 | ||||||||||||
| Z-3×Φ20 | 5/5(1) | 1.5 | 20 | Φ20 | ||||||||||||
| 10/5(1) | 1.5 | 10 | ||||||||||||||
| 15/5(1) | 1.5 | 8 | ||||||||||||||
| 20/5(1) | 1.5 | 5 | ||||||||||||||
| 25-30/5(1) | 1.5 | 4 | ||||||||||||||
| 50-75/5(1) | 1.5 | 2 | ||||||||||||||
| 100/5(1) | 1.5 | 1 | ||||||||||||||
| 150/5(1) | 1.5 | 1 | ||||||||||||||
| 200/5(1) | 2.5 | 1 | ||||||||||||||
| Z-3×Φ35 | (100-150)A/5(1)A | 2.5 | 1 | Φ35 | Fixed by base p late screw | |||
| 200A/5(1)A | 1.5 | 1 | ||||||
| 250A/5(1)A | 3.75 | 1 | ||||||
| (300-450)A/5(1)A | 5 | 1 | ||||||
| (500-800)A/5(1)A | 10 | 1 | ||||||
| (1000-1250)A/5(1)A | 10 | 1 | ||||||
Dimension
