Acrel AEW100 Wireless Measurement Energy Meter Using In Low Voltage Network Remote Monitor Wireless Communication Meter

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 2-3 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AEW100

Detail Information

Product Name: Wireless Electricity Meter Rated Voltage: 110V/220V/380V
Application: Measurement Power Installation: DIN 35mm
Frequency: 45-65Hz
High Light:

Acrel AEW100 Wireless Measurement Energy Meter

,

Remote Monitor Wireless Measurement Energy Meter

Product Description

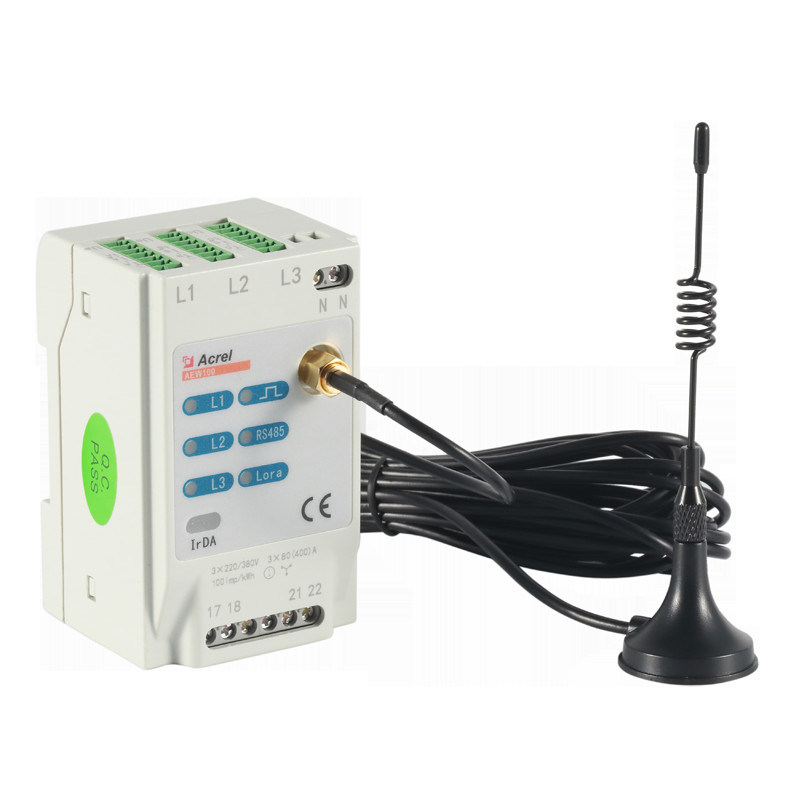

AEW100 Wireless Energy Meter



AEW100 wireless meter is mainly used to measure three-phase active energy of low-voltage network. It has RS485 communication and 470MHz wireless communication function, which is convenient for users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize sub-item electric energy measurement, statistics and analysis for different areas and different loads.



Specification






Voltage input

Reference voltage

3×220/380V, 3×380V,3×57.5/100V, 3×100V

Supply voltage AC 57V~380V
Reference frequency 45~60 Hz
Power consumption <10VA or 2W (Phase A), <0.5VA (Phase B, Phase C)
Current input Input current 3×1.5(6)A,3×20(100)A, 3×40(200)A,3×80(400)A,3×120(600)A, 3×200(1000)A,3×400(2000)A
Starting current 4‰Ib(Level 1)
Power consumption <2VA
Measure performance Standards compliant GB/T17215.321-2008
Active energy accuracy  Level 1
Temperature accuracy  ±2℃
Pulse Pulse width 80±20ms
Pulse constant 6400imp/kWh, 400imp/kWh, 200imp/kWh, 100imp/kWh, 60imp/kWh
Communication Wireless 470MHz wireless transmission, transmission distance in open space: 1km
Infrared communication The baud rate is fixed at 1200
Interface RS485(A,B)
Medium Shielded twisted pair
Protocol MODBUS-RTU, DL/T 645-07







Dimension




Acrel AEW100 Wireless Measurement Energy Meter Using In Low Voltage Network Remote Monitor Wireless Communication Meter 0



External CT

Acrel AEW100 Wireless Measurement Energy Meter Using In Low Voltage Network Remote Monitor Wireless Communication Meter 1



Installation


Acrel AEW100 Wireless Measurement Energy Meter Using In Low Voltage Network Remote Monitor Wireless Communication Meter 2
