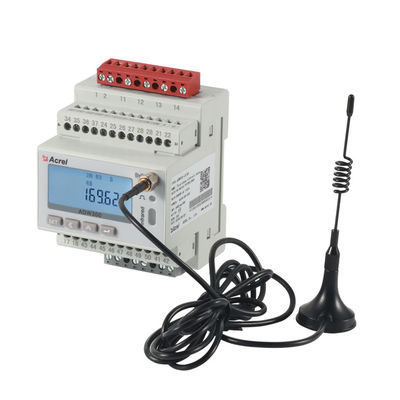

ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification
ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification
Contact Now

ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification

Minimum Order Quantity : 1 Price : USD 100-135 pcs
Packaging Details : Crash bag and then put into a cardboard box Delivery Time : 5-8 work day
Supply Ability : 6000000 pcs per year
Place of Origin: Jiangsu, China Brand Name: Acrel
Certification: ISO/CE Model Number: ADW300

Detail Information
Communication: RS485 Modbus-RTU, Infrared, 470MHzm Wireless Trabsmission, GPRS, NB-IOT Accuracy Class: 0.5S
Output Voltage: 220/380V Residual Current: 1-channel (optional L)
Auxiliary Power: AC 220V
Highlight:

470MHZ Wireless Power Meter

,

ADW300 Wireless Power Meter

,

ADW300 Din Rail Power Meter

Product Description

ADW300 Din Rail Wireless Power Meter

ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification 0
ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification 1
ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification 2
It can measure all power parameters including voltage U, current I, active power P, reactive power Q, apparent power S, power factor PF, phase angle of voltage and current Φ, voltage unbalance, current unbalance, frequency F, 2-31st fractional harmonics, odd and even total harmonics and total harmonics. Voltage U reserved 1 decimal, frequency F reserved 2 decimal, current I reserved 3 decimal, power P reserved 4 decimal, phase angle Φ reserved 2 decimal, unbalance reserved 2 decimal. Supporting 4-channel temperature measurement and residual current monitoring.



Function&Parameters

Function

Description

Model

ADW300

Rated voltage

3×220/380V, 3×380V, 3×57.7/100V, 3×100V

Reference frequency

50Hz

Power consumption

<10VA or 2W(A), <0.5VA(B, C)

Input current

3×1(6)A, 3×1.5(6)A

Start current

4‰Ib(1class)

Power consumption

<2VA

Active energy accuracy

Class 0.5S

Temperature Accuracy

±2℃

Pulse width

80±20ms

Impulse constant

6400imp/kWh

Interface

RS485

Operating temperature

-25℃~55℃

Residual electricity

1-way Residual Electricity Measurement

External CT

External open type CT

DI /DO

4DI/2DO

Three-phase unbalance

Voltage and current unbalance



Wiring

ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification 3



Typical Connection

ADW300 Din Rail RS485 And 470MHZ Wireless Power Meter CE Certification 4
