Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 2-3 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ADW200-D16-4S

Detail Information

Type: Multi Circuit Energy Meter Communication: Communication
Installation: DIN Rail Installation Certificate: CE ROHS MID
Standard: IEC62052-11/IEC62053-21
High Light:

base station energy meter

,

ct energy monitor energy meter

,

multichannel energy meter

Product Description

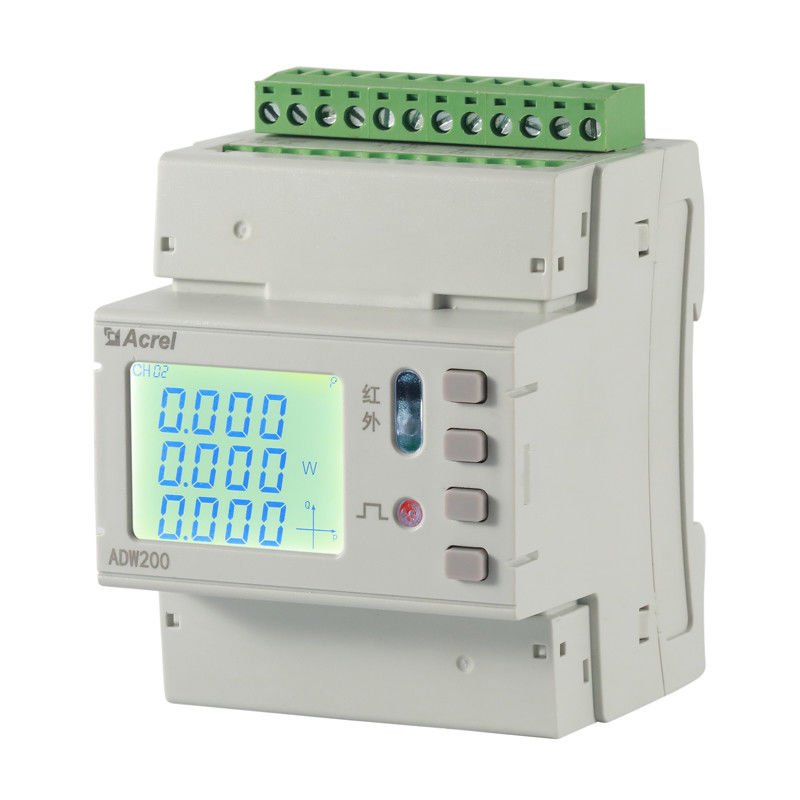

ADW200-D16-4S multichannel energy meter for base station



General

    ADW2XX series rail type multi-loop power meters are mainly used for measuring the full electric parameters of  multiple three-phase circuits, up to four three-phase loop current inputs can be connected simultaneously.It Can measure voltage and current, power, power factor, phase angle, unbalance, harmonic and other parameters.





Technical parameter




Auxiliary power AC/DC 85~265V; Consumption≤10VA;
Input Frequency 45~65Hz;
Voltage AC 3×220V/380V; Overload: 1.2 times of rated value (continuous);
2 times of rated value / 1s
consumption: ≤ 0.5VA;
Current AC 5A,100A,400A,600A;(External opening transformer);
Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
consumption: ≤ 0.5VA
Measurement Accuracy

Frequency 0.05Hz,

voltage,current: 0.5 level

active electric energy: level 1,

reactive electric energy: level 2;

2-31st times harmonic accuracy: ± 1%;

Features Pulse Output Output mode: optocoupler pulse with open collector;
Communication RS485,Modbus-RTU; Baud rate 1200~38400;
Switching Input Dry contact input,Built-in power supply;
 Output Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;
Outline L*W*H(mm) 72*97.7*71.5
Environment working temperature -10℃~+45℃
storage temperature -40℃~+70℃
relative humidity 95% No condensation
altitude 2500m







Dimension






Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 0





Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 1





Guide rail installation:






Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 2



Optional modules






Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 3



External Module (MTL)
12 External NTC Temp. Measurement
4 Channels Residual Current Measurement



Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 4



External Wireless Module(AWT100)
Downlink RS485; Uplink 4G, 2G, NB, Lora, LoraWAN, Ethernet, WiFi, GPS, Profibus

Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 5

External Module(MK)
12 Channels DI + 4 Channels DO







Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 6





Acrel ADW200-D16-4S Multichannel Energy Meter With Ct Energy Monitor Multi Channel Energy Meter For Base Station 7
