IP30 dia 24mm Split Core Current Transformer / Electric Current Sensor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1pc | Packaging Details : | carton |
|---|---|---|---|
| Delivery Time : | 2-3 work day | Payment Terms : | T/T |
| Supply Ability : | 5000pc/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AKH-0.66/K-Φ |
|
Detail Information |
|||
| Rated Frequency: | 50/60Hz | Rated Primary Current: | 300A |
|---|---|---|---|
| Rated Secondary Current: | 5A | Security Factor: | FS<5 |
| Standards: | IEC/EN61869-1,IEC/EN61869-2 | ||
Product Description

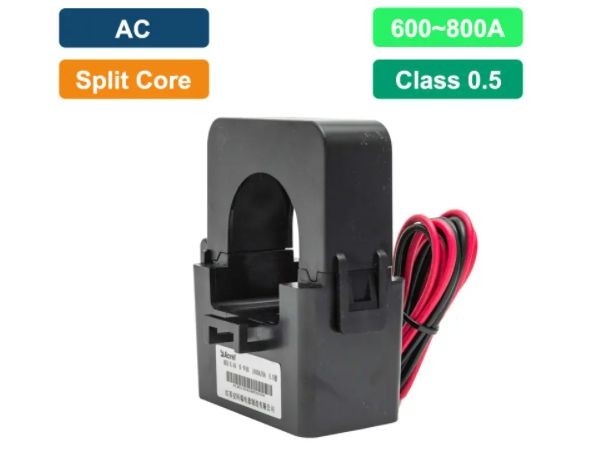

AKH-0.66/K-Φ split core current transformer
General
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the
panel meter or relay and they can help to measure the current or protect the equipment.
| Type | Rated current ratio | Accuracy class | Circle |
diameter (mm) |
|
| 0.5 class | 1 class | ||||
| K-Φ24 | (150-200)A/5(1)A | 1 | 1 | Φ24 | |
| (250-300)A/5(1)A | 1.5 | 1 | |||
| K-Φ36 | (300-400)A/5(1)A | 1.5 | 1 | Φ36 | |
| (500-600)A/5(1)A | 1.5 | 1 | |||
|
K-Φ50 |
500A/5(1)A | 1.5 | 1 |
Φ50 |
|
| (600-700)A/5(1)A | 2.5 | 1 | |||
| (800-900)A/5(1)A | 5 | 1 | |||
| 1000A/5(1)A | 10 | 1 | |||
