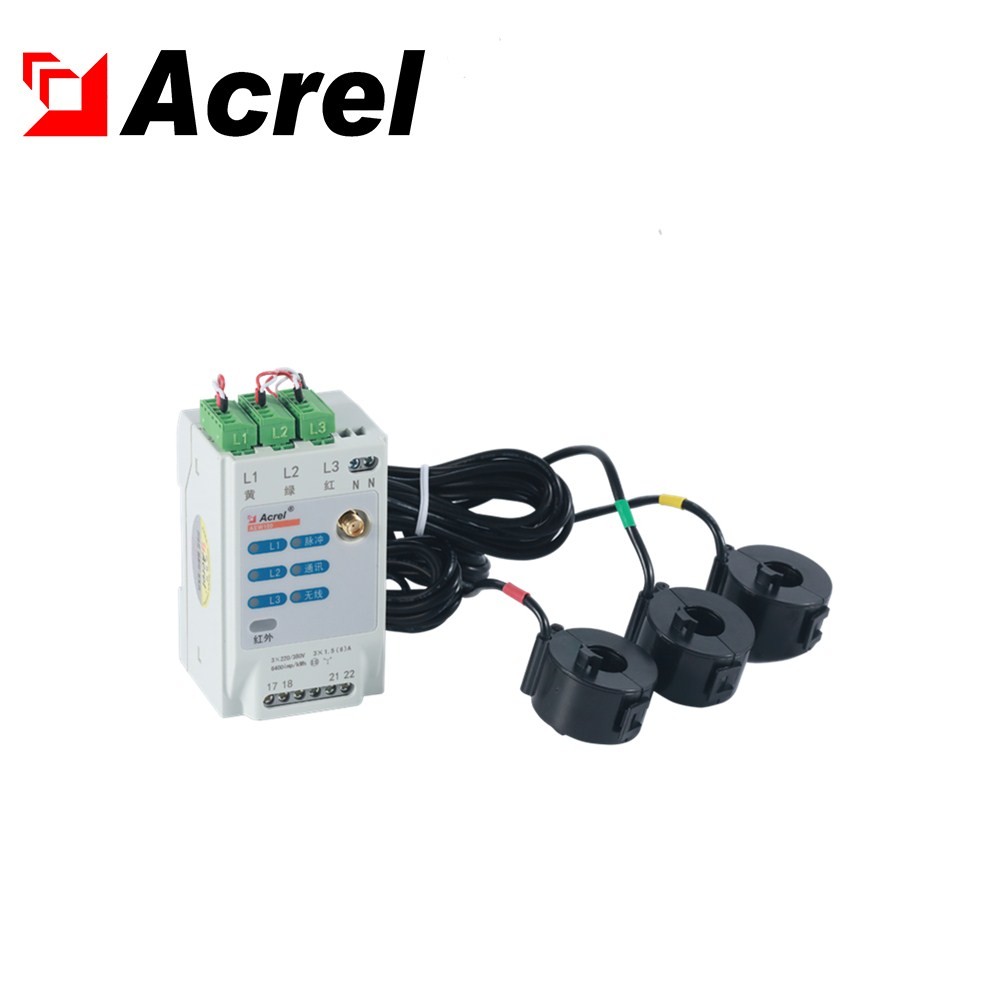

Acrel High Accuracy Multifunction Electric Energy Meter Class 1 AEW100 Wireless

Minimum Order Quantity : 1 piece Price : $105/ piece
Packaging Details : carton box Delivery Time : 2-3 work days
Payment Terms : T/T Supply Ability : 1000pcs/day
Place of Origin: Jiangsu, China Brand Name: Acrel
Certification: CE Model Number: AEW100-D20X

Detail Information

Communication: 470MHzInfrared Key Word: High Accuracy Class 1 Multifunction Electric Energy Meter AEW100 Wireless Energy Meter
Humidity: ≤95% Temperature Accuracy: ±2℃
Pulse Constant: 6400imp/kWh, 400imp/kWh, 200imp/kWh, 100imp/kWh Interface: RS485(A+,B-)AEW 100 Is A Multifunction Power Meter. There Are Functions Like RS485 Communication And Lora Communication On 470MHz. With Build-in MODBUS-RTU Protocol, AEW100 Can Match Most Of The System Integrate Requirement. AEW100 Has The Advantage Of Hig
High Light:

Multifunction Electric Energy Meter

,

Multifunction Electric Energy Meter

,

AEW100 Wireless Energy Meter

Product Description

Acrel High Accuracy Class 1 Multifunction Electric Energy Meter AEW100 Wireless Energy Meter

AEW 100 is a multifunction power meter. There are functions like RS485 communication and Lora communication on 470MHz. With build-in MODBUS-RTU protocol, AEW100 can match most of the system integrate requirement. AEW100 has the advantage of higher accuracy, more compact and easy installing.
Acrel High Accuracy Multifunction Electric Energy Meter Class 1 AEW100 Wireless 0



high accuracy Class 1 multifunction electric energy meter AEW100 wireless energy meter

● RS485 and Infrared communication

● Lora communication on 470MHz

● Rated I: 1.5(6)A,20(100)A,40(200)A,80(400)A,120(600)A

● Rated U: 3×220/380V,3*380V,3*57.7/100V

● kWh Class 1

● DIN 35 mm



Acrel High Accuracy Multifunction Electric Energy Meter Class 1 AEW100 Wireless 1



high accuracy Class 1 multifunction electric energy meter AEW100 wireless energy meter Technical parameter

Function Function description
Energy metering Active kWh (positive and negative)
Electrical measurement U, I, P, Q, S, PF, F
Pulse output (L1, L2, L3) powered display, pulse, communication, wireless status
Communication Wireless transmission on 470MHzInfrared communication
Communication interface: RS485
Voltage input Rated voltage 3×220/380V
Reference frequency 50Hz
Consumption <2VA(Each phase)
Current input Input current 3×1.5(6)A, 3×20(100)A, 3×40(200)A, 3×80(400)A, 3×120(600)A
Start current 1‰Ib(1.5(6)A), 4‰Ib
Consumption <2VA (In maximum current circumstance)
Measurement
performance
Standard CE, GB/T17215.321-2008, GB/T17215.322-2008
Active energy accuracy 1 Class, 0.5S Class(using AKH-0.66/K-15)
Temperature accuracy ±2℃
Pulse Width of pulse 80±20ms
Pulse constant 6400imp/kWh, 400imp/kWh, 200imp/kWh, 100imp/kWh, 60imp/kWh
Communication Wireless Transmission on 470MHz and maximum distance in open space is 1km
Infrared communication The constant baud rate is 1200
Interface RS485(A+,B-)
Connection mode Shielded twisted pair conductors
Protocol MODBUS-RTU
Temperature range Operating temperature -20℃~60℃
Storage temperature -30℃~70℃
Humidity ≤95%(No condensation)
Altitude <2000m



Dimension(L*W*H)

54*88*50mm
