Compact Size Class0.5 ADW350 Wireless Metering Meter High Precision
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 piece | Price : | $73/ piece |
|---|---|---|---|
| Packaging Details : | carton box | Delivery Time : | 2-3 work days |
| Payment Terms : | T/T |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | ADW300 |
|
Detail Information |
|||
| Display Type: | Analog And Digital | Phase: | Three Phase |
|---|---|---|---|
| Accuracy Class: | 0.5S | Output Voltage: | 380V/400V/660V/690V |
| Operating Temperature: | -40℃-+70℃ | Dimensions: | 72 |
| Product Name: | Wireless Electricity Meter | Wireless Solution: | NB-IoT/4G/GPRS/Lora/Lorawan |
| Installation: | 35mm Din Rail | Certificate: | IEC62052-11;IEC62053-22;LVD |
| Type: | WIRELESS | Display: | LCD Display |
| Communication: | RS485 Port MODBUS-RTU Protocol | Frequency: | 50Hz~60Hz |
| Rated Voltage: | AC 230V/400V/690V | Single Package Size : | 10X10X10 Cm |
| Single Gross Weight: | 1.000 Kg | Package Type: | Carton Box |
| Key Word: | Energy Monitoring Wireless | Comsumption: | ＜0.5 VA (Each Phase) |
| Altitude: | ＜2000m | ||
| High Light: | 3p Wifi Power Consumption Meter,Wifi Power Consumption Meter 6A,3p wireless power consumption meter |
||
Product Description

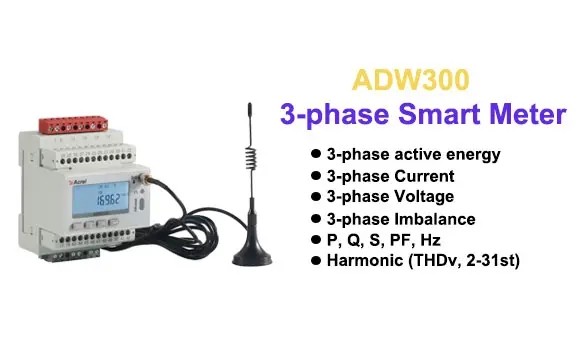

Acrel ADW300 energy monitoring wireless/3p 4 fio wifi inteligente medidor de energia
IoT wireless energy meter
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication,2G,4G,NB-IoT and 868MHZ/923MHZ/433MHZ Lora/Lorawan wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
Specification
Wireless Solution
NB-IoT : H-FDD B1 B3 B8 B5 B20
4G : LTE-FDD B1 B3 B5 B8
LTE-TDD B34 B38 B39 B40 B41
CDMA B1 B5 B8
GSM 900/1800M
2G : GSM 850
EGSM 900
DCS 1800
PCS 1900
LoRa/Lorawan : 433MHz
470MHz
868MHz
915MHz
923MHz
Dimensions
Company Information
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
