Compact Size Class0.5 ADW350 Wireless Metering Meter High Precision
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 pcs | Price : | USD 100-130/pcs |
|---|---|---|---|
| Packaging Details : | Individually packed in big carton | Delivery Time : | 3 days |
| Supply Ability : | 10000/month |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AEW100 |
|
Detail Information |
|||
| Active Energy: | Class 1 | Auxiliary Power Supply: | 220V AC |
|---|---|---|---|
| Range: | 50HZ | Dimension(L*W*H): | 54*88*50mm |
| Consumption: | <2VA | Wireless: | Transmission On 470MHz And Maximum Distance In Open Space Is 1km |
| Starting Current: | 4‰Ib（class 1） | ||
| High Light: | 50HZ Wireless Energy Meter,220VAC Wireless Energy Meter,220VAC wireless kwh meter |
||
Product Description

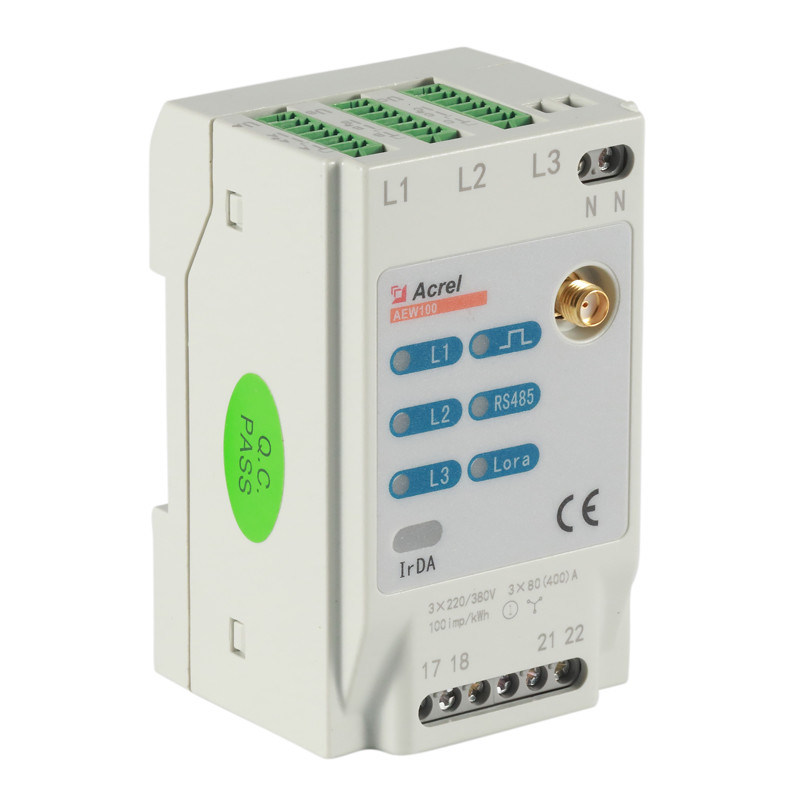

AEW 100 is a multifunction power meter. There are functions like RS485 communication and Lora communication on 470MHz. With build-in MODBUS-RTU protocol, AEW100 can match most of the system integrate requirement. AEW100 has the advantage of higher accuracy, more compact and easy installing.
Technical Features
ADW2xx series subject Technical parameter
| Auxiliary power | AC/DC 85～265V;consumption≤10VA; | |
| Input | Frequency | 45～65Hz; |
| Voltage |
AC 3×220V/380V; Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; Power consumption:≤ 0.5VA; |
|
| Current |
AC 5A,100A,400A,600A;(External opening transformer); Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s; Power consumption:≤ 0.5VA; |
|
| measurement accuracy |
Frequency 0.05Hz, voltage and current 0.5 level, active electric energy level 1, reactive electric energy level 2; 2-31 times harmonic accuracy: ± 1%; |
|
Features |
Pulse output | Output mode: optocoupler pulse with open collector; |
| Communication | RS485,Modbus-RTU;Baud rate 1200～38400; | |
| Switching Input | Dry contact input,Built in power supply; | |
| Switching Output |
Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A; |
|
ADW2xx series Module technical parameters
| Switching Module | Power | RJ45 interface,DC 12V,Power consumption≤1W; |
| Communication | RJ45 interface,Modbus-RTU;(Communication with the main Part) ; | |
| Switching input | Dry contact input,Built in power supply; | |
| Switching output |
Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A; |
|
| Temperature and leakage module | Power | RJ45 interface,DC 12V,Power consumption≤1W; |
| Communication | RJ45 interface,Modbus-RTU;(Communication with the main Part) ; | |
| Temperature measurement | -20～100℃ | |
| Leakage measurement | 10～3000mA; | |
| Measurement accuracy | temperature ±2℃,Leakage1.0%; |
