ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series
ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series
Contact Now

ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series

Minimum Order Quantity : 1 Price : USD 5-17 PCS
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 20000000 per year
Place of Origin: Jiangsu, China Brand Name: Acrel
Certification: ISO/CE Model Number: AKH-0.66

Detail Information
Highlight:

ISO9001 Split Core Current Transformer

,

Split Core Current Transformer 600a

,

ISO9001 600a Split Core Ct

Product Description

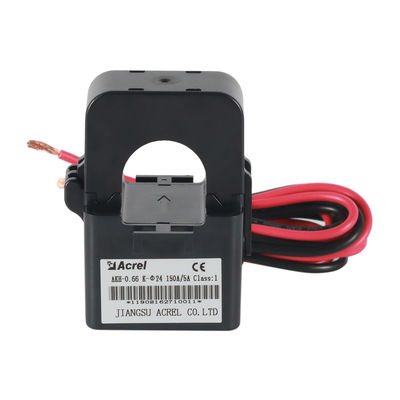

AKH-0.66/K-Φ Series Current Transformer

● Split core current transformer

● Accuracy: class 0.5

● Suitable for electricity renovation project



Standards

IEC/EN61869-1, IEC/EN61869-2


Characteristic

ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series 0

ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series 1

ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series 2

● Security factor: FS＜5

● Maximum system voltage: 720V AC

● Test voltage: 3kV AC(1min)

● Rated frequency: 50/60Hz

● Rated short-time thermal current: Ith=40~60In

● Rated dynamic current: Idyn=2.5Ith

● Rated secondary current: X/5A (X/1A upon request)

● Rated primary current: Ranging up to 6000A

● Continuous overload: 120%In

● Protection level: IP30

● Casing: Non-flammable, polycarbonate self-extinguishing ABS

● Environment:

Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH



Technical Parameters

item
Value
Place of Origin
China
Brand Name
Acrel
Model Number
AKH-0.66/K
Usage
Current
Phase
Three
Coil Structure
TOROIDAL
Coil Number
AUTOTRANSFORMER
Product name
AKH-0.66/K Series Current Transformer
Certification
CE,ISO9001
Rated frequency
50/60Hz
Security factor
FS<5
Continuous overload
120%In
Environment Operating temperature
-25℃-+50℃
Test voltage
3kV AC(1min)
Maximum system voltage
720V AC
Rated short-time thermal current
Ith=40~60In
Protection level
IP30



Specifications

ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series 3
