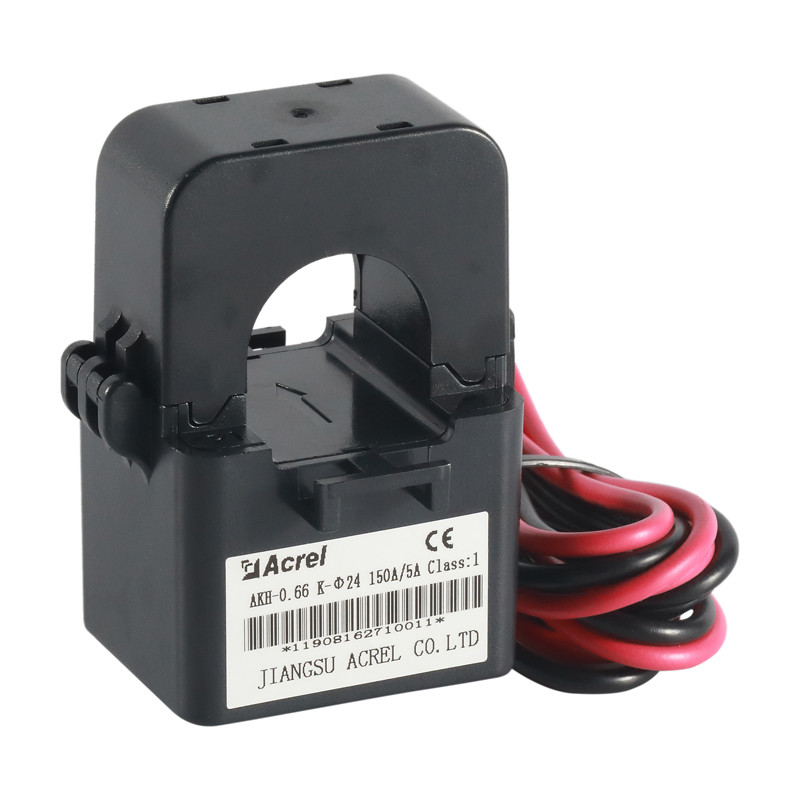

IP30 dia 24mm Split Core Current Transformer / Electric Current Sensor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 pcs | Price : | USD 5-17/pcs |
|---|---|---|---|
| Packaging Details : | Individually packed in big carton | Delivery Time : | 3 days |
| Supply Ability : | 10000/month |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AKH-0.66/K-Φ |
|
Detail Information |
|||
| Accuracy: | Class 0.5 | Standards: | IEC/EN61869-1, IEC/EN61869-2 |
|---|---|---|---|
| Security Factor: | FS＜5 | Maximum System Voltage: | 720V AC |
| Test Voltage: | 3kV AC(1min) | Rated Frequency: | 50/60Hz |
| Rated Short-time Thermal Current: | Ith=40~60In | Rated Dynamic Current: | Idyn=2.5Ith |
| High Light: | Split Core Current Sensor 60Hz,Class 0.5 Split Core Current Sensor |
||
Product Description
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.
Specifications
| Type | Ratio(A) | Burden(VA) | Size(Unit:mm) | |||
| Class 0.2 | Class 0.5 | Class 1.0 | ||||
|
K-Φ24 | 150/5 | 1 | |
||
| 200/5 | 1 | |||||
| 250/5 | 1.5 | |||||
| 300/5 | 1.5 | |||||
| K-Φ36 | 300/5 | 1.5 | |
|||
| 400/5 | 1.5 | |||||
| 500/5 | 2.5 | |||||
| 600/5 | 2.5 | |||||
