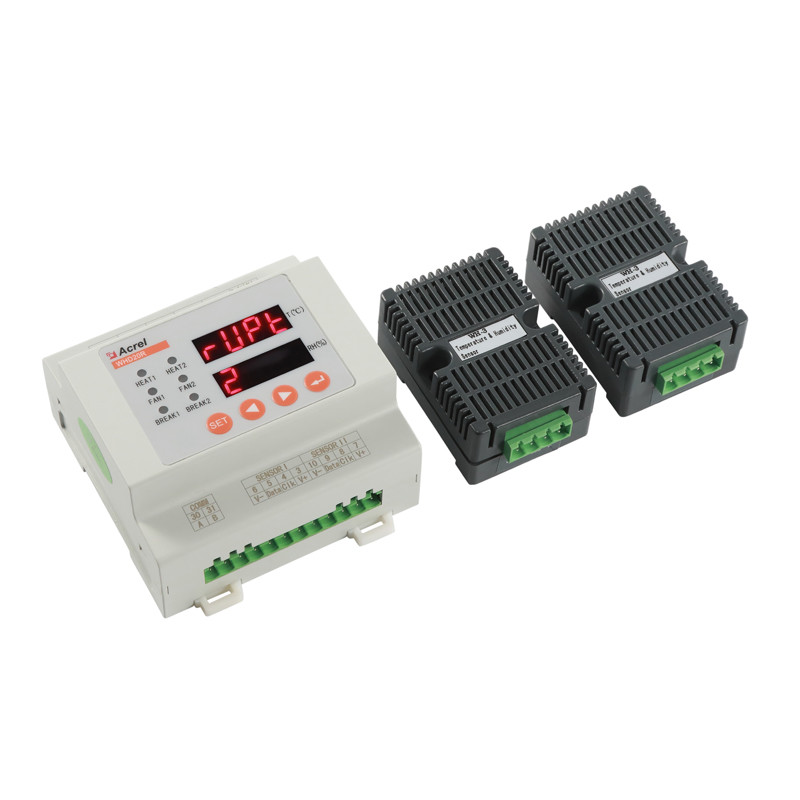

Acrel WHD20R-22 intelligent smart digital Temperature and Humidity Controller

Contact Now

Acrel WHD20R-22 intelligent smart digital Temperature and Humidity Controller

Name: Acrel WHD20R-22 intelligent smart digital Temperature and Humidity Controller
Brand: Acrel
SKU: WHD20R-22
Price: 50.00 USD
Availability: InStock
Rating: 4.5 (135 reviews)

Minimum Order Quantity :	1-19 Pieces	Price :	$50.00

Place of Origin:	Jiangsu, China	Brand Name:	Acrel
Certification:	CE	Model Number:	WHD20R-22

Detail Information
Warranty:	2 Years	Customized Support:	ODM
Display:	LED Display	Communication:	RS485 Port MODBUS-RTU Protocol
Installation:	35mm Din Rail	Function:	Measurement
Temperature Range:	-40.0℃~99.9℃	Humidity Range:	20%RH~90%RH
Certificate:	CE ISO9001	Contact Capacity:	5A/AC250V
Power Supply:	AC 85~265V DC 100~350V	Brand:	OEM ODM
Selling Units:	Single Item	Single Package Size :	17X15X13 Cm
Single Gross Weight:	0.400 Kg	Package Type:	It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.

Product Description

WHD20R-22 Temperature & Humidity Controller

● Optional functions: alarm, communication

● Temperature and humidity measuring & controlling

● DIN rail mounted

Products Description

Characteristic

Function

Accuracy
Temperature ±1℃
Humidity ±5%RH

Auxiliary power supply
AC 85-265V, DC 100-350V

Consumption
Auxiliary power supply:
Basic power consumption(≤0.8w)
Relay power consumption(each channel≤0.7w)

Installation:
DIN rail 35mm

Dimension(L*W*H):
88*90*52mm

Appearance

Wiring

Technical Parameter			Value
Measuring range	Temperature	-40.0℃～99.9℃
Measuring range		Humidity	20%RH～90%RH
Accuracy	Temperature	±1℃
Accuracy		Humidity	±5%RH
Analog output			DC 4～20mA
Set range of controlling parameter	Heating for Temperature rising	-40.0℃～40.0℃
		Blowing for temperature decreasing	0℃～99.9℃
		Humidity control	20%RH～90%RH
Contact capacity			5A/AC250V
Communication			RS485(MODBUS-RTU)
Auxiliary power supply	Working range	AC 85～265V DC 100～350V
Auxiliary power supply		Consumption	Basic power consumption(≤0.8w)+ relay power consumption(each channel≤0.7w)
Insulation resistance			≥100MΩ
Environment	Temperature	-20℃～+60℃
		Humidity	≤95%RH(No condensation)
		Altitude	≤2500 m

Technical Parameter			Value
Measuring range	Temperature	-40.0℃～99.9℃
Measuring range		Humidity	20%RH～90%RH
Accuracy	Temperature	±1℃
Accuracy		Humidity	±5%RH
Analog output			DC 4～20mA
Set range of controlling parameter	Heating for Temperature rising	-40.0℃～40.0℃
		Blowing for temperature decreasing	0℃～99.9℃
		Humidity control	20%RH～90%RH
Contact capacity			5A/AC250V
Communication			RS485(MODBUS-RTU)
Auxiliary power supply	Working range	AC 85～265V DC 100～350V
Auxiliary power supply		Consumption	Basic power consumption(≤0.8w)+ relay power consumption(each channel≤0.7w)
Insulation resistance			≥100MΩ
Environment	Temperature	-20℃～+60℃
		Humidity	≤95%RH(No condensation)
		Altitude	≤2500 m

Technical Parameter			Value
Measuring range	Temperature	-40.0℃～99.9℃
Measuring range		Humidity	20%RH～90%RH
Accuracy	Temperature	±1℃
Accuracy		Humidity	±5%RH
Analog output			DC 4～20mA
Set range of controlling parameter	Heating for Temperature rising	-40.0℃～40.0℃
		Blowing for temperature decreasing	0℃～99.9℃
		Humidity control	20%RH～90%RH
Contact capacity			5A/AC250V
Communication			RS485(MODBUS-RTU)
Auxiliary power supply	Working range	AC 85～265V DC 100～350V
Auxiliary power supply		Consumption	Basic power consumption(≤0.8w)+ relay power consumption(each channel≤0.7w)
Insulation resistance			≥100MΩ
Environment	Temperature	-20℃～+60℃
		Humidity	≤95%RH(No condensation)
		Altitude	≤2500 m

Technical Parameter			Value
Measuring range	Temperature	-40.0℃～99.9℃
Measuring range		Humidity	20%RH～90%RH
Accuracy	Temperature	±1℃
Accuracy		Humidity	±5%RH
Analog output			DC 4～20mA
Set range of controlling parameter	Heating for Temperature rising	-40.0℃～40.0℃
		Blowing for temperature decreasing	0℃～99.9℃
		Humidity control	20%RH～90%RH
Contact capacity			5A/AC250V
Communication			RS485(MODBUS-RTU)
Auxiliary power supply	Working range	AC 85～265V DC 100～350V
Auxiliary power supply		Consumption	Basic power consumption(≤0.8w)+ relay power consumption(each channel≤0.7w)
Insulation resistance			≥100MΩ
Environment	Temperature	-20℃～+60℃
		Humidity	≤95%RH(No condensation)
		Altitude	≤2500 m

Product Application

Typical connection
