2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V

Minimum Order Quantity : 1 pcs Price : USD 1110/PCS
Packaging Details : Individually packed in big carton Delivery Time : 3 days
Supply Ability : 10000/month
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AM5

Detail Information

Current Input: 8 Voltage Input: 4
Auxiliary Power Supply: AC220V, DC220V, DC110V, AC110V Communication: 2 RS485
Range: 1-120V Accuracy: ±0.5%
High Light:

RS485 Medium Voltage Protection Relays

,

Medium Voltage Protection Relays AC220V

,

voltage protector relay DC220V

Product Description

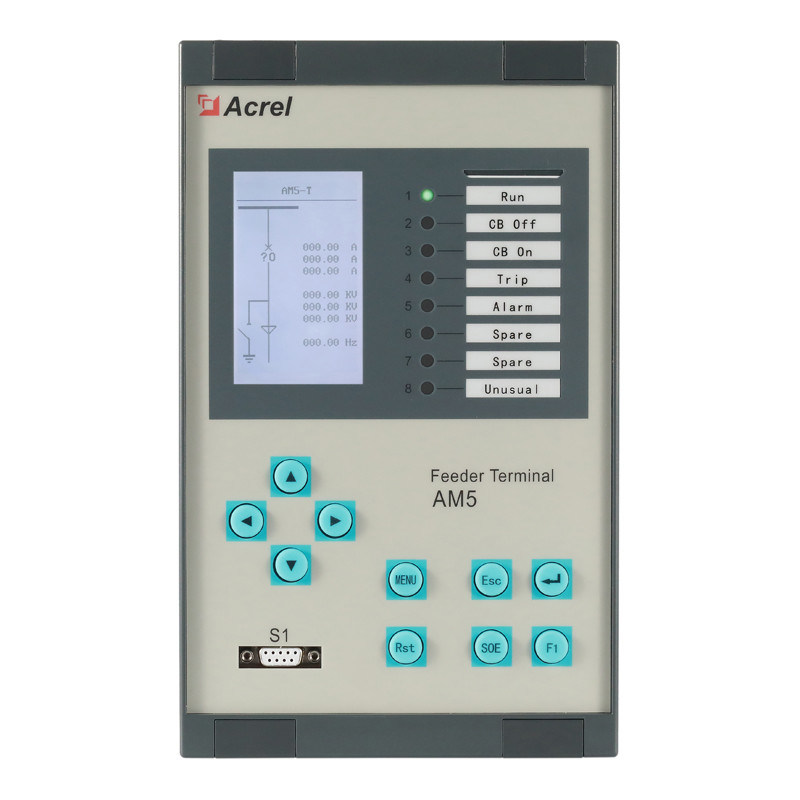

AM5

● A complete set of protection, related to the application;

● 8 current input, 4 voltage input, 16 DI, 10 DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;

● 1 RS232 for user update;

● 1 GPS for GPS timing;

● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic



LCD Display


2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 0

Function

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 1

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 2

Wiring

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 3

Typical Connection

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 4

Parameter

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 5

Quotation

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 6

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 7

2 RS485 Communication Medium Voltage Protection Relays AC220V DC220V 8
