Acrel AM5 series microcomputer protection device protect and control the user substation and is be widely used to Power
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
|
Detail Information |
|||
| High Light: | 120V Medium Voltage Protection Relays,120V voltage protector relay,Voltage Protection Relays 8 Current Input |
||
|---|---|---|---|
Product Description

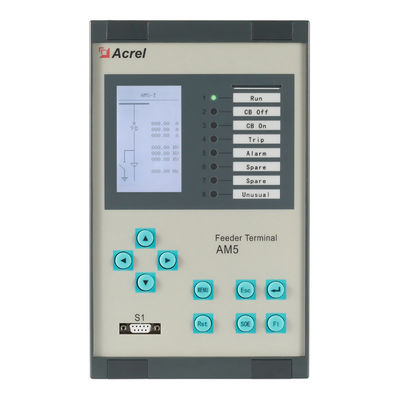

AM5 Series Protection Relay
● A complete set of protection, related to the application;
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
Characteristic
|
|
|
|
Rich protection functions |
Measurement |
Control functions |
| Feeder protection; Transformer protection; Motor protection; Capacitor protection; Voltage protection; Bus tie protection. |
RMS current values; RMS voltage values; frequency; Power factor; RMS active power. |
Remote control; Local control; Programmable switchgear interlocking |
LCD Display
Function

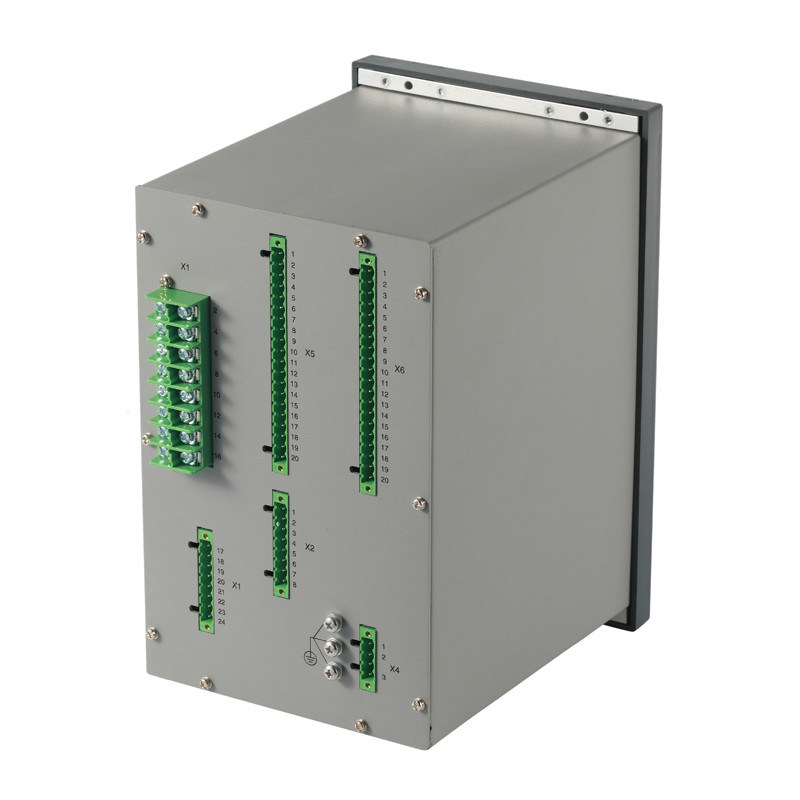

Wiring
Typical connection
Parameters
