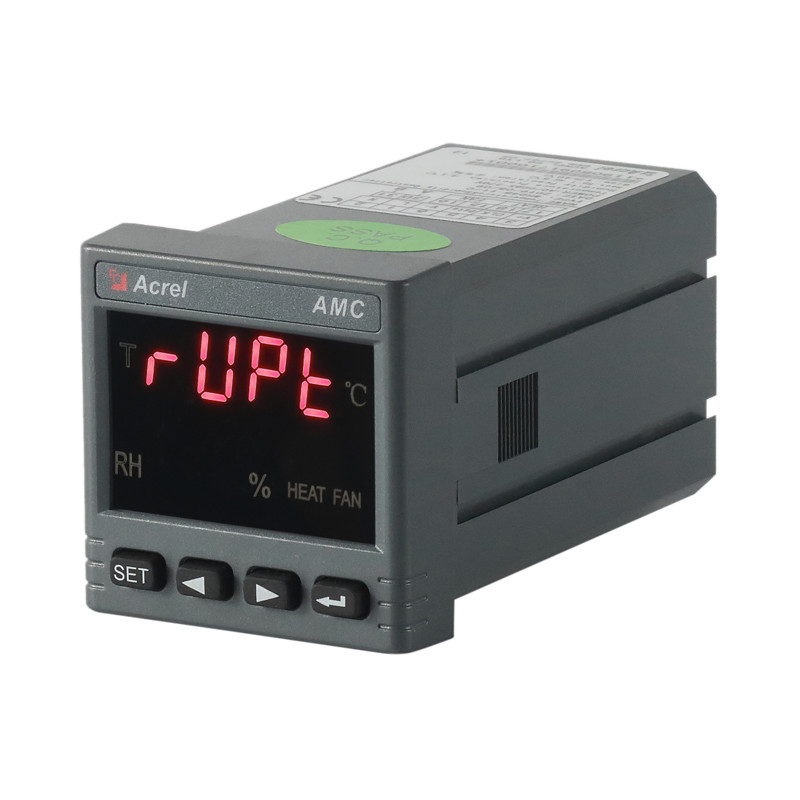

WHD48-11 Temperature & Humidity Controller

Minimum Order Quantity :	1 pcs	Price :	USD 32/PCS
Packaging Details :	Individually packed in big carton	Delivery Time :	3 days
Supply Ability :	10000/month

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	WHD48-11

Detail Information
Optional Functions:	Alarm, Communication, Analog Output	Temperature:	±1℃ Humidity ±5%RH
Auxiliary Power Supply:	AC 85-265V, DC 100-350V	Installation:	Panel Mounted
Pannel Size (L×W):	48*48mm	Communication:	Modbus-RTU
Display:	LED Display

Product Description

WHD48-11 Temperature & Humidity Controller:Optional function: communication;Temperature and humidity measuring & controlling& Panel mounted

Technical Features

Items		Features
Environment	Temperature	-40℃~125℃
	Humidity	≤95%
	atmospheric pressure	86kPa~106kPa
ATE100M/100/200 Active wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	Magnetic / bolted /Belt
	Range of temperature	-50℃~+125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
	Battery life	≥5 years
400 Passive wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	15s
	Transmission frequency	15s
	Power source	CT-powered, starting current≥5A

	Installation	alloy chip fixing
	Sensor probe	alloy bottom
	Range of temperature	-50℃~125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
ATE100P/200P Outdoor wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s-5min
	Power source	Battery
	Installation	bolted /Belt
	Range of temperature	-50℃~+150℃
	Precision	±0.5℃
	Application	Voltage switchgears
	Battery life	≥5 years
	Protection level	IP68

Writing

WHD48-11 Temperature & Humidity Controller 0

Typical Connection
