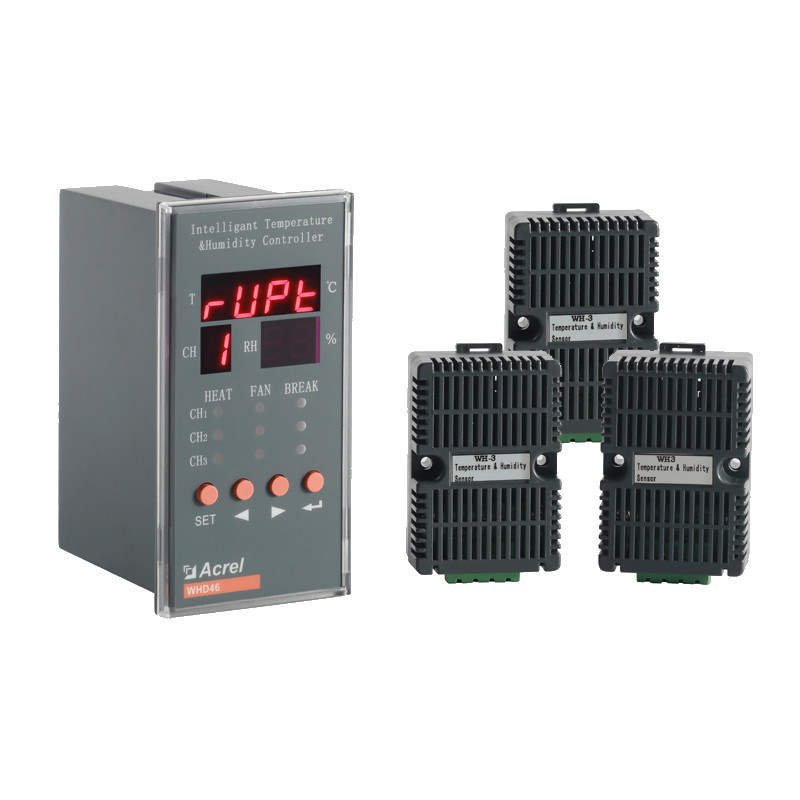

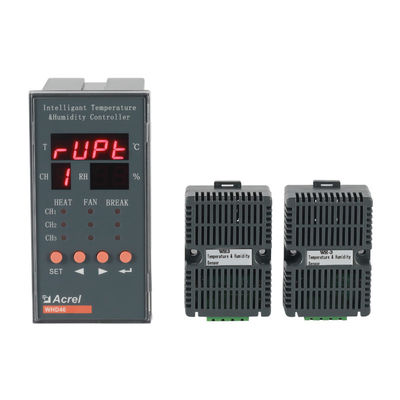

Modbus-RTU 470MHz Wireless Temperature & Humidity Controller WHD46-33

Minimum Order Quantity : 1 pcs Price : USD 130/PCS
Packaging Details : Individually packed in big carton Delivery Time : 3 days
Supply Ability : 10000/month
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: WHD46-33

Detail Information

Optional Functions: Alarm, Communication, Analog Output Temperature: ±1℃ Humidity ±5%RH
Auxiliary Power Supply: Basic Power Consumption(≤0.8w) Installation: Panel Mounted
Pannel Size (L×W): 123*63mm Communication: Modbus-RTU
Display: LED Display
Highlight:

470MHz temperature & humidity controller

,

Modbus-RTU Temperature & Humidity Controller

,

470MHz temp and humidity controller

Product Description

WHD46-33 Temperature & Humidity Controller:Optional functions: alarm, communication, analog output;Temperature and humidity measuring & controlling;Panel mounted.



Technical Features




Items Features







Environment

Temperature -40~125
Humidity 95%
atmospheric pressure 86kPa~106kPa

















ATE100M/100/200

Active wireless temperature sensor

Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Installation Magnetic / bolted /Belt
Range of temperature -50~+125
Precision ±1
Application Joints in high or low voltage switchgears
Battery life 5 years









400 Passive wireless temperature sensor

Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 15s
Transmission frequency 15s
Power source CT-powered, starting current≥5A



  Installation alloy chip fixing
Sensor probe alloy bottom
Range of temperature -50~125
Precision ±1
Application Joints in high or low voltage switchgears





















ATE100P/200P

Outdoor wireless temperature sensor

Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Installation bolted /Belt
Range of temperature -50~+150
Precision ±0.5
Application Voltage switchgears
Battery life 5 years
Protection level IP68



                                                                  Writing

Modbus-RTU 470MHz Wireless Temperature & Humidity Controller WHD46-33 0

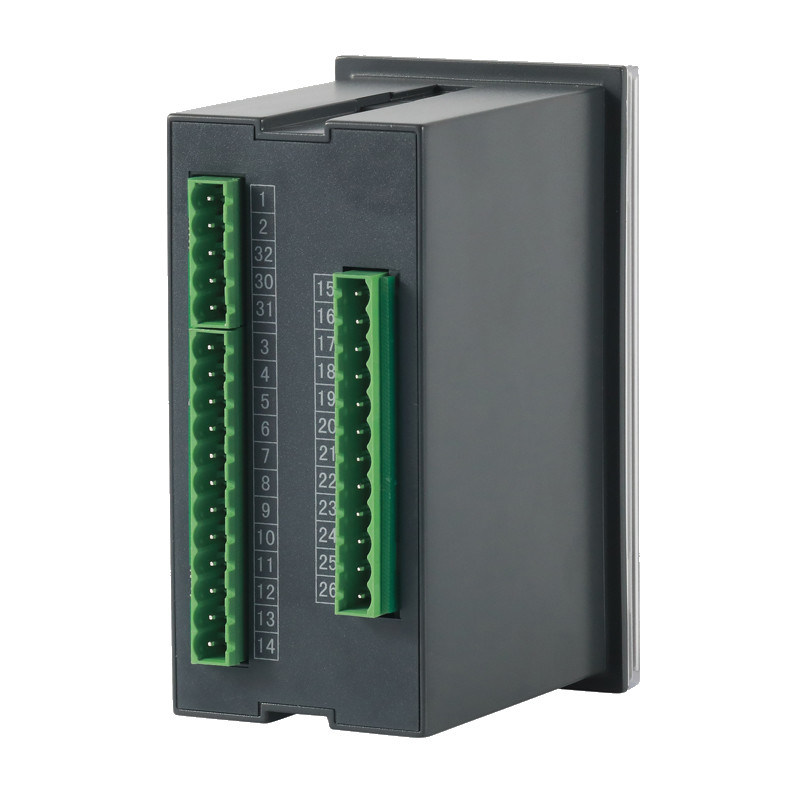

                                                                          Typical Connection



Modbus-RTU 470MHz Wireless Temperature & Humidity Controller WHD46-33 1
