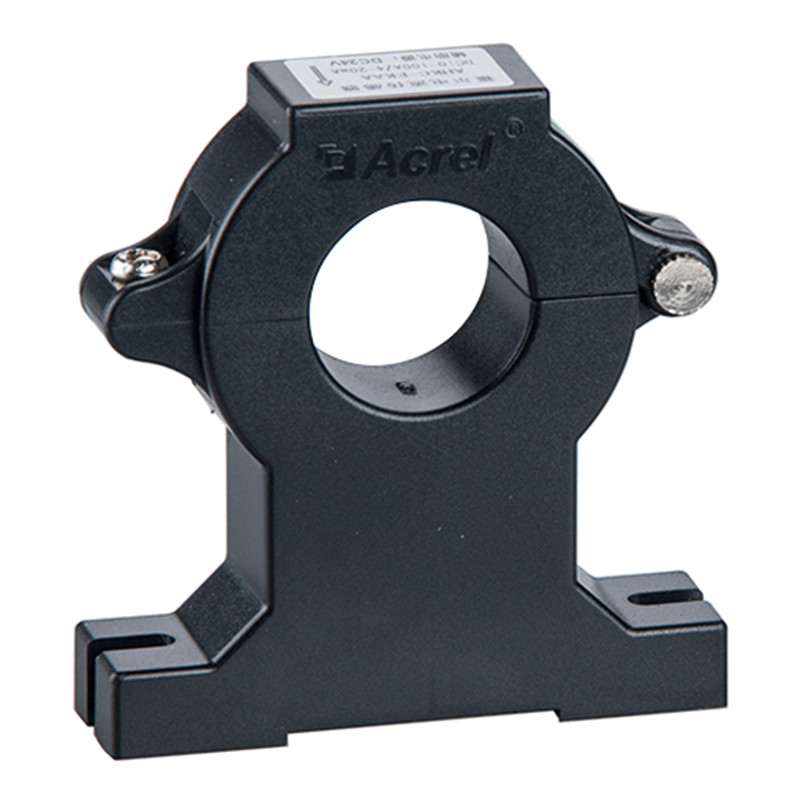

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A

Contact Now

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A

Minimum Order Quantity :	1pc	Packaging Details :	carton
Delivery Time :	5-8 work days	Payment Terms :	T/T
Supply Ability :	5000pc/day

Place of Origin:	China	Brand Name:	Acrel
Certification:	CE	Model Number:	AHKC-EKA

Detail Information
Accuracy:	Class 1	Certificate:	CE ROHS IEC
Input Current:	500A	Rated Output:	5/4V
Power Suuply:	±15V/±12V
Highlight:	500A Hall current transformer sensor , AHKC-EKA Hall current transformer sensor , Acrel Hall current transformer sensor

Product Description

AHKC-EKA hall sensor

Open-loop hall current sensor

Measuring

—AC, DC, pulse and other complex current signals

Features

—Small package

—Low power consumption

—Extended measuring range

Application

—AC variable speed drives

—Battery supplied applications

—Uninterruptible power supplies

Functions

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A 0

Specifiation

Parameters	Index
Rated Input Current	0～(50-500)A
Rated Output Voltage	±5V/±4V
Accuracy Class	1.0
Power Voltage	DC±15V(allowable fluctuation±20%)
Zero Offset Voltage	±20mV
Offset Voltage Drift	≤±1.0mV/℃
Linearity	≤0.2%FS
Response Time	≤5us
Bandwidth	0～20kHz
Isolation Voltage	3.5kV/50Hz/1min
Operating Temperature	-40℃～85℃
Storage Temperature	-40℃～85℃
Consumption	≤0.5W

Installation Method

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A 1

Wiring

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A 2

Dimension and Type

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A 3

Company

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A 4

Acrel AHKC-EKA Hall Current Transformer Sensor Effetto Hall Dc 4/5v Output Open Loop Dc Hall Effect Sensor 500A 5
