Acrel ABAT100-S Lead-acid Battery Monitoring Module For Hospitals And Data Center

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ABAT100-S

Detail Information

Relative Humidity: 5%~95% Atmospheric Pressure Intensity: 80~110kPa
Power Supply: DC 24V
High Light:

ABAT100-S Lead-acid Battery Monitoring Module

,

data center Lead-acid Battery Monitoring Module

,

hospitals Lead-acid Battery Monitoring Module

Product Description

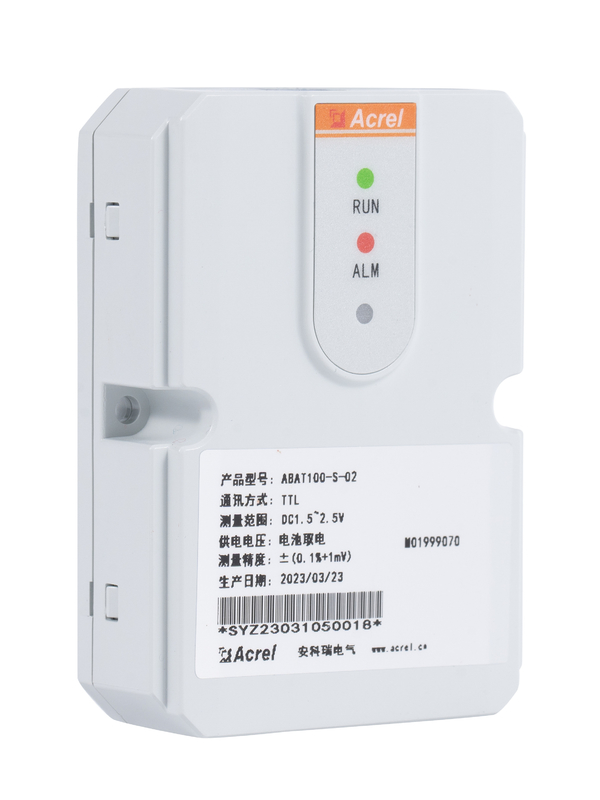

Battery Online Monitoring SystemAcrel ABAT100-S Lead-acid Battery Monitoring Module For Hospitals And Data Center 0



ABAT100-HS Collector Module


    Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.



Modules for Lead-acid Battery Monitoring System






Product Module
Model Function Description
ABAT100-HS DC24V input, one to manage a group of batteries, up to 120 batteries in a group.
ABAT100-S-02 Monitor one 2V battery, monitor battery voltage, internal resistance and negative
terminal temperature.
ABAT100-S-06 Monitor one 6V battery, monitor battery voltage, internal resistance and negative
terminal temperature.
ABAT100-S- 12 Monitor one 12V battery, monitoring battery voltage, internal resistance and negative
terminal temperature.
ABAT100-C Monitor one charge/discharge current with an ambient temperature with a maximum
current range of 1000A.







Dimension


Acrel ABAT100-S Lead-acid Battery Monitoring Module For Hospitals And Data Center 1

Technical funcitons




Function Description
Online monitoring Online monitoring 24 hours a day, one battery per module, monitoring voltage, internal resistance and negative terminal temperature;
High accuracy measurement Internal resistance measurement error as low as 1%;
Battery internal resistance test Automatic periodic measurement of the internal resistance of each battery controlled by the collector;
Low power design Manual entry into low power mode, S-module draws current from the battery down to 0.5mA;
Anti-jamming design High anti-interference design, can block the ripple interference of high power high frequency UPS;
Communication protocol MODBUS-RTU protocol;
Installation method Tie-down mounting or adhesive mounting;
Indicator light Red and green LED lights, green light as the power light, red light as the indicator light;


Technical parameters




Technical parameters Description
Working Environment

Operating temperature: -10℃~50℃;

Relative humidity: 5%~95%;

Atmospheric pressure intensity: 80~110kPa;

Monitoring Capability One S-module monitors one battery
Monitoring Scope 2V, 6V, 12V battery with capacity less than 3000AH
Measurement range and accuracy Measurement content Scope Accuracy
Single Voltage 2V, 6V, 12V ±0.1%
Single internal resistance 50~65535uΩ (Resolution) 1uΩ
Negative temperature -5℃~+105℃ ±1°C

Power requirements



Directly from the monitored battery, 2V module normal operation of the absorption current of 10mA, the maximum is not more than 13mA, 6V, 12V module normal operation of the absorption current of 5mA, the maximum is not more than 7mA, different modules absorption current consistency is very high;
Protection Measuring circuit and power circuit with two levels of protection, with reverse connection protection and opto-isolation;
Communication Interface UART port, support MODBUS protocol
Insulation withstand voltage 2000VAC
Weight 90g





Network


Network Solution 1: Touch Screen Serial Port Acquisition Network Solution:



Acrel ABAT100-S Lead-acid Battery Monitoring Module For Hospitals And Data Center 2

Network Solution 2: Acrel EMS, EIOT Platform Network Solution:



Acrel ABAT100-S Lead-acid Battery Monitoring Module For Hospitals And Data Center 3

Note:

ABAT100-HS: one manages 1 group of batteries, up to 120 batteries in one group;

ABAT100-S-02/6/12: Detects 2/6/12V battery, also detects battery voltage, internal resistance and negative temperature;

ABAT100-C: Detects 1 charge/discharge current and 1 ambient temperature, with a maximum current range of 1000A;
