Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module

Minimum Order Quantity : 1pc Packaging Details : carton
Delivery Time : 5-8 work days Payment Terms : T/T
Supply Ability : 5000pc/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ASL100-P640/30

Detail Information

Input Voltage: 85—265V AC Power Consumption: <5W
Bus Power Supply: 30V DC Auxiliary Power Supply: 30V DC
Storage Temperature: -25℃~+55℃
High Light:

KNX smart lighting power module

,

640mA KNX smart lighting power module

,

30V KNX smart lighting power module

Product Description

 Overview


    ASL100-P640/30 bus power module (hereinafter referred to as power supply) is a bus power supply based on Acrel-bus intelligent control system. All control modules on the bus are coupled with the power supply by the choker in the power supply. This product meets the enterprise standard Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. The bus is connected by the standard EIB wiring terminal and standard KNX bus. After the reset key on the module is pressed, the power supply will be reset for 20s (the bus power supply is disconnected and the auxiliary power supply normally provides the power supply during reset period) and the bus and power supply are disconnected physically. If the power supply needs to be cut off for more than 20s during use, the power line needs to be cut off. This model of module is also attached with a 30V DC auxiliary output power supply. This auxiliary power supply may power on the external power module, such as IP module and touch screen and so on.

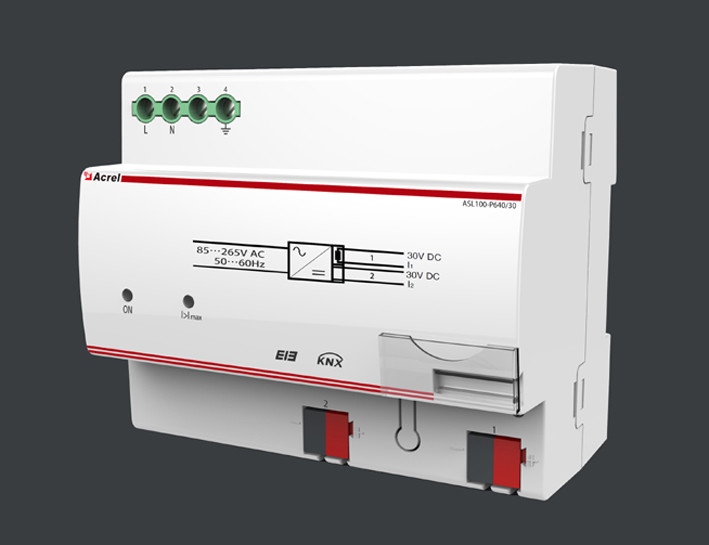

Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module 0

Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module 1Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module 2Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module 3Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module 4

Application guide



    The series of power module is mainly to power on the system. The input end of the power supply is connected with the ordinary mains circuit. The output end connects other modules with the system by KNX bus. The power module may power on other control modules on the same branch.



Acrel ASL100-P640/30 KNX Smart Lighting 640mA 30V Power Module 5
