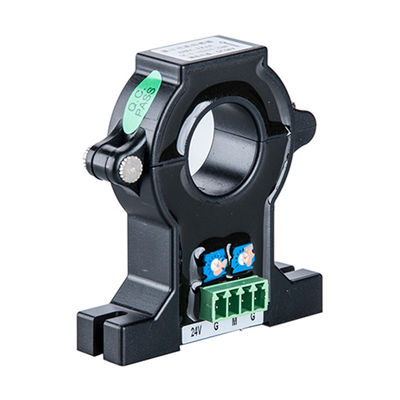

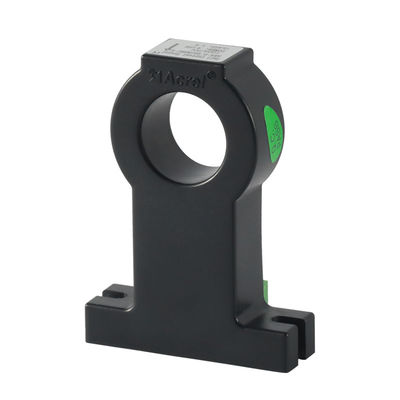

Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB

Minimum Order Quantity : 1 piece Price : $21 / Piece
Packaging Details : carton box Delivery Time : 5-7 days
Supply Ability : 6000 pieces/day
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: AHKC-EKB

Detail Information

Type: AHKC-EKB Analog Output: 5V/4V
Current Input: 0~(50-500)A Diameter: Φ20mm
Power Supply: ±15V Certification: CE
High Light:

40mm Hall Effect Current Sensor

,

hall effect ammeter AHKC-EKB

,

1000A Hall Effect Current Sensor

Product Description

Hall effect DC/AC split open-loop current sensor
Hall current sensors are mainly used to isolate and convert AC, DC, pulse and other complex signals .After signals are convertedaccording to the Hall Effect Theory,the can be directly acquired by AD, DSP, PLC, secondary instruments and other devices.Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current monitoring,battery application,inverter,solar power management,direct current cabinet ,DC motor drive,electroplating,welding,frequency converter,UPS servo control systems.They feature the quick response ,wide range of measurement,high precision ,strong overload capcity,good linearity and excellent and anti-interference performace.

Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 0



Technology parameter

Type Current input Analog output Diameter Power supply
AHKC-EKA 0~(50-500)A 5V/4V Φ20mm ±15V
AHKC-EKAA DC 0~(50-500)A 4-20mA Φ20mm 12/24V
AHKC-EKDA AC 0~(50-500)A 4-20mA Φ20mm 12/24V
AHKC-EKB 0~(200-1000)A 5V/4V Φ40mm ±15V
AHKC-EKBA DC 0~(200-1000)A 4-20mA Φ40mm 12/24V
AHKC-EKBDA AC 0~(200-1000)A 4-20mA Φ40mm 12/24V
AHKC-EKC 0~(500-1500)A 5V/4V Φ55mm ±15V
AHKC-EKCA DC 0~(500-1500)A 4-20mA Φ55mm 12/24V
AHKC-EKCDA AC 0~(500-1500)A 4-20mA Φ55mm 12/24V
AHKC-K 0~(400-2000)A 5V/4V 64*16mm ±15V
AHKC-KAA DC 0~(400-2000)A 4-20mA 64*16mm 12/24V
AHKC-KDA AC 0~(400-2000)A 4-20mA 64*16mm 12/24V
AHKC-H 0~(500-3000)A 5V/4V 82*32mm ±15V
AHKC-KA 0~(500-5000)A 5V/4V 104*36mm ±15V
AHKC-HB 0~(2000-40000)A 5V/4V 132*52mm ±15V
AHKC-HBAA DC 0~(2000-40000)A 4-20mA 132*52mm 12/24V
AHKC-HBDA AC 0~(2000-40000)A 4-20mA 132*52mm 12/24V



Certification

Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 1



Company profile

Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 2

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 3

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.



Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 4Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 5



At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

Dia 40mm 0-200-1000A Hall Effect Current Sensor Acrel AHKC-EKB 6

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
