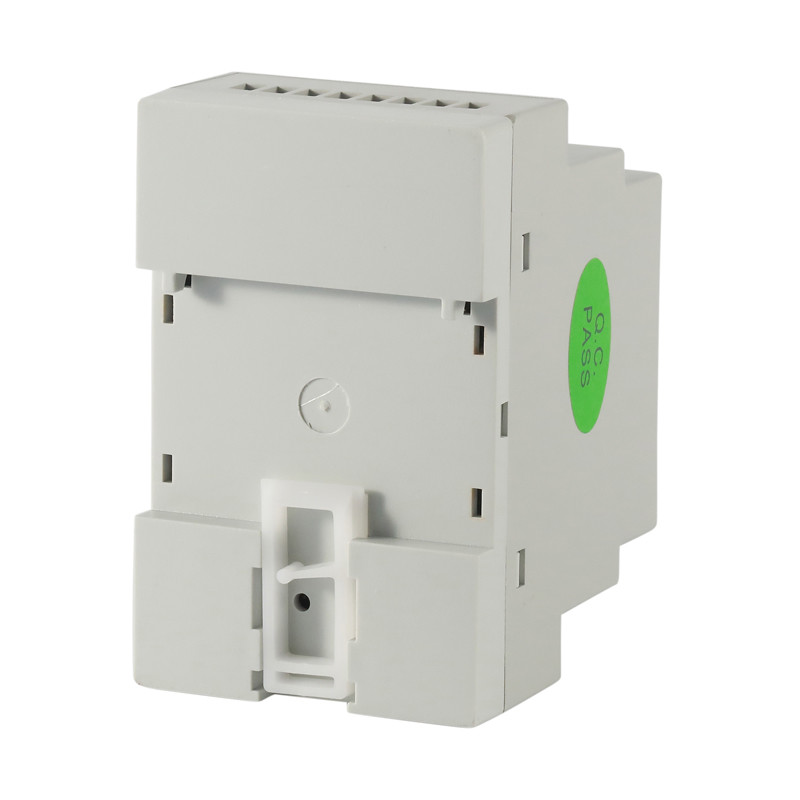

CE certified AC220V Residual Current Protection Relay ASJ10-LD1C&LD1A

Product Description

ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50/60Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.

Technical Parameter



technical parameter		ASJ10-LD1C	ASJ10-LD1A
Input	Rated residual action current I△n	0.03,0.1,0.3,0.5(A)	0.03,0.05,0.1,0.3,0.5,1,3,5,10, 30(A)
	Non-driving time of limitation △t	0.1,0.5(s)	0,0.06,0.1,0.2,0.3,0.5,0.8,1,4, 10(s
	Rated residual non-action current I△no	50%I△n	50%I△n
	performance characteristics	simple sinusoidal alternating current	simple sinusoidal alternating current and pulsating direct current
	frequency	50Hz/60Hz	50Hz/60Hz
action error		-20% ~ -10%I△n
output	output mode	one is the normal closing and the other is for the transformation	one is the normal closing or opening, and the other is for the transformation
	contact capacity	5A 250VAC 5A 30VDC	AL1:8A 250VAC 5A 30VDC AL2:6A 250VAC 5A 30VDC
	reset mode	the on-the-spot one and the long-distance one,	the on-the-spot one, the long-distance one and the automatic one
power supply	voltage range	AC110V,AC220V(permissible error±10%)	AC110V,AC220V,DC85-270V (permissible error±10%)
	power dissipation	≤5W
power frequency withstand voltage		The effective value of alternating current between the power supply, input and output: 2kV/1min
under the normal operation	temperature	operating temperature: -20℃ ~ +55℃ storage temperature: -30℃ ~ +70℃
	humidity	≤95%RH, with moisture condensation, and corrosive gas place
	height above sea level	≤2000m
	class of pollution	Grade three
	installation category	Type Ⅲ

Residual Current CT

Shape	Type	Rated Current	Ratio	Accuracy	Burden	Overload ratio
	L-45	16-100A	5/5mA	1	100	10
	L-80	100-250A
	L-100	250-400A
	L-150	400-800A
	L-200	800-1500A
	L-80*50II	16-200A	5/5mA	0.5	5	8
	L-100*50II	16-100A
	L-130*50II	100-200A
	L-150*130II	100-300A
	L-180II	100-200A
	L-200*50II	250-400A
	L-260-100II	450-800A
