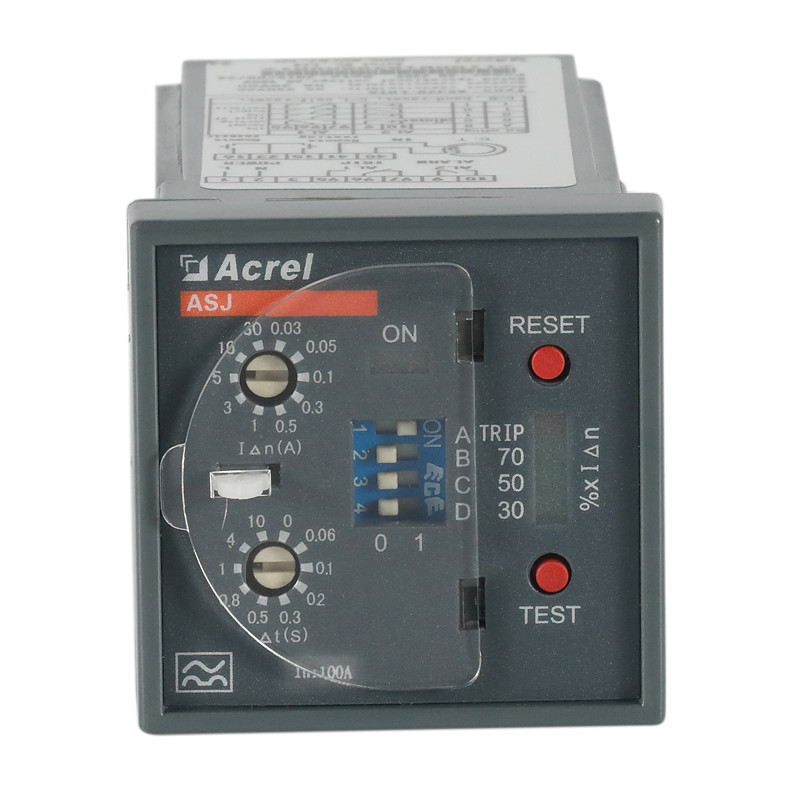

ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted
Contact Now

ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted

Minimum Order Quantity : >=1 Pieces Price : $160.00
Packaging Details : It is packed in a crash bag and then put into a cardboard box. Supply Ability : 8000 Piece/Pieces per Day
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: ASJ20-LD1A

Detail Information
Display Type: Analog And Digital Phase: Three Phase
Measuring Energy Range: AC110V, AC220V, DC85~270V Accuracy Class: 1.5
Output Voltage: AC110V, AC220V, DC85~270V Operating Temperature: -20℃ ~ +55℃
Dimensions: 48*48*45mm Display: Current Percentage
Certificate: CE ISO9001 Installation: Panel Mounted
Frequency: 50Hz±5Hz Auxiliary Power Supply: AC110V, AC220V, DC85~270V
Consumption: ≤5W Dimension: Panel Size: 48*48mm
Humidity: ≤95%RH Temperature: -20℃ ~ +55℃
Height Above Sea Level: ≤2000m Port: SHANGHAI
High Light:

ASJ20-LD1A Residual Current Relay

,

AC220V Residual Current Relay

,

AC110V residual current protection relay

Product Description

ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 0
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 2
ASJ20-LD1A Residual Current Relay
● The measurement of A-type residual current;
● The streamer display of current percentage;
● The setting of rated residual action current;
● The setting of non-driving time of limitation;
● Two-pair relay output;
● Possessing the function of on-the-spot and long-distance testing and resetting.
Function


Frequency
50Hz±5Hz


Auxiliary power supply
AC110V, AC220V, DC85~270V
(permissible error±10%)


Consumption
≤5W
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 3
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 4



Installation
Panel mounted




Dimension(L*W*H)
Panel size: 48×48mm
Cutout size: 45×45mm
Parameter

Type A
Input
Rated residual operated current
0.03,0.05,0.1,0.3,0.5,1,3,5,10,30

Limitied non-driving time
0,0.06,0.1,0.2,0.3,0.5,0.8,1,4,10

Rated non-action residual current
50%

Features
Sinusoidal AC current and pulsating DC current

Frequency
50Hz±5Hz
Tripping accuracy

-20%~-10%
Output
Output mode
1 normal changeover contact

Contact capacity
AL1:8A/250VAC,5A/30VDC
AL2:6A/250VAC,5A/30VDC

Reset mode
Local,remote,automatic
Auxiliary power supply
Voltage range
AC110V,AC220V,DC85~270V

Power consumption
≤5W
Environment
Temperature
Operation:-20℃~55℃,Storage:-30℃~70℃

Humidity
≤95%RH

Altitude
≤2000m
APPEARANCE
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 5
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 6
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 7
Typical connection
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 8
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 9
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 10
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 11
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 12
ASJ20-LD1A AC110V AC220V Residual Current Relay Panel Mounted 13
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
